REAR SUSPENSION LOCATION INDEX

< Previous Next >

2016 – MX-5 – Suspension

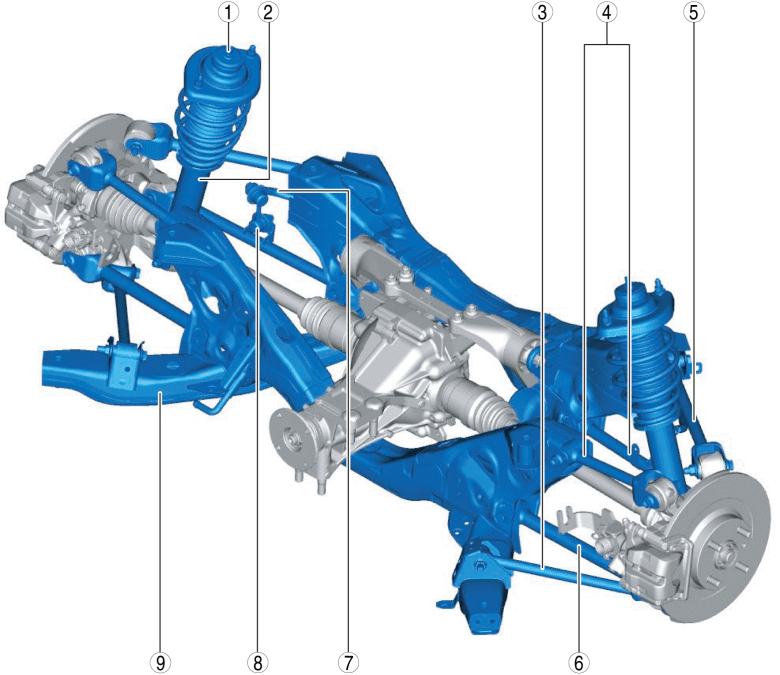

REAR SUSPENSION LOCATION INDEX

1

Rear shock absorber and coil spring

(See REAR SHOCK ABSORBER AND COIL SPRING REMOVAL/INSTALLATION.)

(See REAR SHOCK ABSORBER AND COIL SPRING DISASSEMBLY/ASSEMBLY.)

2

Rear shock absorber

(See REAR SHOCK ABSORBER INSPECTION.)

(See REAR SHOCK ABSORBER DISPOSAL.)

3

Trailing link

(See TRAILING LINK REMOVAL/INSTALLATION.)

4

Lateral link

(See UPPER LATERAL LINK REMOVAL/INSTALLATION.)

(See LOWER LATERAL LINK REMOVAL/INSTALLATION.)

5

Leading link

(See LEADING LINK REMOVAL/INSTALLATION.)

6

Lower link

(See LOWER LINK REMOVAL/INSTALLATION.)

7

Rear stabilizer

(See REAR STABILIZER REMOVAL/INSTALLATION.)

8

Rear stabilizer control link

(See REAR STABILIZER CONTROL LINK INSPECTION.)

9

Rear crossmember

(See REAR CROSSMEMBER REMOVAL/INSTALLATION.)
