Diagnosis With GDS
| 1. |
It will be able to diagnose defects of power
door lock with GDS quickly. GDS can operates actuator forcefully,
input/output value monitoring and self
diagnosis. |
| 2. |
Select model and
"BCM". |
| 3. |
Select the "SJB" to
check. |
| 4. |

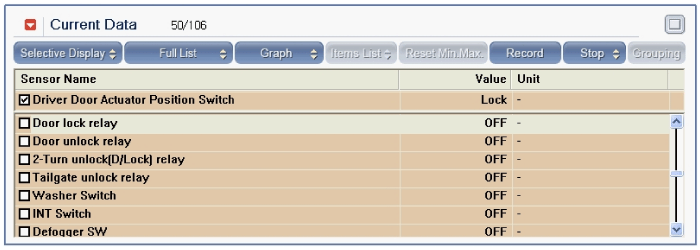

Select "Current data", if you will check
current data of power door lock system. It provides input/output
status of SJB.
|
| 5. |

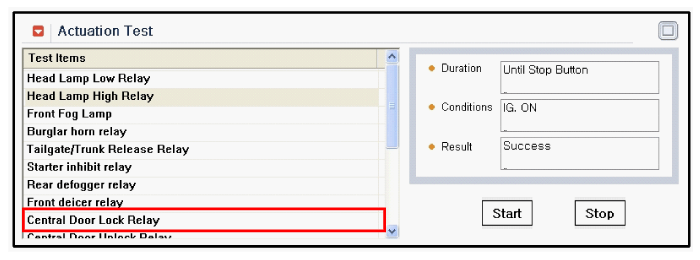

To check the power door lock operation
manually, select "Actuation test".
|
| 1. |
Disconnect the negative(-) battery
terminal. |
| 2. |
Remove the front door trim.
(Refer to the BD group - "Front
door") |
| 3. |
Remove the grip holder cover, after loosening
the screw (4EA).
|
| 4. |
Remove the grip holder cover
bracket.
|
| 5. |
Remover the power window switch (A), after
loosening the bolts (4EA).
|
| 1. |
Install the power window
switch. |
| 2. |
Install the grip holder
cover. |
| 3. |
Connect the connector and install the front
door trim
panel. | |
