VELOSTER(FS) >2013 > G 1.6 T-GDI > Body Electrical System > Power Door Mirrors > Power Outside Mirror Switch>Repair procedures
Inspection
1.
Disconnect the power door mirror switch module connector from front door trim panel.
2.

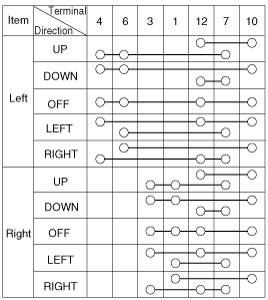

Check for the continuity between terminals of power door mirror switch according to the table.
[Power Mirror Switch]
Removal
1.
Disconnect the negative(-) battery terminal.
2.
Remove the front door trim panel.
(Refer to the BD group - "Front door")
3.
Disconnect the power door mirror switch connector(A) from the door trim panel.
4.
Remove the power door mirror switch(A), after loosening the screw (3EA).
Be careful not to damage the hook when removing the switch module.
Installation
1.
Install the driver power window switch and connectors.
2.
Install the front door trim panel.
