| 1. |
Disconnect the negative (-) battery
terminal. |
| 2. |
Remove the front bumper.
(Refer to the BD group - "Front
bumper") |
| 3. |
Loosening the head lamp mounting bolts (3EA)
and disconnect the head lamp connector (B).
Then, remove the head lamp assembly
(A).
| -
|
Take care not to scratch the head
lamp lens or
fender. | |
|
Take care that holding clip (A) is not
to be damaged. |
|
| 4. |
Remove the dust caps from the head lamp
assembly after turning in the counter clock-wise
direction.
|
Headlamp(low) bulb
| 1. |
Turn off the lamp
power. |
| 2. |
Disconnect the
connector. |
| 3. |
Remove the dust
cover. |
| 4. |
Disconnect the
connector. |
| 5. |
Remove the head lamp low bulb.
|
| 1. |
Turn off the lamp
power. |
| 2. |
Remove the dust
cover. |
| 3. |
Disconnect the
connector. |
| 4. |
Remove the head lamp low bulb.
|
| 1. |
Turn off the lamp
power. |
| 2. |
Remove the socket and bulb(A) of turn signal
lamp.
|
| 1. |
Turn the bulb (A) counterclockwise, after
connecting the connector and the bulb.
|
| 2. |
Install the dust
cover. |
| 3. |
Install the head lamp
assembly. |
| Head Lamp Aiming
Instructions |
The head lamps should be
aimed with the proper beam-setting equipment, and in accordance with the
equipment manufacturer's instructions.
|
If there are any regulations pertinent to the
aiming of head lamps in the area where the vehicle is to be used,
adjust so as to meet those
requirements. |
Alternately turn the
adjusting gear to adjust the head lamp aiming. If beam-setting equipment
is not available, proceed as follows:
| 1. |
Inflate the tires to the specified pressure
and remove any loads from the vehicle except the driver, spare tire,
and tools. |
| 2. |
The vehicle should be placed on a flat
floor. |
| 3. |
Draw vertical lines (Vertical lines passing
through respective head lamp centers) on the
screen. |
| 4. |
With the head lamp and battery in normal
condition, aim the head lamps so the brightest portion falls on the
vertical lines.
A : Vertical(Low)
|
Front Fog Lamp Aiming
The front fog lamps
should be aimed as the same manner of the head lamps aiming.
With the front fog lamps
and battery normal condition, aim the front fog lamps by turning the
adjusting screw (A) with a driver.
[Turbo GDI]

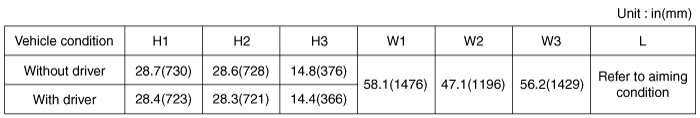

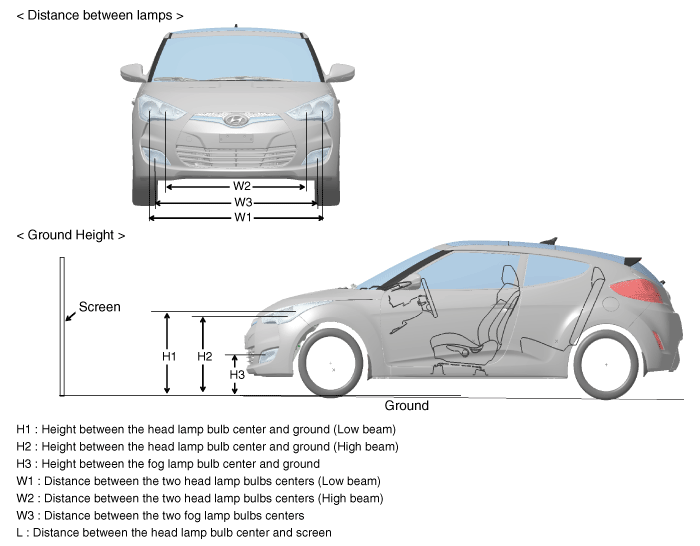

Head Lamp And Fog Lamp Aiming Point

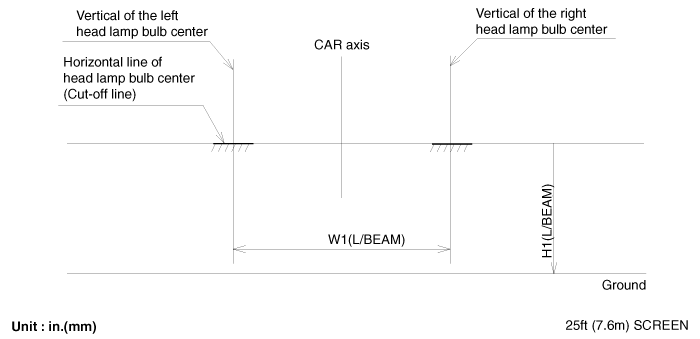

| 1. |
Head Lamp (Low beam)
| A. |
Turn the low beam on without driver
aboard. |
| B. |
The cut-off line should be projected in
the cut-off line shown in the
picture. |
| C. |
If head lamp leveling device is
equipped, adjust the head lamp leveling device switch with 0
positions. |
|

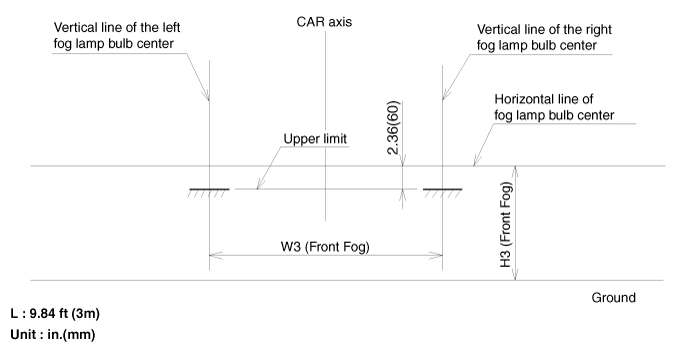

| 2. |
Turn the front fog lamp on without the driver
aboard.
The cut-off line should be projected in the
allowable range (shaded region)
|

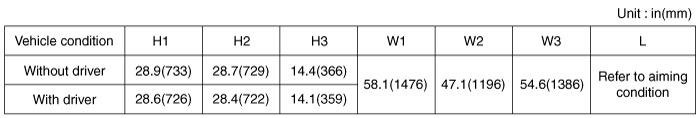

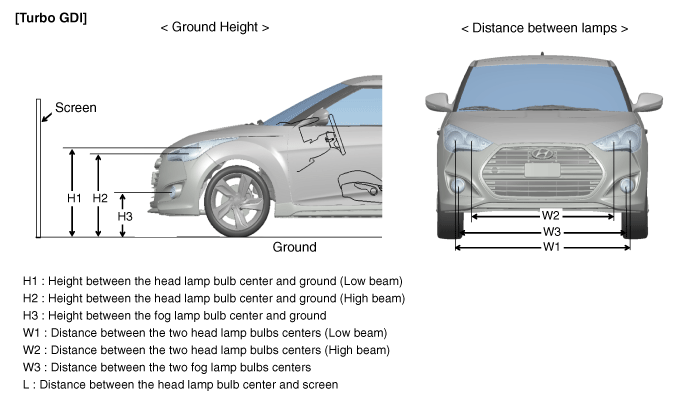

Head Lamp And Fog Lamp Aiming Point [Turbo
GDI]
[Turbo GDI]
| 1. |
Head Lamp (Low beam)
| A. |
Turn the low beam on without driver
aboard. |
| B. |
The cut-off line should be projected in
the cut-off line shown in the
picture. |
| C. |
If head lamp leveling device is
equipped, adjust the head lamp leveling device switch with 0
positions. |
[Turbo GDI]
|
| 2. |
Turn the front fog lamp on without the driver
aboard.
The cut-off line should be projected in the
allowable range (shaded region)
[Turbo GDI]
|
