Inspection

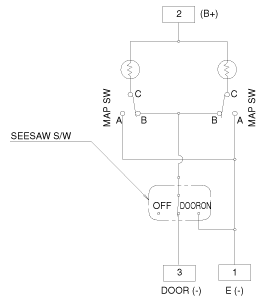

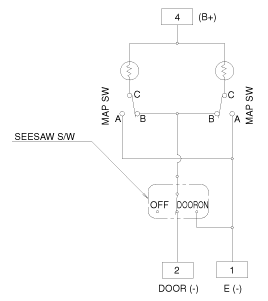

1.	Remove the overhead console lamp (map lamp) assembly then check for continuity between terminals. If the continuity is not as specified, replace the map lamp switch. [Overhead console] [Map lamp]

Removal

1.	Disconnect the negative (-) battery terminal.

2.	Loosen 2 screws holding the overhead console (A). Remove the overhead console (A) after loosening 2 screws.

3.	Disconnect the connectors (A) of sunroof switch and lamp switch then remove the overhead console lamp assembly.

4.	If necessary to replace the bulb, replace the bulb after removing the overhead console lens (A).

Installation

1.	Install the overhead console lamp.

2.	Connect the sunroof switch connector and lamp connector.

3.	Install the overhead console assembly.
