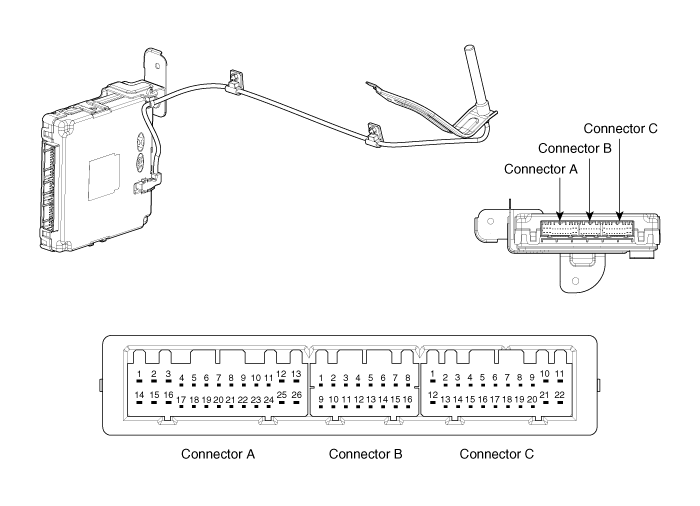

Connector Pin Information
No.
|
Connector A(26
pins)
|
No.
|
Connector B(16
pins)
|
No.
|
Connector C(22
pins)
|
1
|
Battery
power load
|
1
|
CAN
L
|
1
|
Start/Stop button switch ILL
|
2
|
-
|
2
|
CAN
H
|
2
|
Immobilizer IND
|
3
|
Power
ground 1
|
3
|
-
|
3
|
Start/Stop button LED OFF
|
4
|
IGN
1
|
4
|
Stop lamp
fuse
|
4
|
Interior
antenna #2 power
|
5
|
IGN 1
relay
|
5
|
Brake
switch
|
5
|
Interior
antenna #1 power
|
6
|
ACC
|
6
|
Immobilizer antenna power
|
6
|
-
|
7
|
IGN
2
|
7
|
-
|
7
|
-
|
8
|
Start/Stop button switch 2
|
8
|
Wheel
speed
|
8
|
Trunk
antenna power
|
9
|
-
|
9
|
Driver
toggle button
|
9
|
Bumper
antenna power
|
10
|
-
|
10
|
-
|
10
|
Assistant
antenna power
|
11
|
ESCL
COM
|
11
|
External
buzzer
|
11
|
Driver
antenna power
|
12
|
CAN
H
|
12
|
P
position / Clutch switch
|
12
|
SSB LED
IGN
|
13
|
CAN
L
|
13
|
Start
feedback
|
13
|
SSB
illumination power
|
14
|
Battery
CPU
|
14
|
Immobilizer antenna ground
|
14
|
-
|
15
|
-
|
15
|
Diagnostic - K
|
15
|
Interior
antenna #2 ground
|
16
|
Power
ground 2
|
16
|
Start/Stop button switch LED
|
16
|
Interior
antenna #1 ground
|
17
|
Starter
relay
|
|
|
17
|
-
|
18
|
IGN 2
relay
|
18
|
-
|
19
|
ACC
relay
|
19
|
Trunk
antenna ground
|
20
|
-
|
20
|
Bumper
antenna ground
|
21
|
Trunk lid
switch
|
21
|
Assistant
antenna ground
|
22
|
-
|
22
|
Driver
antenna ground
|
23
|
RPM
|
|
|
24
|
EMS
COM
|
25
|
Start/Stop button switch 1
|
26
|
Assistant
toggle button
|
