Burglar Alarm System
The burglar alarm system
is armed automatically after the doors, hood, and trunk lid are closed and
locked with keyless transmitter.
The system is set off
when any of these things occur:
| • |
A door is unlocked without using the
transmitter & key. |
| • |
The trunk lid is opened without using the
key. |
| • |
The engine starter circuit and battery circuit
are bypassed by breaking the ignition
switch. |
When the system is set
off, the alarm (horn) sounds and the hazard lamp flash for about two
minutes or until the system is disarmed by unlocking the
transmitter.
For the system to arm,
the ignition switch must be off and the key removed. Then, the body
control module must receive signals that the doors, hood, and trunk lid
are closed and locked. When everything is closed and locked, none of the
control unit inputs are grounded.
The door switches, hood
switch and trunk lid switch are all close and lock the doors with the
remote transmitter and then the system arms after 30 second.
If anything is opened or
improperly unlocked after the system is armed, the body control module
gets a ground signal from that switch, and the system is set
off.
If one of the switches
is misadjusted or there is a short in the system, the system will not arm.
As long as the body control module continues to get a ground signal, it
thinks the vehicle is not closed or locked and will not arm.
The receiver is
integrated in the body control module.
Keyless Entry System
The burglar alarm system
is integrated with the keyless entry system. The keyless entry system
allows you to lock and unlock the vehicle with the remote transmitter.
When you push the lock button, all doors lock. When you push the unlock
button all doors unlock.
The room lamp, if its
switch is in the center position, will come on when you press the unlock
button. If you do not open a door, the light will go off in about 30
seconds, the doors will automatically relock, and the burglar alarm system
will rearm. If you relock the doors with the remote transmitter within 30
seconds, the light will go off immediately.
You cannot lock or
unlock the doors with the remote transmitter if the key is in the ignition
switch.
The system will signal
you when the doors lock and unlock by flashing the hazard lamp once when
they lock, and twice when they unlock.

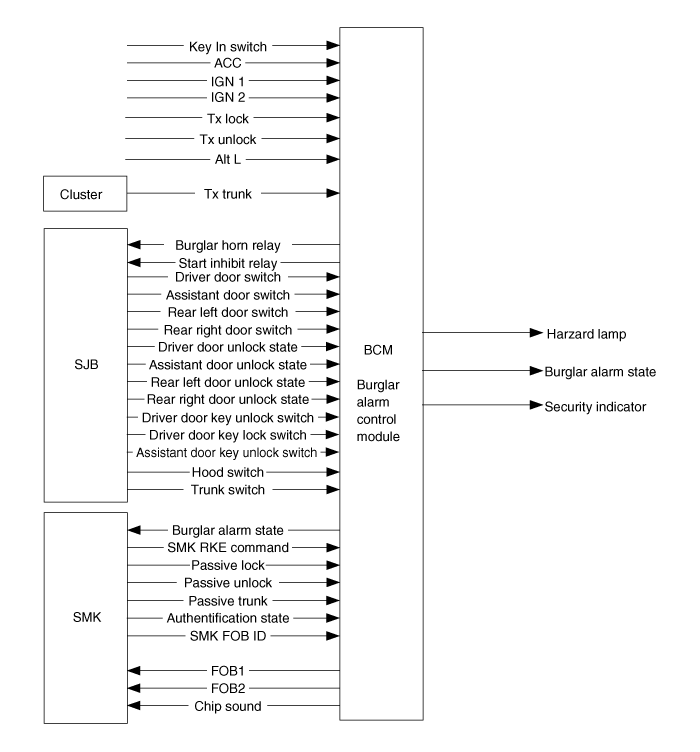

Overview Description
| 1. |
According to various input signals there are a
variety of changing conditions that perform many
functions.
Condition 1 : At least one entrance
opened
(4Door Not Close=ON) or (Trunk Open Switch=ON)
or (Hood Switch=ON)
Condition 2 : All doors closed, but HOOD or
TRUNK open
(4Door Not Close=OFF) & (Trunk Open
Switch=ON) or (Hood Switch=ON)
Condition 3 : Close the 4DOOR with DOOR lock
(4Doors Locked) & (4Door Not Close
ON→OFF)
Condition 2 & 3 : Close the 4DOOR with
lock with HOOD or TRUNK OPEN
(4Doors Locked) & (4Door Not Close ON→OFF)
& (Trunk Open Switch=ON) or (Hood Switch=ON)
All entrances closed : 4DOOR Switch & HOOD
Switch & TRUNK OPEN Switch is CLOSE
LOCK : Lock command by Tx
UNLOCK : Unlock command by Tx
LOCK : Driver key lock switch is
ON
UNLOCK : Driver key unlock switch is
ON
TRUNK : TRUNK OPEN signal or TRUNK or RKE
TRUNK command by Tx
IGN KEY ON : KEY IN Switch = ON & IGN1 =
ON & IGN2 =ON
IGN KEY OUT : KEY IN Switch = OFF & IGN1 =
OFF & IGN2 =OFF
KEY IN : KEY IN Switch = ON
KEY IN 1 : KEY IN Switch = ON or IGN1 = ON or
IGN2 = ON
H1 : Hazard Time is one-time(lock) 1sec
on
H2 : Hazard Time is two-time(unlock)
0.5sec/on, 0.5sec/off
AUTO LOCK TIMER1 : 30sec
AUTO LOCK TIMER2 : 30sec
ARM WAIT TIMER : 30sec
TRUNK TIMER : 30sec
TRUNK MARK : Default value is
clear
LOCK CONFIRM CHECK : 0.2 ~
5sec |
Security Indicator Control
| 1. |
Key In switch ON or ACC ON1 ON or IGN1 ON or
IGN2 ON or FOB IN is LED OFF. |
| 2. |
IGN KEY OUT entry in the ARM WAIT mode, the
Infinite On control of the ARM WAIT mode, the other will control the
BLINKING. |
| 3. |
BLINKING cycle is 2.3s.(ON during 0.3s / OFF
during 2.0s)
T1 : 0.3sec, T2 :
2sec |
DISARM
Condition 1
State
|
Description
|
Initial
Condition
|
ALARM
|
Event
|
| -
|
IGN KEY ON during 30sec or ALT ”L”
on | |
NON SMK SPEC
:
| -
|
Any door open & TX
unlock |
| -
|
TX Lock & Lock confirm
Failed | |
SMK SPEC
:
| -
|
Any door open & RKE CMD
Unlock/ Passive Access Unlock
1 |
| -
|
RKE CMD Lock/ Passive Access Lock 1
& Lock confirm
Failed | |
Mechanical Key
Option Enable :
| -
|
lock & Lock confirm
Failed | |
Action
|
The state goes
to DISARM state
| -
|
Horn Relay, Hazard Relay, Start inhibit
OFF |
| -
|
TX Unlock, RKE CMD Unlock, Passive
Access Unlock 1
-> Unlock relay on for
0.5sec
-> Hazard relay on
(TWICE) | |
Lock failure : Lock
attempts within 5 seconds after the Unlock door maintain at least one if
RKE CMD = Unlock : RKE
CMD = Unlock & Fob1 or Unlock & Fob2
RKE CMD = Lock : RKE CMD
= Lock & Fob1 or Lock & Fob2
T1 : 0.5s, T2 : 0.5s
+-0.1s
Condition 2
State
|
Description
|
Initial
Condition
|
DISARM state & (IGN KEY OUT)
& Any Door open
|
Event
|
NON SMK spec
:
| -
|
Any door open & TX
UNLOCK | |
SMK spec
:
| -
|
Any door open & RKE CMD=2 / Passive
Access Unlock 1 / SMKRKECMD=3 |
|
Action
|
No state
change
| -
|
TX UNLOCK, RKE CMD UNLOCK, Passive
Access Unlock 1
-> Hazard relay for 0.5s
ON/OFF(twice) | |
Condition 3
State
|
Description
|
Initial
Condition
|
ARM WAIT state
|
Event
|
| -
|
Any door open or Hood switch OPEN or
Trunk switch OPEN |
|
SMK spec
:
C_Authstate=2
|
Mechanical Key
OPTION Enable :
UNLOCK
|
Action
|
The state goes
to DISARM
state
|
Condition 4
State
|
Description
|
Initial
Condition
|
AUTOLOCK TIMER1
STATE
|
Event
|
| -
|
Any door open or Hood switch OPEN or
Trunk switch OPEN |
| -
|
AUTO LOCK & Lock confirmation
failure | |
|
NON SMK spec :
| -
|
AUTO LOCK & Lock confirmation
failure | |
|
SMK spec
:
| -
|
RKE CMD LOCK / Passive Access Lock
1& Lock confirmation
failure |
|
Mechanical Key
option Enable :
| -
|
LOCK & Lock confirmation
failure | |
Action
|
The state goes
to DISARM
state
|
Condition 5
State
|
Description
|
Initial
Condition
|
AUTOLOCK TIMER2
STATE
|
Event
|
| -
|
AUTO LOCK & Lock confirmation
failure |
| -
|
Hood switch Open and Memory Hood was
Close |
| -
|
Trunk switch Open and Memory Trunk was
Close | |
NON SMK spec
:
| -
|
TX LOCK& Lock confirmation
failure | |
SMK spec
:
| -
|
RKE CMD=LOCK/ Passive Access Lock 1&
Lock confirmation failure |
|
Mechanical Key
option Enable :
LOCK & Lock
confirmation failure
|
Action
|
The state goes
to DISARM
state
|
Condition 6
State
|
Description
|
Initial
Condition
|
ARM STATE
|
Event
|
|
SMK spec
:
|
Mechanical Key
option Enable :
|
Action
|
The state goes
to DISARM
state
|
Condition 7
State
|
Description
|
Initial
Condition
|
REARM state
|
Event
|
| -
|
IGN KEY ON during 30sec or ALT”L”
on | |
NON SMK spec
:
| -
|
TX LOCK& Lock confirmation
failure |
|
SMK spec
:
| -
|
RKE CMD LOCK / Passive Access Lock 1
& Lock confirmation
failure |
|
Mechanical Key
option Enable :
| -
|
LOCK & Lock confirmation
failure | |
Action
|
The state goes
to DISARM state
Start inhibit OFF
|
Condition 8
State
|
Description
|
Initial
Condition
|
PREARM state
|
Event
|
| -
|
All entrance closed & Any Door is
unlocked |
| -
|
Any Door open & Tx
Unlock | |
NON SMK
:
| -
|
Any door open & TX
UNLOCK | |
SMK
:
| -
|
Any door open & RKE CMD UNLOCK/
Passive Access Unlock 1 | |
Mechanical Key
option Enable :
|
Action
|
The state goes
to DISARM state
| -
|
TX UNLOCK, RKE CMD UNLOCK, Passive
Access Unlock 1
-> Hazard relay for 0.5s
ON/OFF(twice) | |
Condition 9
State
|
Description
|
Initial
Condition
|
ARMHOLD
|
Event
|
|
SMK
:
|
Mechanical Key
option Enable :
|
Action
|
The state goes
to DISARM
state
|
ARM
Condition 1
State
|
Description
|
Initial
Condition
|
ARM state
|
Event
|
NON SMK
:
|
NON SMK
:
| -
|
RKE CMD LOCK / Passive Access Lock
1 | |
Action
|
No state
change
Hazard relay 1Time
on(1sec)
|
Condition 2
State
|
Description
|
Initial
Condition
|
ARM WAIT state
|
Event
|
| -
|
After ARM WAIT TIMER
finished | |
Action
|
The state goes
to ARM state
|
Condition 3
State
|
Description
|
Initial
Condition
|
ARMHOLD state
|
Event
|
Trunk close
for at least Trunk Release Time Out(default 30sec) in ARMWAIT
state
|
Action
|
The state goes
to ARM state
|
ALARM
Condition 1
State
|
Description
|
Initial
Condition
|
ARM state
|
Event
|
Any door open
or Hood switch open or Trunk switch open
|
Action
|
The state goes
to ALARM state
| -
|
Engine Start Inhibit is
ON |
| -
|
The horn is ON one time for 27sec(±2sec)
and OFF two times for
10sec(±1sec) |
| -
|
The hazard is ON also (During Horn is
ON) | |
T1 : 27s(±2sec), T2 :
10s(±2sec), T3 : 0.5s ± 0.1sec
Note : Horn Output :
Period : 1sec(Can be calibrated Horn Period), 50% Duty
Condition 2
State
|
Description
|
Initial
Condition
|
REARM state
|
Event
|
Any door open
or Hood switch OPEN or Trunk switch OPEN
|
Action
|
The state goes
to ALARM state
The horn is ON one time for 27sec(±2sec) and OFF two
times for 10sec(±1sec)
The hazard is ON
also (During Horn is ON)
|
Condition 3
State
|
Description
|
Initial
Condition
|
ARMHOLD state
|
Event
|
Any door open
or Hood switch OPEN
|
Action
|
The state goes
to
ALARM state
The
horn is ON one time for 27sec(±2sec) and OFF two times for
10sec(±1sec)
The hazard is ON also
(During Horn is ON).
|
ARM WAIT MODE
Condition 1
State
|
Description
|
Initial
Condition
|
ARMWAIT
state
|
Event
|
NON SMK
:
|
NON SMK
:
| -
|
RKE CMD LOCK / Passive Access Lock
1 | |
Action
|
No state
change
Hazard relay 1Time
on(1sec)
|
Condition 2
State
|
Description
|
Initial
Condition
|
DISARM state & IGN KEY OUT
& All entrances closed(DOORS, HOOD and TRUNK)
|
Event
|
NON SMK
:
| -
|
Tx Lock & locked
confirmed | |
SMK spec
:
| -
|
RKE CMD LOCK / Passive Access Lock 1
& locked confirmed | |
Mechanical Key
option Enable :
| -
|
LOCK & locked
confirmed |
| -
|
DOOR LOCK state : Any door open → All
door closed | |
Action
|
| -
|
The state goes to ARMWAIT State |
| -
|
Hazard relay 1Time
on(1sec) | |
Condition 3
State
|
Description
|
Initial
Condition
|
ALARM state & All entrances
closed(DOORS, HOOD and TRUNK)
|
Event
|
NON SMK
:
| -
|
Tx Lock & locked
confirmed | |
SMK spec
:
| -
|
RKE CMD LOCK / Passive Access Lock 1
& locked confirmed | |
Mechanical Key
option Enable :
| -
|
LOCK & locked
confirmed | |
Action
|
| -
|
The state goes to ARMWAIT State |
| -
|
Horn relay, Start inhibit relay
OFF |
| -
|
Hazard relay 1Time on(1sec) (LOCK :
Except) |
|
Condition 4
State
|
Description
|
Initial
Condition
|
AUTOLOCK TIMER1
state
|
Event
|
AUTOLOCK &
locked confirmed
|
NON SMK
:
| -
|
Tx Lock & locked
confirmed | |
SMK
:
| -
|
RKE CMD LOCK / Passive Access Lock 1
& locked confirmed | |
Mechanical Key
option Enable :
LOCK & locked
confirmed
|
Action
|
| -
|
The state goes to ARMWAIT State |
| -
|
Hazard relay 1Time
on(1sec) |
|
Condition 5
State
|
Description
|
Initial
Condition
|
PREARM state
|
Event
|
All door
closed and (Trunk switch CLOSE & TRUNK MARK CLEAR) & Hood
switch CLOSE & DOOR LOCK
|
Action
|
| -
|
The state goes to ARMWAIT State |
| -
|
Hazard relay 1Time
on(1sec) |
|
Condition 6
State
|
Description
|
Initial
Condition
|
REARM state
|
Event
|
NON SMK
:
| -
|
TX LOCK & locked
confirmed | |
SMK
:
| -
|
RKE CMD LOCK/ Passive Access Lock 1
& locked confirmed | |
Mechanical Key
option Enable :
| -
|
LOCK & locked
confirmed | |
Action
|
| -
|
The state goes to ARMWAIT State |
| -
|
Hazard relay 1Time on(1sec) (LOCK :
Except) |
| -
|
Start Inhibit relay
OFF |
|
*1 : Lock : Driver Door
Unlock Switch or Assist Door Unlock Switch or Rear Right Driver Unlock
Switch = LOCK
Unlock : Driver Door
Unlock Switch or Assist Door Unlock Switch or Rear Right Driver Unlock
Switch = UNLOCK
REARM MODE
Condition 1
State
|
Description
|
Initial
Condition
|
ALARM state
|
Event
|
All doors
closed and trunk switch close, hood switch close state, and ALARM
PATTERN finished
|
Action
|
The state goes
to REARM
state
|
AUTO LOCK TIMER1 MODE
Condition 1
State
|
Description
|
Initial
Condition
|
ARM state
|
Event
|
NON SMK
:
|
SMK
:
| -
|
RKE CMD UNLOCK / Passive Access Unlock
1 | |
Action
|
| -
|
The state goes to AUTO LOCK TIMER1
state |
| -
|
Hazard relay Twice on(0.5s ON/0.5s
OFF) | |
Condition 2
State
|
Description
|
Initial
Condition
|
AUTO-LOCK TIMER1 state
|
Event
|
AUTOLOCK
TIMER1 finished
|
NON SMK
:
|
SMK
:
| -
|
RKE CMD UNLOCK / Passive Access Unlock
1 | |
Action
|
No change
state
|
CASE1: AUTO
LOCK TIMER1 Finished
AUTOLOCK
|
CASE2: TX
UNLOCK, RKE CMD UNLOCK, Passive Access Unlock 1
Hazard relay Twice on(0.5s ON/0.5s OFF)
Restart AUTO LOCK
TIMER1
|
Condition 3
State
|
Description
|
Initial
Condition
|
ARM WAIT state
|
Event
|
NON SMK
:
TX UNLOCK
|
SMK
:
RKE CMD UNLOCK / Passive Access Unlock
1
|
Action
|
| -
|
The state goes to AUTO LOCK TIMER1
state |
| -
|
Hazard relay Twice on(0.5s ON/0.5s
OFF) | |
Condition 4
State
|
Description
|
Initial
Condition
|
DISARM state & All entrances
closed(DOORS, Hood SW & Trunk SW) & IGN KEY
OUT
|
Event
|
NON SMK
:
TX UNLOCK
|
SMK
:
RKE CMD UNLOCK/ Passive Access Unlock
1
|
Action
|
| -
|
The state goes to AUTO LOCK
TIMER1
state |
| -
|
Hazard relay Twice on(0.5s ON/0.5s
OFF) | |
Condition 5
State
|
Description
|
Initial
Condition
|
ALARM state & All door closed
and Trunk switch CLOSE, Hood switch CLOSE
|
Event
|
NON SMK
:
TX UNLOCK
|
SMK
:
RKE CMD UNLOCK / Passive Access Unlock
1
|
Action
|
| -
|
The state goes to AUTO LOCK TIMER1
state |
| -
|
Hazard relay Twice on(0.5s ON/0.5s
OFF) |
| -
|
Start inhibit relay off /Horn relay
off | |
Condition 6
State
|
Description
|
Initial
Condition
|
REARM state
|
Event
|
NON SMK
:
TX UNLOCK
|
SMK
:
RKE CMD UNLOCK/ Passive Access Unlock
1
|
Action
|
The state goes
to AUTO LOCK
TIMER1 state
| -
|
Hazard relay Twice on(0.5s ON/0.5s
OFF) |
| -
|
Start inhibit relay off
| |
AUTO LOCK TIMER2 MODE
Condition 1
State
|
Description
|
Initial
Condition
|
AUTO-LOCK TIMER2
state
|
Event
|
Finished AUTO
LOCK TIMER2
|
NON SMK
:
TX UNLOCK
|
SMK
:
RKE CMD UNLOCK/ Passive Access Unlock
1
|
Action
|
No change
state
|
CASE1: AUTO
LOCK TIMER2 finished
AUTOLOCK
|
CASE2: TX
UNLOCK, RKE CMD UNLOCK, Passive Access Unlock 1
| -
|
Hazard relay Twice on(0.5s ON/0.5s
OFF) | |
Condition 2
State
|
Description
|
Initial
Condition
|
DISARM state & IGN KEY OUT
& (Trunk switch OPEN or Hood switch OPEN) state
|
Event
|
NON SMK
:
TX UNLOCK
|
SMK
:
RKE CMD UNLOCK/ Passive Access Unlock
1
|
Action
|
| -
|
The state goes to AUTOLOCKTIMER2
state |
| -
|
Hazard relay Twice on(0.5s ON/0.5s
OFF) |
|
Condition 3
State
|
Description
|
Initial
Condition
|
ALARM state & All door
closed & (Trunk switch OPEN or Hood switch OPEN)
state
|
Event
|
NON SMK
:
TX UNLOCK
|
SMK
:
RKE CMD UNLOCK / Passive Access Unlock
1
|
Action
|
| -
|
The state goes to AUTO LOCK TIMER2
state |
| -
|
Horn relay, Start inhibit relay
OFF |
| -
|
Hazard relay Twice on(0.5s ON/0.5s
OFF) |
|
Condition 4
State
|
Description
|
Initial
Condition
|
PREARM state & All door
closed & (Trunk switch OPEN or Hood switch
OPEN)state
|
Event
|
NON SMK
:
TX UNLOCK
|
SMK
:
RKE CMD UNLOCK / Passive Access Unlock
1
|
Action
|
| -
|
The state goes to AUTO LOCK TIMER2
state |
| -
|
Hazard relay Twice on(0.5s ON/0.5s
OFF) |
|
Condition 5
State
|
Description
|
Initial
Condition
|
ARMHOLD state
|
Event
|
NON SMK
:
TX UNLOCK
|
SMK
:
RKE CMD UNLOCK / Passive Access Unlock
1
|
Action
|
| -
|
The state goes to AUTO LOCK
TIMER2
state |
| -
|
Hazard relay Twice on(0.5s ON/0.5s OFF)
|
|
PREARM MODE
Condition 1
State
|
Description
|
Initial
Condition
|
AUTO-LOCK TIMER2
state
|
Event
|
AUTO LOCK
& locked confirmed
|
NON SMK
:
TX LOCK& locked
confirmed
|
SMK
:
RKE CMD LOCK/ Passive Access Lock 1
& locked confirmed
|
Mechanical Key
option Enable :
LOCK & locked
confirmed
|
Action
|
The state goes
to PREARM
state
|
Condition 2
State
|
Description
|
Initial
Condition
|
DISARM state & IGN KEY
OUT
|
Event
|
NON SMK
:
| -
|
Any door open or Hood SW OPEN or Trunk
SW OPEN state & locked
confirmed | |
SMK
:
| -
|
Any door open or Hood SW OPEN or Trunk
SW OPEN state RKE CMD LOCK / Passive Access Lock 1 &
locked confirmed | |
Mechanical Key
option Enable :
LOCK & locked
confirmed
ALL DOOR LOCK state (Any door
open → All doors closed) and (Trunk switch OPEN or Hood switch
OPEN)
|
Action
|
The state goes
to PREARM
state
|
Condition 3
State
|
Description
|
Initial
Condition
|
ALARM state
& IGN KEY OUT and(Any door open or Hood SW OPEN or Trunk SW
OPEN)
|
Event
|
NON SMK
:
TX LOCK& locked
confirmed
|
SMK
:
RKE CMD LOCK/ Passive Access Lock 1
& locked confirmed
|
Mechanical Key
option Enable :
LOCK & locked
confirmed
|
Action
|
The state goes
to PREARM state
Horn relay, Hazard relay,
Start INH relay => OFF
|
Condition 4
State
|
Description
|
Initial
Condition
|
ARMHOLD state
|
Event
|
NON SMK
:
TX LOCK & locked
confirmed
|
SMK
:
RKE CMD LOCK/ Passive Access Lock
1& locked confirmed
|
Mechanical Key
option Enable :
LOCK locked
confirmed
|
Action
|
The state goes
to PREARM
state
|
Condition 5
State
|
Description
|
Initial
Condition
|
ARMWAIT state
|
Event
|
NON SMK
:
TX TRUNK
|
SMK
:
RKE TRUNK 1
|
Action
|
The state goes
to PREARM state
Start TRUNK TIMER
TRUNK MARK
Set
|
Condition 6
State
|
Description
|
Initial
Condition
|
PREARM
state
|
Event
|
Trunk switch
OPEN
Trunk TimeR expired(Trunk Release
Time Out: 30s)
|
Action
|
No state
change
CASE Trunk switch OPEN
:
Stop to Trunk Timer.
TRUNK MARK Clear
CASE
TRUNK TIMER expired :
TRUNK MARK
Clear
|
ARMHOLD MODE
Condition 1
State
|
Description
|
Initial
Condition
|
ARM state
|
Event
|
NON SMK
:
TX Trunk
|
SMK
:
RKE Trunk 1
|
Action
|
The state goes
to ARMHOLD
state
|
RESET
| 1. |
In case of taking the BATTERY out during the
ALARM state
Condition
State
|
Description
|
Initial Condition
|
ALARM, REARM state
|
Event
|
Taking
the battery out
|
Action
|
Start
INH relay ON and Horn relay twice
The state goes to ALARM mode
|
|
| 2. |
In case of taking the BATTERY out during
ARM
Condition
State
|
Description
|
Initial Condition
|
ARM
state
|
Event
|
Taking
the battery out
|
Action
|
The
state goes to ARM mode
|
|
| 3. |
In case of taking the BATTERY out during the
ARMHOLD state
Condition
State
|
Description
|
Initial Condition
|
Except ARM, ALARM,
REARM,ARMHOLD state
|
Event
|
Taking
the battery out
|
Action
|
The
state goes to DISARM
mode
|
|
