VELOSTER(FS) >2013 > G 1.6 T-GDI > Body Electrical System > BCM (Body Control Module) > IPM (Intelligent integrated Platform Module)>Components and Components Location

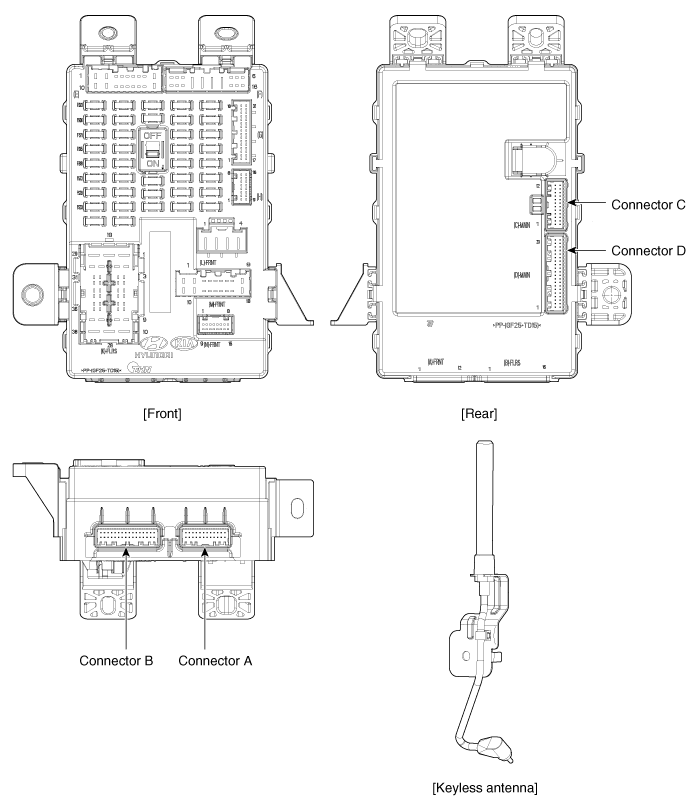

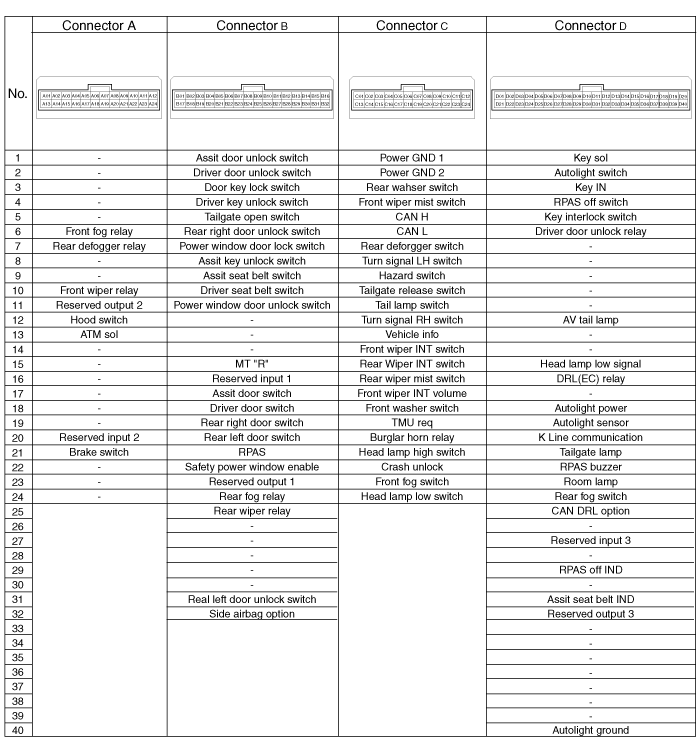

Components

※ Internal Buzzer : Rear parking assist system buzzer

Signal Characteristics
Symbol
 Name
L_
 Logic input
A_
 Analog input
O_
 Logic output
C_
 CAN signal
S_
 Seiral communication
P_
 PW signal and frequency signal
D_
 Data signal
V_
 Power and ground supply
b_
 Internal variable
B_
 Body

BCM (IPM) Inputs Description and Characteristics
Function
 Input Name
 State
 Voltage level
Low level
 High level
Analog input
 V_B+
 8V ~ 16V
 　
 　
A_AutoLightSnsr
 0V ~ 5V
 　
 　
A_FrontWiperIntVolume
 0V ~ 5V
 　
 　
A_IGN 1
 OPEN/ON
 4V or less
 7V or more
A_IGN2
 OPEN/ON
 4V or less
 7V or more
A_ACC
 OPEN/ON
 7.1V or less
 7.8V or more
Logic input
 L_FrontWiperMistSW
 OPEN/ON
 2.5V or less
 8V or more
L_FrontWiperIntSW
 OPEN/ON
 2.5V or less
 8V or more
L_FrontWasherSW
 OPEN/ON
 2.5V or less
 8V or more
L_RearWiperOnSW
 OPEN/ON
 2.5V or less
 8V or more
L_RearWiperIntT
 OPEN/ON
 2.5V or less
 8V or more
L_RearWasherSW
 OPEN/ON
 2.5V or less
 8V or more
L_BrakeSW
 OPEN/ON
 2.5V or less
 8V or more
L_KeyIn
 OPEN/ON
 2.5V  or less
 6V or more
L_AutoLightSW
 OPEN/ON
 2.5V  or less
 6V or more
L_DRVDRSW
 OPEN/ON
 2.5V  or less
 6V or more
L_ASTDRSW
 OPEN/ON
 2.5V  or less
 6V or more
L_RLDRSW(Reserved)
 OPEN/ON
 2.5V  or less
 6V or more
L_RRDRSW
 OPEN/ON
 2.5V  or less
 6V or more
L_DRVDRUnlockSW
 OPEN/ON
 2.5V  or less
 6V or more
L_ASTDRUnlockSW
 OPEN/ON
 2.5V  or less
 6V or more
L_RLDRUnlockSW(Reserved)
 OPEN/ON
 2.5V  or less
 6V or more
L_RRDRUnlockSW
 OPEN/ON
 2.5V  or less
 6V or more
L_TailgateOpenSW
 OPEN/ON
 2.5V  or less
 6V or more
L_HoodSW
 OPEN/ON
 2.5V  or less
 6V or more
L_DoorKeyLockSW
 OPEN/ON
 2.5V  or less
 6V or more
L_DRVKeyUnlockSW
 OPEN/ON
 2.5V  or less
 6V or more
L_ASTKeyUnlockSW
 OPEN/ON
 2.5V  or less
 6V or more
L_TailgateReleaseSW
 OPEN/ON
 2.5V  or less
 6V or more
L_PwdwDoorLockSW
 OPEN/ON
 2.5V  or less
 6V or more
L_PwdwDoorUnlockSW
 OPEN/ON
 2.5V  or less
 6V or more
L_RRDefogger SW
 OPEN/ON
 2.5V  or less
 6V or more
L_RPASOffSW
 OPEN/ON
 2.5V  or less
 6V or more
Logic input
 L_KeyInterlockSW
 OPEN/ON
 2.5V  or less
 6V or more
L_DRVSeatBeltSW
 OPEN/ON
 2.5V  or less
 6V or more
L_ASTSeatBeltSW
 OPEN/ON
 2.5V  or less
 6V or more
L_HazardSW
 OPEN/ON
 2.5V  or less
 6V or more
L_TsigLHSW
 OPEN/ON
 2.5V  or less
 6V or more
L_TsigRHSW
 OPEN/ON
 2.5V  or less
 6V or more
L_TailSW
 OPEN/ON
 2.5V  or less
 6V or more
L_HeadLampLowSW
 OPEN/ON
 2.5V  or less
 6V or more
L_HeadLampHighSW
 OPEN/ON
 2.5V  or less
 6V or more
L_FronFSogSW
 OPEN/ON
 2.5V  or less
 6V or more
L_RearFogSW
 OPEN/ON
 2.5V  or less
 6V or more
L_CANDRLOptSW
 OPEN/ON
 2.5V  or less
 6V or more
L_SAB OPT
 OPEN/ON
 2.5V  or less
 6V or more
L_MTSRx
 OPEN/ON
 2.5V  or less
 6V or more
L_MT "R"
 OPEN/ON
 2.5V  or less
 8V or more
L_ModeSW
 OPEN/ON
 2.5V  or less
 6V or more
L_ReservedInput1
 OPEN/ON
 2.5V  or less
 6V or more
L_ReservedInput2
 OPEN/ON
 2.5V  or less
 6V or more
L_ReservedInput3
 OPEN/ON
 2.5V  or less
 6V or more
Frequency
 P_CrashUnlock
 　
 PWM(Low)
 VBD
Communication
 LIN_RPAS
 　
 LIN
 IGN
K_LINE
 　
 DIAG
 B+
CAN_H
 　
 Low CAN
 B+
CAN_L
 　
 Low CAN
 B+

BCM (IPM) Outputs Description and Characteristics
Pin description
 State
 capacity
 Power source
O_FrontWiperRLY
 FRONT WIPER RELAY output
 DC 12V 200mA(inductive load)
 IGN2
O_RearWiperRLY
 REAR WIPER RELAY output
 DC 12V 200mA(inductive load)
 IGN2
O_PwdwRLY
 POWER WINDOW RELAY output
 DC 12V 200mA(inductive load)
 B+
O_SafetyPwdwEnable
 SAFETY POWER WINDOW ENABLE output
 -
 B+
O_CtrDRLockRLY
 C/DOOR LOCK RELAY output
 DC 12V 200mA(inductive load)
 B+
O_CtrDRUnlockRLY
 C/DOOR UNLOCK RELAY output
 DC 12V 200mA(inductive load)
 B+
O_DRVDRUnlockRLY
 DRIVER DOOR UNLOCK RELAY output
 DC 12V 200mA(inductive load)
 B+
O_TailgateReleaseRLY
 TRUNK RELEASE RELAYoutput
 DC 12V 200mA(inductive load)
 B+
O_StartInhibitionRLY
 O_START INHIBIT RELAY output
 DC 12V 200mA(inductive load)
 ST
O_BurglarHornRLY
 BURGLAR ALARM HORN RELAY output
 DC 12V 200mA(inductive load)
 B+
O_MTSTx (DoorUnlockSignal)
 MTSTx output
 -
 B+
O_ASTSeatBeltIND
 ASSIST SEAT BELT INDICATOR output
 -
 IGN1
O_RPASOffIND
 RPAS operating INDICATOR output
 -
 IGN1
O_RPASBuzzer
 EXTERNAL BUZZER output
 　
 IGN1
O_TurnSigFL
 LH Front Turn Signal Lampoutput
 DC 12V 27W LAMP
 B+
O_TurnSigRL
 LH Rear Turn Signal Lampoutput
 DC 12V 27W LAMP
 B+
O_TurnSigFR
 RH Front Turn Signal Lampoutput
 DC 12V 27W LAMP
 B+
O_TurnSigRR
 RH Rear Turn Signal Lampoutput
 DC 12V 27W LAMP
 B+
O_AVTail
 AV TAIL output signal
 　
 B+
O_RearFogRLY
 REAR FOG LAMP RELAY output
 DC 12V 200mA(inductive load)
 B+
O_TailLampRLY
 TAIL LAMP LAMP RELAY output
 DC 12V 200mA(inductive load)
 B+
O_FronFSogRLY
 FRONT FOG LAMP RELAY output
 DC 12V 200mA(inductive load)
 B+
O_HeadLampLowLH
 HEAD LAMP LOW LH output
 DC 12V 55W LAMP
 B+
O_HeadLampLowRH
 HEAD LAMP LOW RH output
 DC 12V 55W LAMP
 B+
O_HeadLampHighLH
 HEAD LAMP HIGH LH output
 DC 12V 55W LAMP
 B+
O_HeadLampHighRH
 HEAD LAMP HIGH RH output
 DC 12V 55W LAMP
 B+
O_HeadLampLowSignal
 HEAD LAMP LOW Signal output to MF SW
 　
 　
O_DRL(EC)RLY
 DRL RLY(Europe) output
 DC 12V 200mA(inductive load)
 B+
O_RoomLamp
 ROOM LAMP output
 DC 12V 30W LAMP(10W*3)
 B+
O_RRDefoggerRLY
 REAR DEFOGGER RELAY output
 DC 12V 200mA(inductive load)
 B+
O_KeySol
 KEY INTERLOCK SOLENOID output
 DC 12V 1A (inductive load)
 B+
O_ATMSol
 ATM SHIFT SOLENOID output
 DC 12V 200mA (inductive load)
 B+
O_SoundRelayCtrl
 Sound Relay control
 DC 12V 200mA(inductive load)
 B+
O_ReservedOutput1
 Reserved output
 　
 　
O_ReservedOutput2
 Reserved output
 　
 　
O_ReservedOutput3
 Reserved output
 　
 　
O_IOD_RLY
 DART CURRNET AUTO SHUT OFF IPS ON/OFF control
 DC 12V 200mA(inductive load)
 B+

BCM (IPM) Input Signal Specification
No
 Signal Name
 Description
 ON/OFF
LEVEL(V)
 Remark
A01
 L_B+
 ON = BAT
 9V~16V
 　
A02
 L_IGN1
 ON = BAT
(IGN KEY=ON or Start Position)
 7V or more/4V or less
 　
A03
 L_IGN2
 ON = BAT
(IGN KEY=ON
 7V or more/4V or less
 　
A04
 L_Brake SW
 ON = GND
 7V or more/4V or less
 　
A05
 L_MIST SW
 ON = BAT
 7V or more/4V or less
 　
A06
 L_CRASH UNLOCK INPUT(PWM)
 -
 -
 PWM
A07
 L_HeadLamp LOW SW
 ON = GND
 2V or less/OPEN
(Reference value:4V or more)
 　
A08
 L_HeadLamp HIGH SW
 ON = GND
 2V or less/OPEN
(Reference value:4V or more)
 　
A13
 L_ACC
 ON = BAT
 7V or more/4V or less
 　
A16
 L_INH'R' SW
 ON = BAT
 7V or more/4V or less
 　
A17
 L_WASHER SW
 ON = BAT
 7V or more/4V or less
 　
A18
  L_WIPER INT SW
 ON = BAT
 7V or more/4V or less
 　
A20
 A_Wiper Int Volume
 -
 -
 A/D
A21
 L_KEY IN SW
 ON = GND
 2V or less/OPEN
(Reference value:4V or more)
 　
A22
 L_TAIL LAMP SW
 ON = GND
 2V or less/OPEN
(Reference value:4V or more)
 　
A23
 L_KEY INTER LOCK SW
 ON = OPEN
 2V or less/OPEN
(Reference value:4V or more)
 　
B01
 LIN (RPAS)
 -
 -
 Communication
B03
 L_FRONT FOG Lamp SW
 ON = GND
 2V or less/OPEN
(Reference value:4V or more)
 　
B04
 L_SIDE AIR OPT
 ON = GND
 2V or less/OPEN
(Reference value:4V or more)
 　
B08
 CAN(HIGH)
 -
 　
 Communication
B09
 CAN(LOW)
 -
 　
 Communication
B11
 A_AUTO LIGHT SIGNAL
 -
 -
 A/D
B13
 L_AUTO LIGHT SW
 ON = GND
 2V or less/OPEN
(Reference value:4V or more)
 　
B14
 DIAGNOSIS (K-Line)
 -
 -
 Communication
B15
 L_DEFOGGER SW
 ON = GND
 2V or less/OPEN
(Reference value:4V or more)
