VELOSTER(FS) >2013 > G 1.6 T-GDI > Steering System > Electric Power Steering>Schematic Diagrams

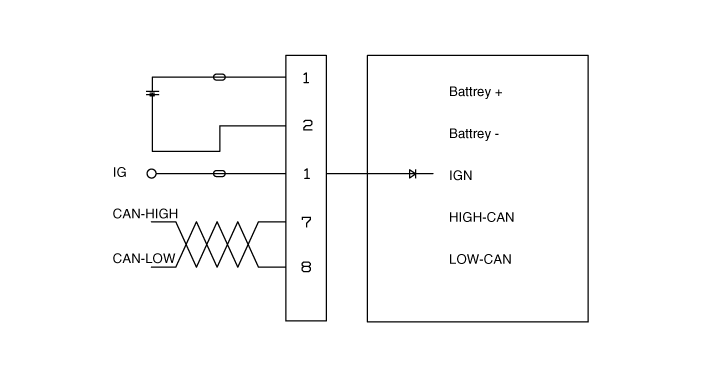

MDPS Circuit Diagram

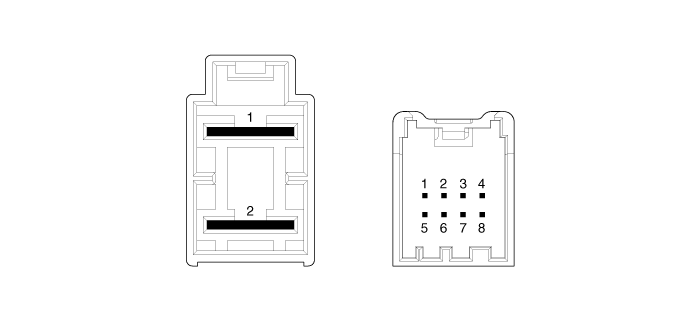

Harness Connector
Type
Pin NO
Description
Battery
1
Battery +
2
Battery -
VSS
1
IGN
2
-
3
-
4
-
5
-
6
7
High CAN
8
Low CAN
