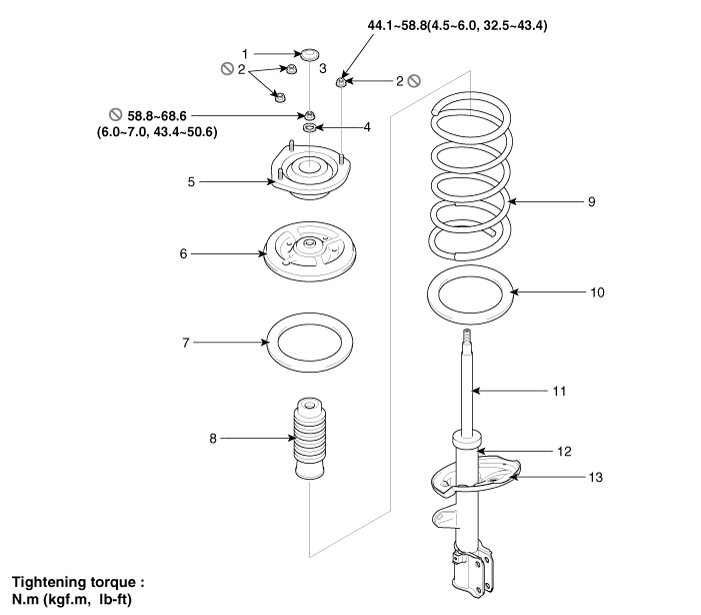

Components

• Tighten under unladen condition • Fix the strut rod end and tighten the nut

1. Dust cover 2. Upper mounting nuts 3. Self-lock nut 4. Space 5. Insulator 6. Spring upper seat 7. Spring upper pad

7. Spring upper pad 8. Dust cover & Bumper rubber 9. Coil spring 10. Spring lower pad 11. Piston rod 12. Strut assembly 13. Spring lower seat
