Hub Nut Tightening Sequence
Tighten the hub nuts as
follows.
Tightening torque
:
88.3 ~ 107.9N.m (9.0 ~ 11.0kgf.m, 65.1 ~
79.6lb-ft)
|
|
When using an impact gun, final tightening
torque should be checked using a torque
wrench. |
Wheel Runout
| 1. |
Jack up the vehicle and support it with jack
stands. |
| 2. |

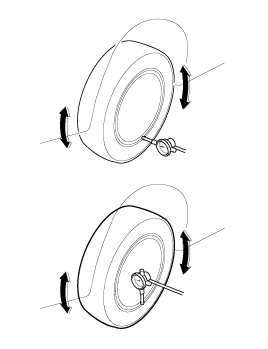

Measure the wheel runout with a dial indicator
as illustated. |
| 3. |
Replace the wheel if the wheel runout exceeds
the limit.
Type
|
Radius
direction
|
Axis
direction
|
Aluminium
|
0.3mm (0.01in)
|
0.3mm (0.01in)
|
|
