VELOSTER(FS) >2013 > G 1.6 T-GDI > Suspension System > Tire Pressure Monitoring System>Schematic Diagrams

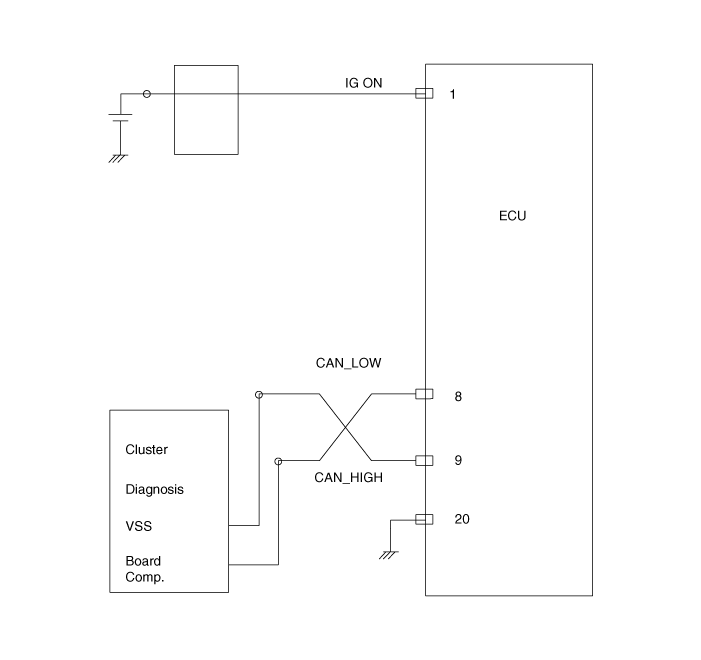

System circuit diagram

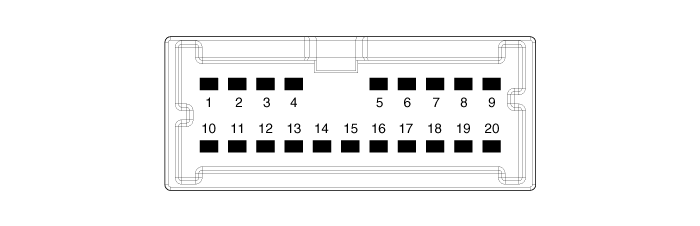

Connector pin number

Pin No.
 Discription
 Remark
1
 IG ON

2
 -

3
 -

4
 -

5
 -

6
 -

7
 -

8
 CAN_Low

9
 CAN_High

10
 -

11
 -

12
 -

13
 -

14
 -

15
 -

16
 -

17
 -

18
 -

19
 -

20
 GND
