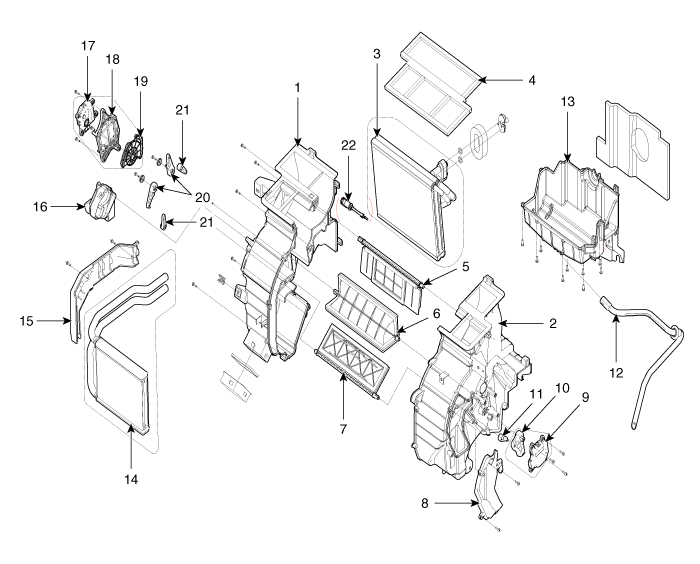

1. Heater Case
[LH]
2. Heater Case [RH]
3. Evaporator Core
4. Duct
Seal
5. Vent/Def Door
6. Foot Door
7. Temp
Door
8. Shower Duct [RH]
9. Temp Actuator
10. Temp
Actuator Lever
11. Temp Door
Lever
|
12. Drain
Hose
13. Heater Lower
Case
14. Heater Core
15. Heater Core Cover
16.
Shower Duct [LH]
17. Mode
Actuator
18. Mode Bracket
19. Mode Cam
20. Sub Vent
Cover
21. Temp Door Lever
22. Evaporator Temperature
Sensor
|
