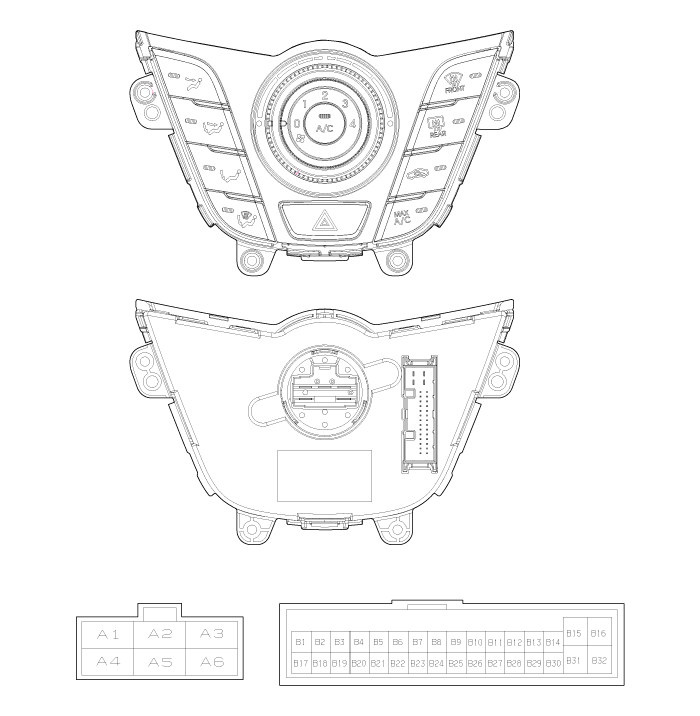

Components

Connector	Pin No	Function	Connector	Pin No	Function
A	1	High	B	1	Tail Lamp (ILL+)
	2	Middle High		2	Battery
	3	Middle Low		3	Mode Actuator (VENT)
	4	Low		4	Mode Actuator (DEF)
	5	-		5	Temp Actuator (COOL)
	6	GND		6	Temp Actuator (WARM)
				7	Intake Actuator (FRE)
				8	Intake Actuator (REC)
				9	-
				10	Detent Out (+)
				11	Mode Actuator (F/B)
				12	Temp Actuator (F/B)
				13	Intake Actuator (F/B)
				14	Blower Motor Common (-)
				15	Blower F/B
				16	Rheostat (ILL -)
				17	IGN2
				18	Hazard Signal
				19	-
				20	-
				21	HTD (RR-DEF Indicator)
				22	A/C Select Signal (HIGH)
				23	A/C Output Signal (HIGH)
				24	RR DEF S/W
				25	Vref (+5V)
				26	Evaporator Sensor
				27	-
				28	-
				29	-
				30	Speed Signal
				31	Sensor GND
				32	GND
