VELOSTER(FS) >2013 > G 1.6 T-GDI > Restraint (Advanced)  > SRSCM>Schematic Diagrams

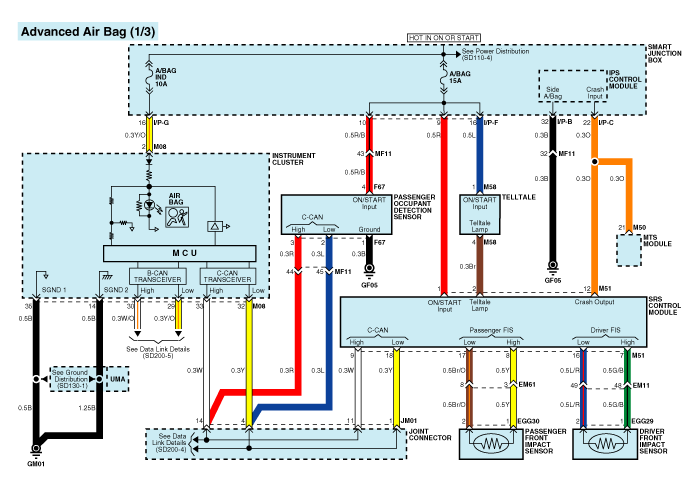

Circuit Diagram (1)

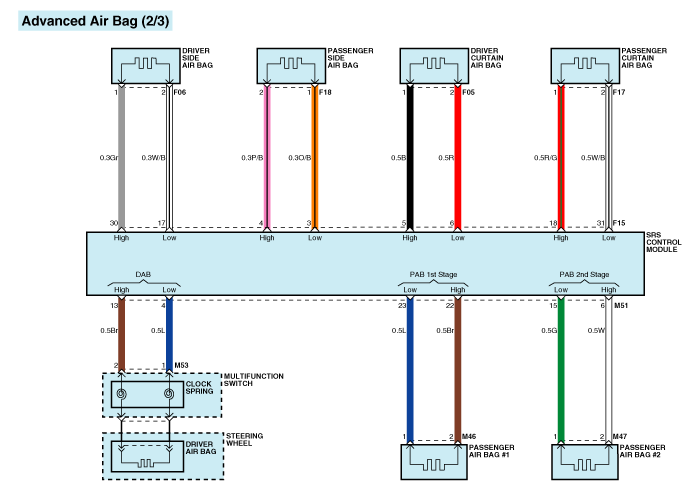

Circuit Diagram (2)

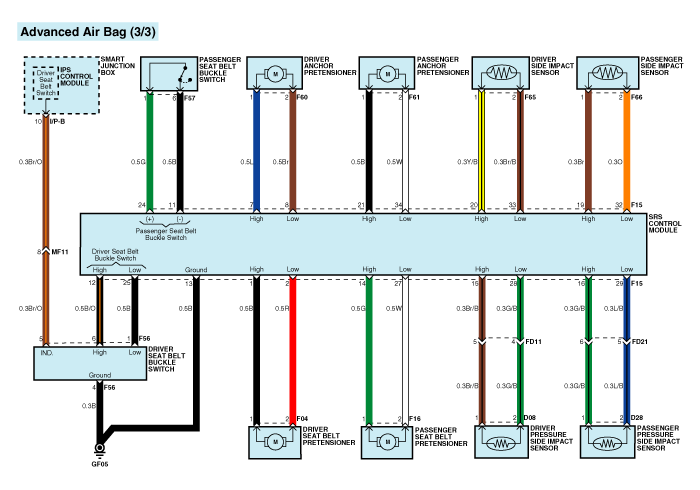

Circuit Diagram (3)

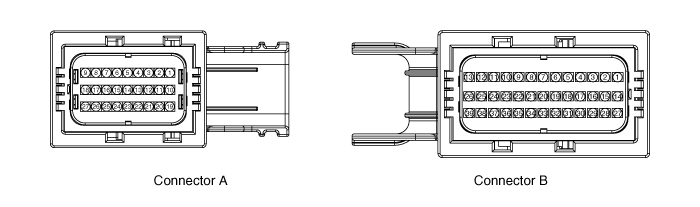

SRSCM Connector terminal

Pin
Function (Connector A)
Pin
Function (Connector B)
1
Ignition
1
Seat belt pretensioner [Driver] High
2
Telltale lamp
2
Seat belt pretensioner [Driver] Low
3
-
3
Side airbag [Passenger] Low
4
(1st stage) Driver airbag Low
4
Side airbag [Passenger] High
5
-
5
Curtain airbag [Driver] High
6
(2nd stage) Passenger airbag High
6
Curtain airbag [Driver] Low
7
Front impact sensor [Driver] High
7
Anchor pretensioner [Driver] High
8
Front impact sensor [Passenger] High
8
Anchor pretensioner [Driver] Low
9
CAN_High
9
-
10
-
10
-
11
-
11
Seat belt buckle switch [Passenger] High
12
Crash Output
12
Seat belt buckle switch [Driver] High
13
(1st stage) Driver airbag High
13
Ground
14
-
14
Seat belt pretensioner [Passenger] High
15
(2nd stage) Passenger airbag Low
15
Pressure side impact sensor [Driver] High
16
Front impact sensor [Driver] Low
16
Pressure side impact sensor [Passenger] High
17
Front impact sensor [Passenger] Low
17
Side airbag [Driver] Low
18
CAN_Low
18
Curtain airbag [Passenger] High
19
-
19
Side impact sensor [Passenger] High
20
-
20
Side impact sensor [Driver] High
21
-
21
Anchor pretensioner [Passenger] High
22
(1st stage) Passenger airbag High
22
-
23
(1st stage) Passenger airbag Low
23
-
24
-
24
Seat belt buckle switch [Passenger] Low
25
-
25
Seat belt buckle switch [Driver] Low
26
-
26
 -
27
-
27
Seat belt pretensioner [Passenger] Low


28
Pressure side impact sensor [Driver] Low


29
Pressure side impact sensor [Passenger] Low


30
Side airbag [Driver] High


31
Curtain airbag [Passenger] Low


32
Side impact sensor [Passenger] Low


33
Side impact sensor [Driver] Low


34
Anchor pretensioner [Passenger] Low


35
-


36
-


37
-


38
-


39
-
