VELOSTER(FS) >2013 > G 1.6 T-GDI > Body (Interior and Exterior) > Body Dimensions > Front Body>Body Repair

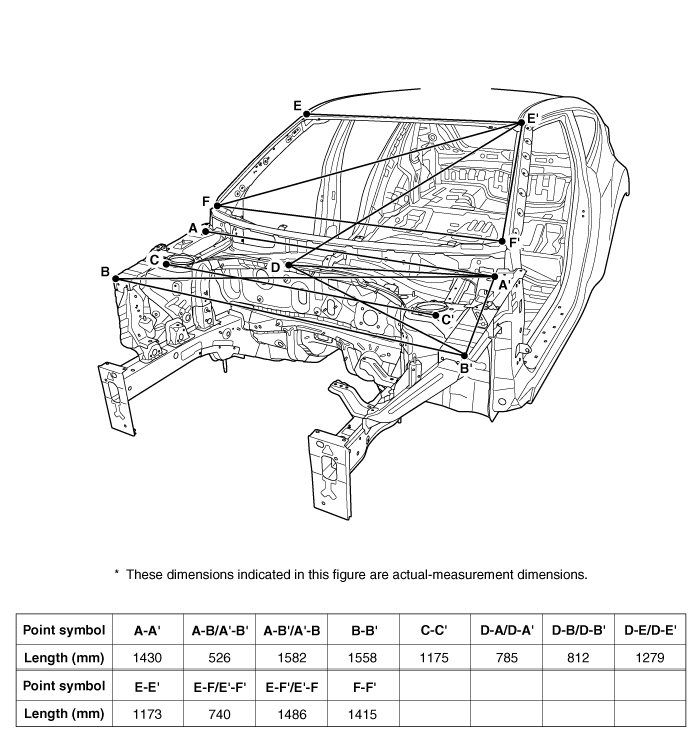

Front Body A

Hood hinge mounting hole (Ø10)

Fender apron upper member corner

 Front shock absorber housing cover tooling hole (Ø6.6)

Cowl top cover mounting hole (Ø7)

 Side outer panel front corner

 Front pillar outer panel corner

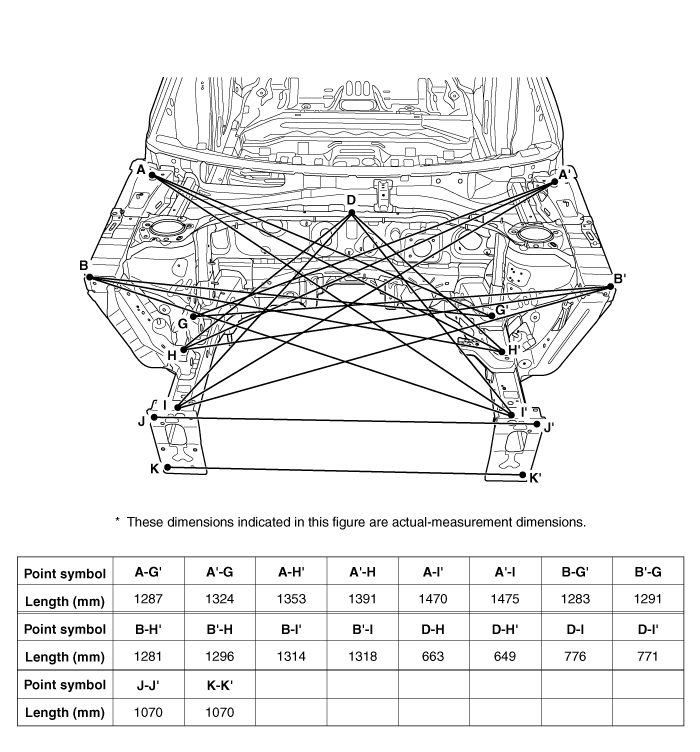

Front Body B

Hood hinge mounting hole (Ø10)

Fender apron upper member corner

 Cowl top cover mounting hole (Ø7)

Engine mounting bracket hole (Ø12)

 Transaxle mounting hole (Ø12)

 Engine mounting bracket hole (Ø15)

Transaxle mounting hole (Ø15.5)

Front side member tooling hole (Ø9)

Front side member tooling hole (Ø6.6)


Front end module mounting hole
(Ø11.5)
Front end module mounting hole
(Ø11.5)

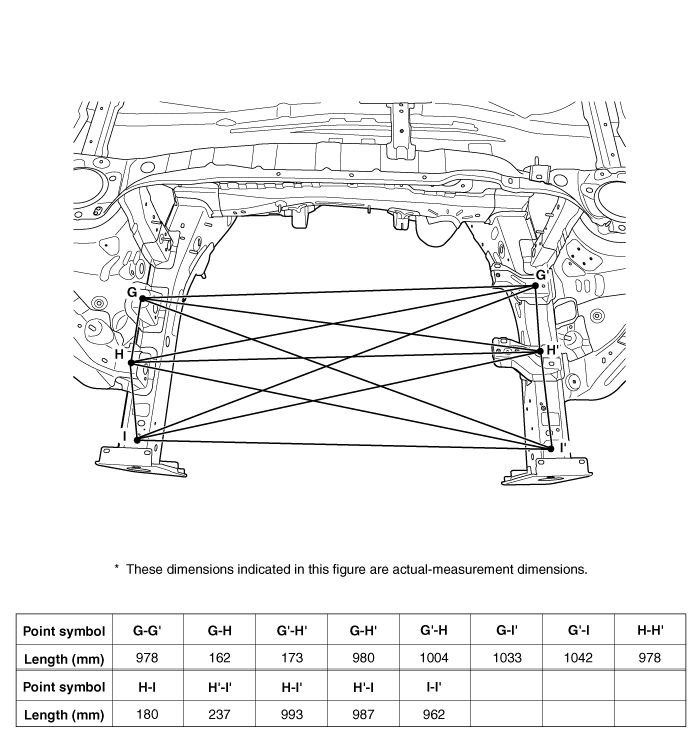

Front Body C

Engine mounting bracket hole (Ø12)

 Transaxle mounting hole (Ø12)

 Engine mounting bracket hole (Ø15)

Transaxle mounting hole (Ø15.5)

Front side member tooling hole (Ø9)

Front side member tooling hole (Ø6.6)
