VELOSTER(FS) >2013 > G 1.6 T-GDI > Body (Interior and Exterior) > Body Dimensions > Side Body>Body Repair
Side Body A (LH)

Front side member tooling hole (Ø12)

Fender apron upper member tooling
hole (Ø7)
Front door upper hinge mounting hole
(Ø13)

Front door lower hinge mounting hole
(Ø13)
Front door switch mounting hole (Ø10)

Quarter fixed glass mounting notch


Rear combination lamp mounting hole
(Ø6)
Quarter outer panel corner

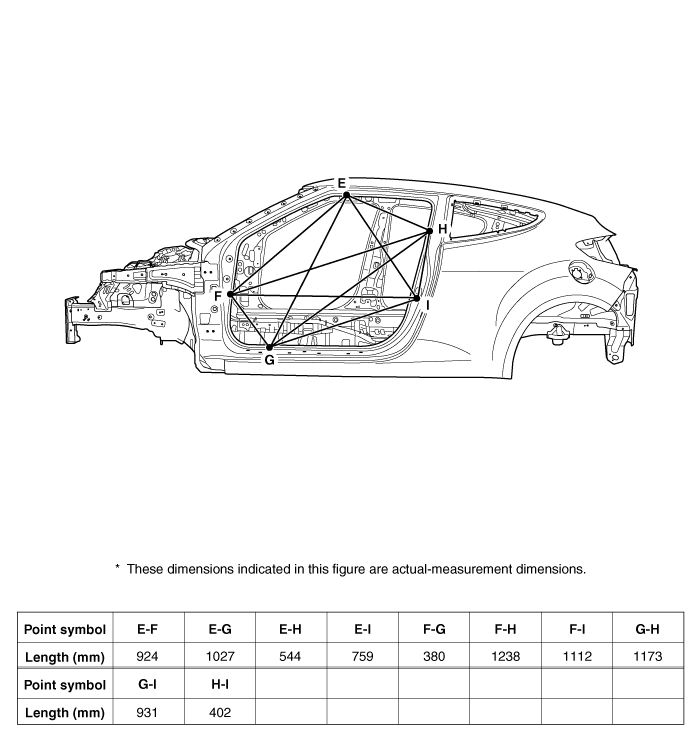

Side Body B (LH)

Side outer panel notch

Side outer panel notch

Side outer panel notch


Side outer panel notch

Front door switch mounting hole (Ø10)

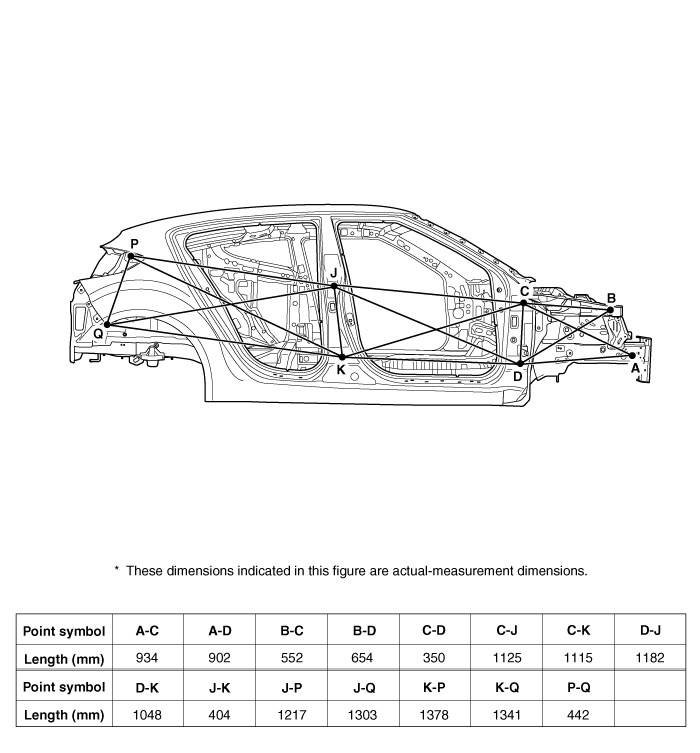

Side Body C (RH)

Front side member tooling hole (Ø12)

Fender apron upper member tooling
hole (Ø7)
Front door upper hinge mounting hole
(Ø13)

Front door lower hinge mounting hole
(Ø13)
Rear door upper hinge mounting hole
(Ø13)
Rear door lower hinge mounting hole
(Ø13)


Rear combination lamp mounting hole
(Ø6)
Quarter outer panel corner

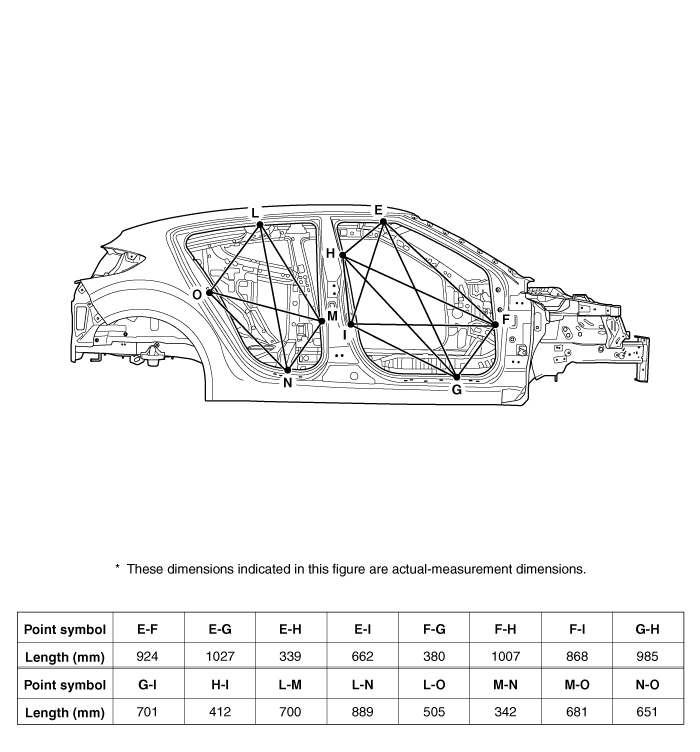

Side Body D (RH)

Side outer panel notch

Side outer panel notch

Side outer panel notch

Side outer panel notch

Front door switch mounting hole (Ø10)

Side outer panel notch

Side outer panel notch

Side outer panel notch

Rear door switch mounting hole (Ø10)
