VELOSTER(FS) >2013 > G 1.6 T-GDI > Body (Interior and Exterior) > Body Dimensions > Interior>Body Repair

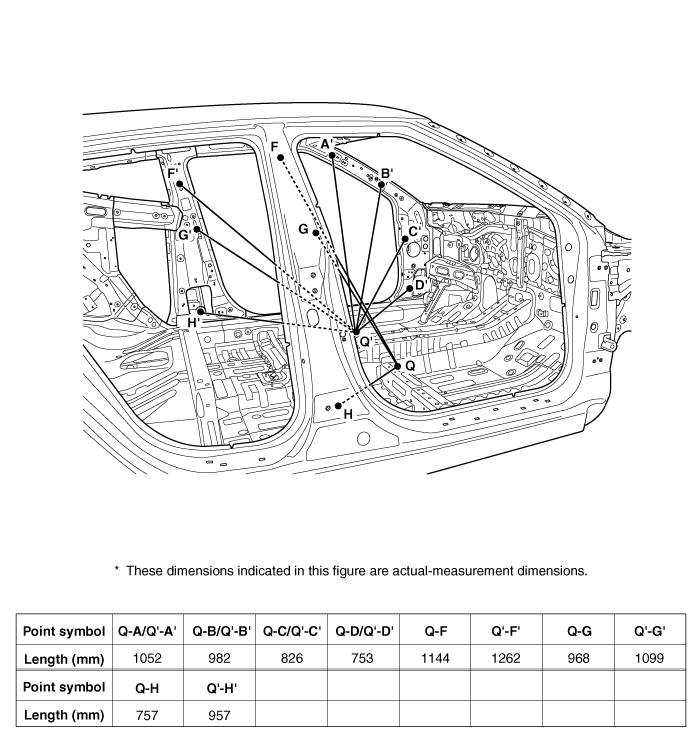

Interior A

Front pillar trim mounting hole (Ø8)

 Curtain airbag mounting hole (Ø6.6)

Cowl crossbar mounting hole (Ø12)

Front pillar inner panel tooling hole
(Ø6.6)
Front door checker mounting hole
(Ø13)
Seat belt upper anchor mounting hole
(Ø15)

Seat belt upper anchor mounting hole
(Ø15)
Center pillar trim mounting hole (Ø10)

Quarter trim mounting hole (Ø8.5)

Seat belt retractor mounting hole
(Ø12)
 Seat belt retractor mounting hole
(Ø12)
 Front door striker mounting hole (Ø13)

Front door striker mounting hole (Ø13)

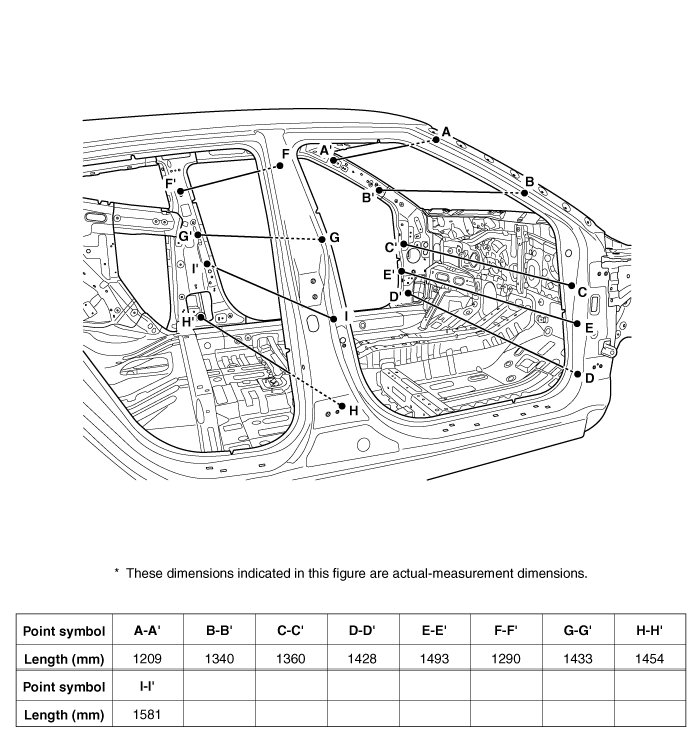

Interior B

Seat belt upper anchor mounting hole
(Ø15)
 Seat belt upper anchor mounting hole
(Ø15)
 Center pillar trim mounting hole (Ø10)

Quarter trim mounting hole (Ø8.5)

Seat belt retractor mounting hole
(Ø12)
 Seat belt retractor mounting hole
(Ø12)

Front door striker mounting hole (Ø13)

 Front door striker mounting hole (Ø13)

 Rear pillar trim mounting hole (Ø8.5)

Quarter inner lower panel tooling hole
(Ø14)
 Rear pillar trim mounting hole (Ø8.5)

Luggage side trim mounting hole
(Ø8.5)



Rear transverse trim mounting hole
(Ø8.5)



Interior C

Front pillar trim mounting hole (Ø8)

 Curtain airbag mounting hole (Ø6.6)

 Cowl crossbar mounting hole (Ø12)

Front pillar inner panel tooling hole
(Ø6.6)
Seat belt upper anchor mounting hole
(Ø15)
 Seat belt upper anchor mounting hole
(Ø15)

Center pillar trim mounting hole (Ø10)

Quarter trim mounting hole (Ø8.5)

Seat belt retractor mounting hole
(Ø12)


Seat belt retractor mounting hole
(Ø12)
 Front seat mounting hole (Ø11)

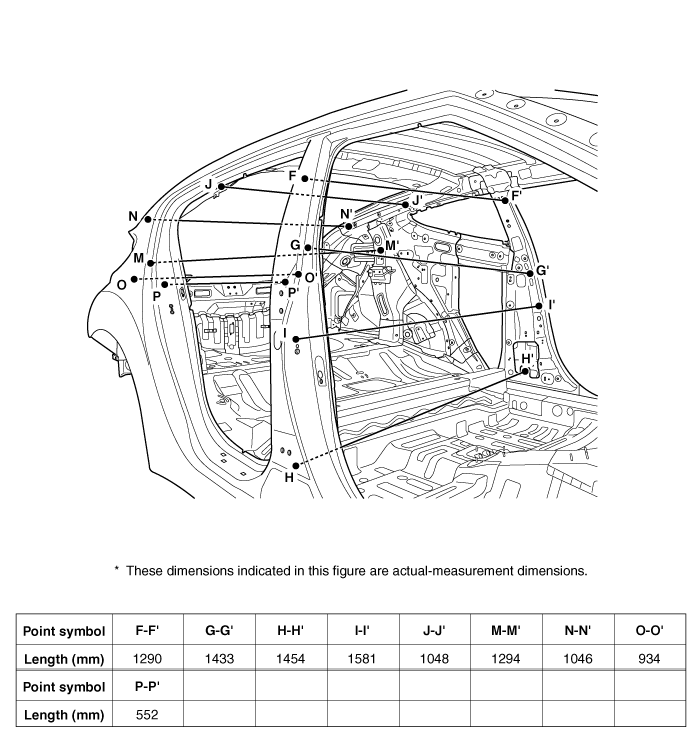

Interior D

Seat belt upper anchor mounting hole
(Ø15)
 Seat belt upper anchor mounting hole
(Ø15)
 Center pillar trim mounting hole (Ø10)

Quarter trim mounting hole (Ø8.5)

Seat belt retractor mounting hole
(Ø12)
 Seat belt retractor mounting hole
(Ø12)

Rear pillar trim mounting hole (Ø8.5)

 Quarter inner lower panel tooling hole
(Ø18)
 Quarter inner lower panel tooling hole
(Ø8.5)

Quarter inner lower panel tooling hole
(Ø14)
 Rear pillar trim mounting hole (Ø8.5)

Luggage side trim mounting hole
(Ø8.5)


Rear transverse trim mounting hole
(Ø8.5)
Rear floor panel tooling hole (Ø7)
