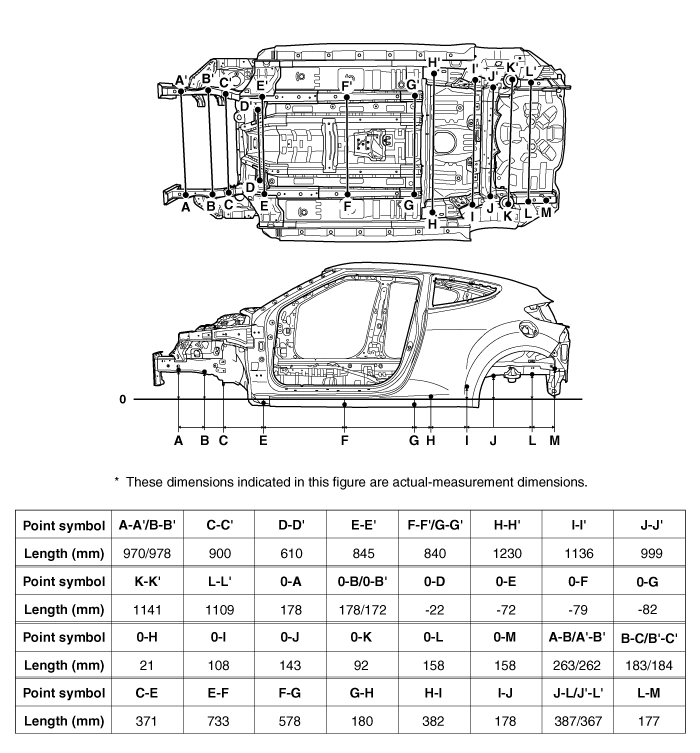

Projected Dimensions

Front side member tooling hole (Ø6.6)

 Front side member tooling hole (Ø6.6)

 Side cover mounting hole (Ø8.6)

Side cover mounting hole (Ø10)

 Sub frame mounting bolt

 Sub frame mounting hole (Ø22)

Front side member tooling hole (Ø11)

Center floor side member tooling hole
(Ø8)
 Center floor side member extension tooling hole (Ø7)

Rear floor side member tooling hole
(Ø10)
 Rear floor side member tooling hole
(Ø10)
 Rear floor side member tooling hole
(Ø10)

Rear floor center cross member tooling hole (Ø10)
 Rear spring stopper bracket hole (Ø9)

 Rear floor side member tooling hole
(L/L' : Ø7/Ø10)

Rear floor side member tooling hole
(Ø8)

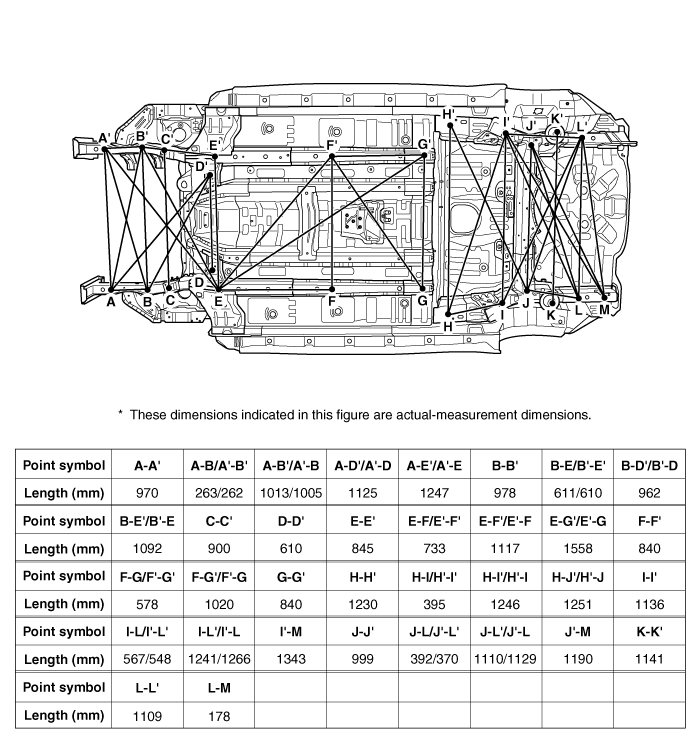

Actual-Measurement Dimensions

Front side member tooling hole (Ø6.6)

 Front side member tooling hole (Ø6.6)

 Side cover mounting hole (Ø8.6)

Side cover mounting hole (Ø10)

 Sub frame mounting bolt

 Sub frame mounting hole (Ø22)

Front side member tooling hole (Ø11)

Center floor side member tooling hole
(Ø8)
 Center floor side member extension tooling hole (Ø7)

Rear floor side member tooling hole
(Ø10)
 Rear floor side member tooling hole
(Ø10)
 Rear floor side member tooling hole
(Ø10)

Rear floor center cross member tooling hole (Ø10)
 Rear spring stopper bracket hole (Ø9)

 Rear floor side member tooling hole
(L/L' : Ø7/Ø10)

Rear floor side member tooling hole
(Ø8)
