Sunvisor Replacement
| •
|
Use a plastic panel removal tool to
remove interior trim pieces to without marring the
surface. |
| •
|
Put on gloves to protect your
hands. | |
| 1. |
After loosening the mounting screws, then
remove the sunvisor (A) and retainer (B).
|
| 2. |
Installation is the reverse of
removal. |
Assist Handle Replacement
| •
|
Use a plastic panel removal tool to
remove interior trim pieces to without marring the
surface. |
| •
|
Put on gloves to protect your
hands. | |
| 1. |
Remove the covers
(A). |
| 2. |
After loosening the mounting screws, then
remove the assist handle (B).
|
| 3. |
Installation is the reverse of
removal. |
Garment Hook Assembly Replacement
| •
|
Use a plastic panel removal tool to
remove interior trim pieces to without marring the
surface. |
| •
|
Put on gloves to protect your
hands. | |
| 2. |
After loosening the mounting bolt, then remove
the garment hook assembly (A).
|
| 3. |
Installation is the reverse of
removal. |
Overhead Console Replacement
| •
|
Use a plastic panel removal tool to
remove interior trim pieces to without marring the
surface. |
| •
|
Put on gloves to protect your
hands. | |
| 1. |
After loosening the mounting screws, then
remove the overhead console assembly (A).
|
| 2. |
Disconnect the connectors (A).
|
| 3. |
Installation is the reverse of
removal.
| •
|
Make sure the connector is
connected
properly. | | |
Vanity Lamp Replacement
| •
|
Use a plastic panel removal tool to
remove interior trim pieces to protect from marring the
surface. |
| •
|
Put on gloves to protect your hands.
| |
| 1. |
Using a screwdriver or remover, remove the
vanity lamp (A). |
| 2. |
Disconnect the vanity lamp connector
(B).
|
| 3. |
Installation is the reverse of
removal.
| •
|
Make sure the connector is plugged
in properly. |
| •
|
Replace any damage clips.
| | |
Roof Trim Replacement
| •
|
When prying with a flat-tip screwdriver,
wrap it with protective tape, and apply protective tape around
the related parts, to prevent
damage. |
| •
|
Put on gloves to protect your
hands. | |
| 1. |
Remove the following items.
| A. |
Front seat
(Refer to the BD group - "Front
Seat") |
| B. |
Rear seat
(Refer to the BD group - "Rear
Seat") |
| G. |
Front pillar trim
(Refer to the BD group - " Interior
Trim") |
| H. |
Front door scuff trim & Rear door
scuff trim
(Refer to the BD group - " Interior
Trim") |
| I. |
Center pillar lower trim & Center
pillar upper trim
(Refer to the BD group - " Interior
Trim") |
| J. |
Luggage side trim
(Refer to the BD group - " Interior
Trim") |
| K. |
Rear pillar trim
(Refer to the BD group - " Interior
Trim") | |
| 2. |
Remove the ECM mirror cover
(B). |
| 3. |
Disconnect the ECM mirror connector
(A).
|
| 4. |
Disconnect the connector (A) and the mounting
clips in the front pillar.
|
| 5. |

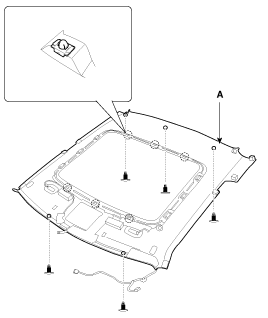

Remove the clips and roof trim
(A).
|
| 6. |
Installation is the reverse of
removal.
| •
|
Make sure the connectors are
plugged in properly. |
| •
|
Replace any damage
clips. | | |
