Door Scuff Trim Replacement
| •
|
Put on gloves to protect your
hands. |
| •
|
Use a plastic panel removal tool to
remove interior trim pieces to without marring the
surface. |
| •
|
Take care not to bend or scratch the
trim and
panels. | |
| 1. |
Using a screwdrier or remover, remove the
front door scuff trim (A).
[Front]
|
| 2. |
Remove the rear seat cushion.
(Refer to the BD group - "Rear
Seat") |
| 3. |
After loosening the mounting screw, then
remove the rear door scuff trim (A).
[Rear]
|
| 4. |
Installation is the reverse of
removal.
| •
|
Replace any damage
clips. | | |
Front Pillar Trim Replacement
| •
|
Put on gloves to protect your
hands. |
| •
|
Use a plastic panel removal tool to
remove interior trim pieces to without marring the
surface. |
| •
|
Take care not to bend or scratch the
trim and
panels. | |
| 1. |
Using a screwdriver or remover, remove the
front pillar trim (A).
|
| 2. |
Installation is the reverse of
removal.
| •
|
Replace any damage
clips. | | |
Cowl Side Trim Replacement
| •
|
Put on gloves to protect your hands.
|
| •
|
Use a plastic panel removal tool to
remove interior trim pieces to without marring the
surface. |
| •
|
Take care not to bend or scratch the
trim and
panels. | |
| 1. |
Remove the front door scuff
trim. |
| 2. |
Remove the hood latch release
handle.
(Refer to the BD group -
"Hood") |
| 3. |
Using a screwdriver or remover, remove the
cowl side trim (A).
| •
|
Be careful not to damage the cowl
side trim clip (B). |
| •
|
Pull the cowl side tirm as
direction of the arrow and then remove the
tirm. | |
|
| 4. |
Installation is the reverse of
removal.
| •
|
Replace any damage clips.
| | |
Center Pillar Trim Replacement
| •
|
Put on gloves to protect your hands.
|
| •
|
Use a plastic panel removal tool to
remove interior trim pieces to without marring the
surface. |
| •
|
Take care not to bend or scratch the
trim and
panels. | |
| 1. |
Remove the following items first
:
| A. |
Front door scuff trim
(Refer to the BD group – “Interior
Trim”). |
| B. |
Rear door scuff trim [RH]
(Refer to the BD group – “Interior
Trim”). | |
| 2. |
Disconnect the battery negative cable, and
wait for at least three minutes before beginning
work. |
| 3. |
The seat belt anchor pretensioner (A) be
removed after pushing the lock pin (B) as arrow
direction.
[LH]
[RH]
|
| 4. |
Using a screwdriver or remover, remove the
center pillar lower trim (A).
[LH]
[RH]
|
| 5. |
Using a screwdriver or remover, remove the
front seat belt upper anchor cover (A).
[LH]
[RH]
|
| 6. |
After loosening the mounting bolt, then remove
the front seat belt upper anchor (A).
[LH]
Tightening
torque :
39.2 ~ 53.9 N.m (4.0 ~ 5.5 kgf.m, 28.9 ~
39.8 lb-ft)
|
[RH]
Tightening
torque :
39.2 ~ 53.9 N.m (4.0 ~ 5.5 kgf.m, 28.9 ~
39.8 lb-ft)
|
|
| 7. |
After loosening the mounting bolt, then remove
the center pillar upper trim (A).
[LH]
[RH]
|
| 8. |
Installation is the reverse of
removal.
| •
|
Replace any damage clips.
| | |
Rear Pillar Trim Replacement
| •
|
Put on gloves to protect your hands.
|
| •
|
Use a plastic panel removal tool to
remove interior trim pieces to without marring the
surface. |
| •
|
Take care not to bend or scratch the
trim and
panels. | |
| 1. |
Remove the rear seat.
(Refer to the BD group – “Rear
Seat”) |
| 2. |
Using a screwdriver or remover, remove the
rear transverse trim (A).
|
| 3. |
After loosening the mounting screw, then
remove the rear door scuff trim (A).
|
| 4. |
After loosening the mounting bolt, then remove
the rear seat belt lower anchor (A).
[LH,
RH]
Tightening
torque :
39.2 ~ 53.9 N.m (4.0 ~ 5.5 kgf.m, 28.9 ~
39.8 lb-ft)
|
|
| 5. |
Using a screwdriver or remover, remove the
center pillar lower trim (A).
[LH]
|
| 6. |
Using a screwdriver or remover, remove the
luggage side trim lamp (A). |
| 7. |
Disconnect the luggage side trim lamp
connector (B). |
| 8. |
After loosening the mounting screws, then
remove the luggage side trim (C).
[LH]
[RH]
|
| 9. |
After loosening the mounting bolts, then
remove the rear pillar trim (A).
[LH]
[RH]
|
| 10. |
Installation is the reverse of
removal.
| •
|
Replace any damage clips.
|
| •
|
Make sure the connector is
connected properly.
| | |
Luggage Side Trim Replacement
| •
|
Put on gloves to protect your
hands. |
| •
|
Use a plastic panel removal tool to
remove interior trim pieces to without marring the
surface. |
| •
|
Take care not to bend or scratch the
trim and
panels. | |
| 1. |
Remove the following items first
:
| A. |
Rear seat assembly
(Refer to the BD group - "Rear
Seat") |
| B. |
Front door scuff trim
[LH] |
| C. |
Center pillar lower trim
[LH] |
| D. |
Rear door scuff trim
[RH] |
|
| 2. |
After loosening the mounting screws, then
remove the luggage side trim. |
| 3. |
Installation is the reverse of
removal.
| •
|
Replace any damage clips.
| | |

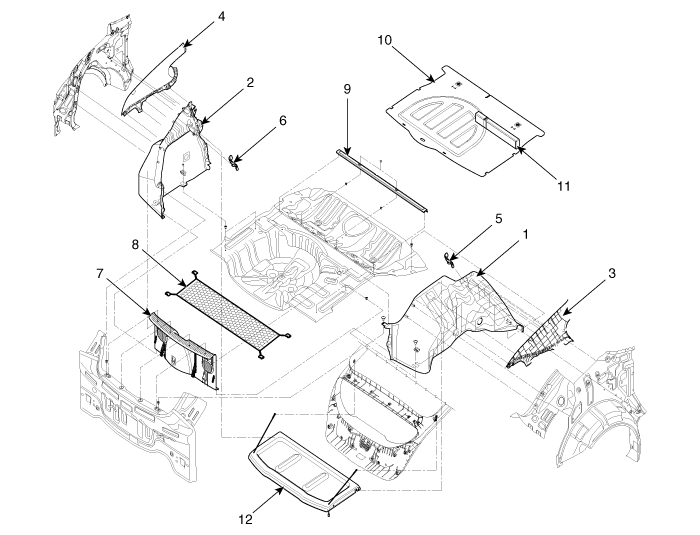

1. Luggage side
trim [RH]
2. Luggage side trim
[LH]
3. Rear pillar trim
[RH]
4. Rear pillar trim
[LH]
5. Luggage rear cover
[RH]
6. Luggage rear cover
[LH]
|
7. Rear
transverse trim
8. Luggage net
assembly
9. Load floor front
trim
10. Luggage covering
mat
11. Car warning triangle
assembly
12. C piller shelf center
trim
|
