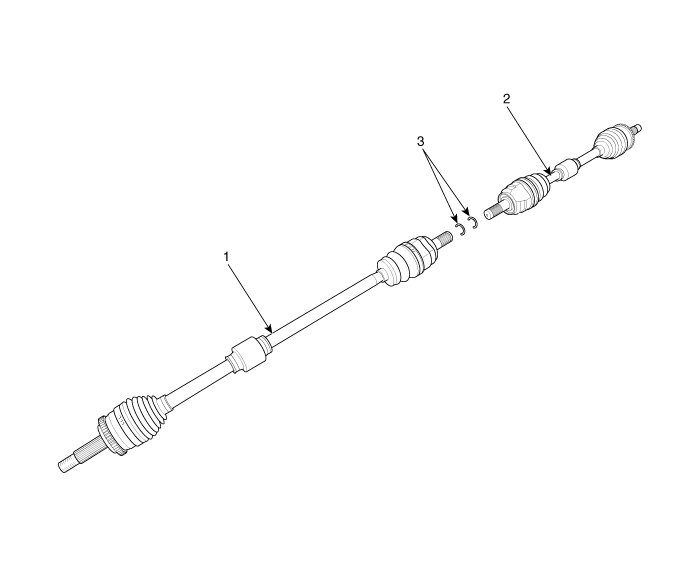

Component location

1. Driveshaft (RH) 2. Driveshaft (LH)

3. Circlip

Components

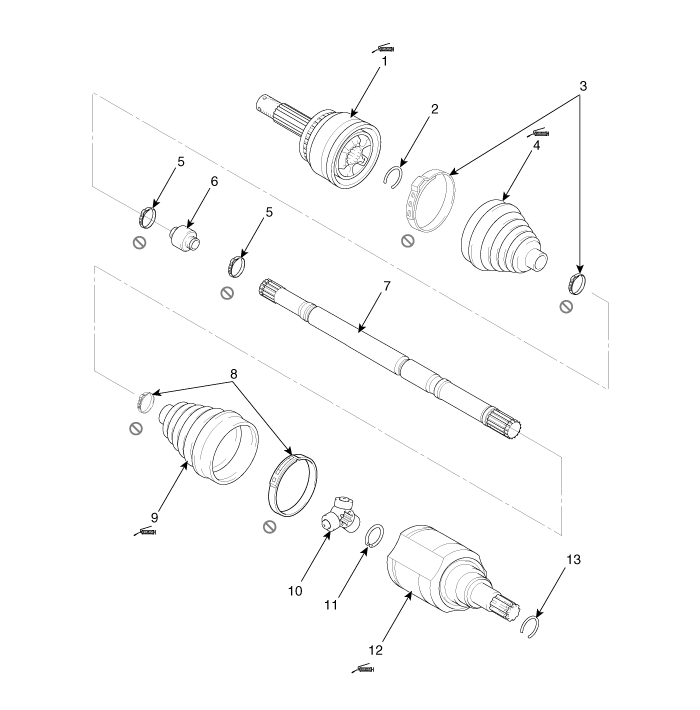

[RH]

1. BJ assembly 2. Circlip 3. BJ boot band 4. BJ boot

5. Dynamic damper band 6. Dynamic damper 7. Shaft 8. TJ boot band

9. TJ boot 10. Spider assembly 11. Snap ring 12. TJ case

13. Circlip

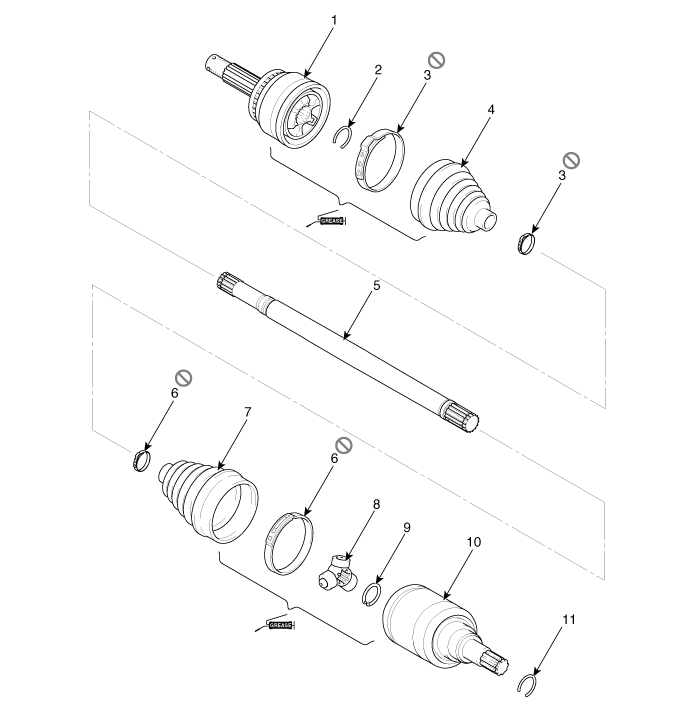

[LH]

1. BJ assembly 2. BJ circlip 3. BJ boot band 4. BJ boot

5. Shaft 6. TJ boot band 7. TJ boot 8. Spider assembly

9. Snap ring 10. TJ case 11. Circlip
