| VELOSTER(FS) >2013 > G 1.6 T-GDI > Fuel System > Engine Control System > Crankshaft Position Sensor (CKPS)>Troubleshooting |
|

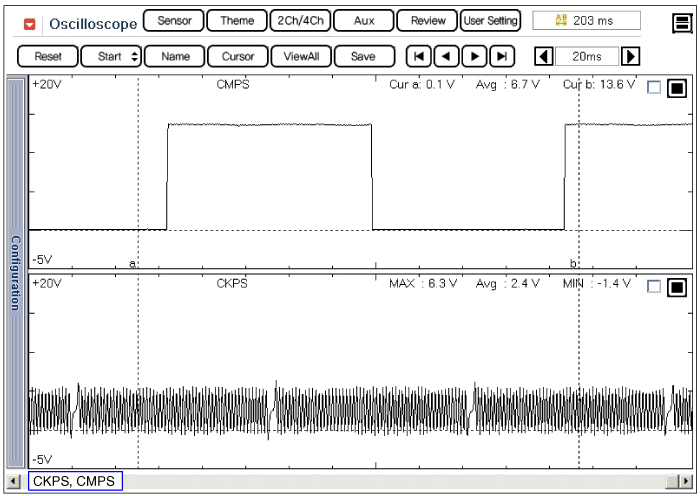

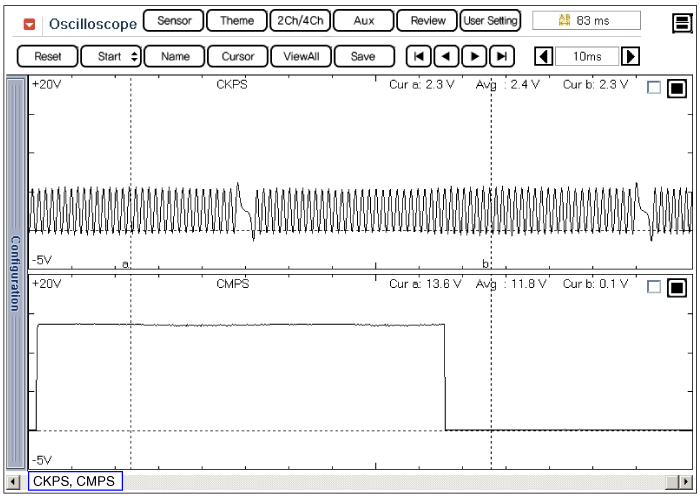

This example shows a
typical Crankshaft Position Sensor(CkPS) and Camshaft Position
Sensor(CMPS) waveform at idle.The PCM controls the injection and ignition
timing by using these signals.
Generally CkPS signal is
used to detect the piston's position and CMPS signal is used to detect the
Top Dead Center of each cylinder. |
