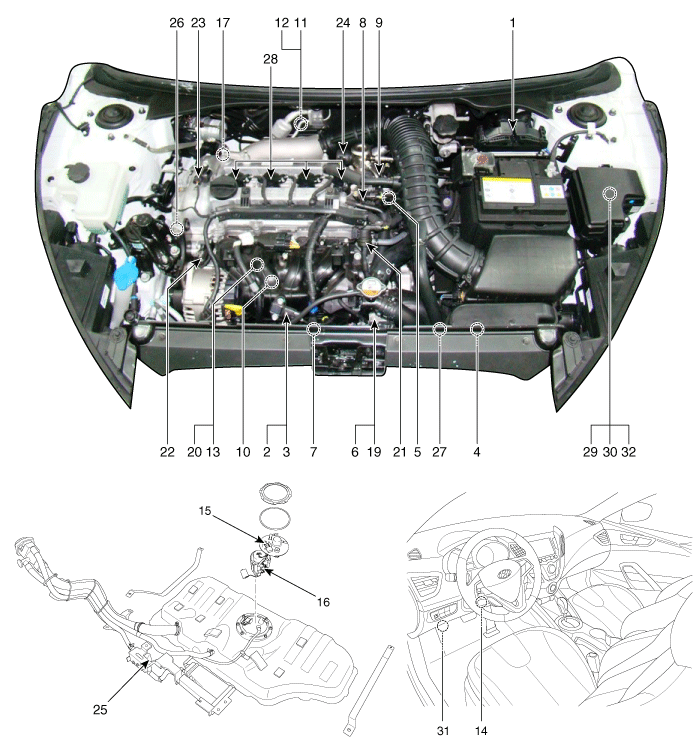

1. Engine Control
Module (ECM)
|
2. Manifold
Absolute Pressure Sensor (MAPS)
3. Intake
Air Temperature Sensor (IATS)
|
|
|
|
4. Boost Pressure
Sensor
|
5. Engine Coolant
Temperature Sensor (ECTS)
|
|
|
|
6. Throttle
Position Sensor (TPS)
19. ETC Motor
|
7. Crankshaft
Position Sensor (CKPS)
|
|
|
|
8. Camshaft
Position Sensor (CMPS) [Bank 1 / Intake]
9. Camshaft Position Sensor (CMPS) [Bank 1 /
Exhaust]
|
10. Knock Sensor
(KS)
|
|
|
|
11. Heated Oxygen
Sensor (HO2S) [Bank 1/Sensor 1]
12.
Heated Oxygen Sensor (HO2S) [Bank 1/Sensor 2]
|
13. Rail Pressure
Sensor (RPS)
20.
Injector
|
|
|
|
14. Accelerator
Position Sensor (APS)
|
15. Fuel Tank
Pressure Sensor (FTPS)
|
|
|
|
16. Fuel Level
Sender (FLS)
|
17. A/C Pressure
Transducer (APT)
|
|
|
|
18. Ambient
Temperature Sensor (ATS)
|
21. Purge Control
Solenoid Valve (PCSV)
|
|
|
|
22. CVVT Oil
Control Valve (OCV) [Bank 1 / Intake]
|
23. CVVT Oil
Control Valve (OCV) [Bank 1 / Exhaust]
|
|
|
|
24. Fuel Pressure
Control Valve (FPCV)
|
25. Canister
Close Valve (CCV)
|
|
|
|
26. Waste Gate
Solenoid Valve
|
27. RCV Control
Solenoid Valve
|
|
|
|
28. Ignition
Coil
|
29. Main
Relay
30. Fuel Pump Relay
32. Multi-Purpose Check Connector
[20-Pin]
|
|
|
|
31. Data Link
Connector (DLC) [16-Pin]
|
|
|
|
|
