VELOSTER(FS) >2013 > G 1.6 T-GDI > Fuel System > Engine Control System > Engine Control Module (ECM)>Schematic Diagrams
ECM Terminal And Input/Output signal [M/T]

ECM Terminal Function (M/T)

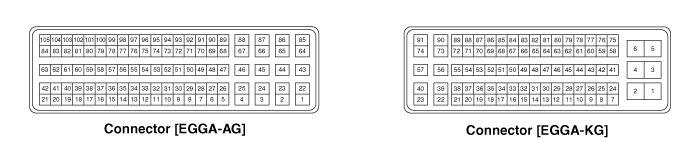

Connector [EGGM-A]
Pin No.
 Description
 Connected to
1
 Injector (Cylinder #3) [High] control output
 Injector (Cylinder #3)
2
 Injector (Cylinder #4) [High] control output
 Injector (Cylinder #4)
3
 Injector (Cylinder #2) [Low] control output
 Injector (Cylinder #2)
4
 -
 　
5
 Heated Oxygen Sensor  (HO2S) [Bank 1/Sensor 1] heater control output
 Heated Oxygen Sensor  (HO2S) [Bank 1/Sensor 1]
6
 -
 　
7
 -
8
 -
 　
9
 -
 　
10
 -
 　
11
 -
 　
12
 -
13
 -
 　
14
 -
15
 CVVT Oil Control Valve (OCV) [Bank 1/Exhaust] control output
 CVVT Oil Control Valve (OCV) [Bank 1/Exhaust]
16
 Injector (Cylinder #2) [High] control output
 Injector (Cylinder #2)
17
 Injector (Cylinder #1) [High] control output
 Injector (Cylinder #1)
18
 Injector (Cylinder #3) [Low] control output
 Injector (Cylinder #3)
19
 -
 　
20
 Heated Oxygen Sensor  (HO2S) [Bank 1/Sensor2] heater control output
 Heated Oxygen Sensor  (HO2S) [Bank 1/Sensor 2]
21
 -
 　
22
 -
 　
23
 Engine Coolant Temperature Sensor (ECTS) signal input
 Engine Coolant Temperature Sensor (ECTS)　
24
 Sensor ground
 Engine Coolant Temperature Sensor (ECTS)
25
 -
 　
26
 Fuel Tank Pressure Sensor (FTPS) signal input
 Fuel Tank Pressure Sensor (FTPS)
27
 Fuel pump relay control output (NON-Smart key type)
 Fuel pump relay
Canister Close Valve (CCV) control output  (Smart key type)
 Canister Close Valve (CCV)
28
 -
 　
29
 A/C compressor relay control output
 A/C compressor relay
30
 -
 　
31
 Ignition coil (Cylinder #3) control output
 Ignition coil (Cylinder #3)
32
 Ignition coil (Cylinder #1) control output
 Ignition coil (Cylinder #1)
33
 Injector (Cylinder #1) [Low] control output
 Injector (Cylinder #1)
34
 Fuel Pressure Control Valve (FPCV) [High] control output
 Fuel Pressure Control Valve (FPCV)
35
 ETC motor [-] control output
 ETC motor
36
 -
 　
37
 Knock Sensor (KS) signal input
 Knock Sensor (KS)
38
 Sensor ground
 Knock Sensor (KS)
39
 Blower Switch Max. Signal input
 Heater control module
40
 Brake Light switch signal input
 Brake switch
41
 -
42
 -
43
 -
 　
44
 -
 　
45
 CVVT Oil Control Valve (OCV) [Bank 1/Intake] control output
 CVVT Oil Control Valve (OCV) [Bank 1/Intake]
46
 Ignition coil (Cylinder #4) control output
 Ignition coil (Cylinder #4)
47
 Ignition coil (Cylinder #2) control output
 Ignition coil (Cylinder #2)
48
 Injector (Cylinder #4) [Low] control output
 Injector (Cylinder #4)
49
 Fuel Pressure Control Valve (FPCV) [Low] control output
 Fuel Pressure Control Valve (FPCV)
50
 ETC motor [+] control output
 ETC motor
51
 -
 　
52
 -
 　
53
 Brake Test switch signal input
 Brake switch
54
 -
 　
55
 Clutch switch signal input
 Clutch switch
56
 Electric load signal input [Defrost]
 Alternator
57
 Alternator COM signal output
 Alternator
58
 Engine speed signal output
 Cluster
59
 Cooling fan relay [PWM] control output
 Cooling fan relay
60
 -

Connector [EGGM-K]
Pin No.
 Description
 Connected to
1
 ECM ground
 Chassis ground
2
 ECM ground
 Chassis ground
3
 ECM ground
 Chassis ground
4
 Battery power (B+)
 Main relay
5
 Battery power (B+)
 Battery
6
 Battery power (B+)
 Battery
7
 Battery power (B+)
 Main relay
8
 Sensor ground
 Heated Oxygen Sensor  (HO2S) [Bank 1 / Sensor 2]
9
 Accelerator Position Sensor (APS) 1 signal input
 Accelerator Position Sensor (APS) 1
10
 Sensor ground
 Accelerator Position Sensor (APS) 2
11
 -
 　
12
 Sensor ground
 Fuel Tank Pressure Sensor (FTPS)
13
 -
 　
14
 Throttle Position Sensor (TPS) 1 signal input
 Throttle Position Sensor (TPS) 1
15
 -
 　
16
 -
 　
17
 Fuel Level signal input
 Fuel Level Sender (FLS)
18
 Sensor power (+5V)
 Accelerator Position Sensor (APS) 2
19
 -
 　
20
 Sensor power (+5V)
 Rail Pressure Sensor (RPS)
Boost Pressure Sensor (BPS)
A/C Pressure Transducer (APT)
21
 -
 　
22
 Wiper switch signal input
 Wiper switch
23
 -
24
 Alternator PWM signal output [FR]
 Alternator
25
 -
 　
26
 -
 　
27
 -
 　
28
 -
 　
29
 Ignition switch signal input
 　
30
 Heated Oxygen Sensor  (HO2S) [Bank 1 / Sensor 2] signal input
 Heated Oxygen Sensor  (HO2S) [Bank 1 / Sensor 2]
31
 Accelerator Position Sensor (APS) 2 signal input
 Accelerator Position Sensor (APS) 2
32
 Sensor ground
 Accelerator Position Sensor (APS) 1
33
 Sensor ground
 Ambient Temperature Sensor (ATS)
34
 -
 　
35
 Sensor ground
 Throttle Position Sensor (TPS)
36
 Throttle Position Sensor (TPS) 2 signal input
 Throttle Position Sensor (TPS) 2
37
 Ambient Temperature Sensor (ATS) signal input
 Ambient Temperature Sensor (ATS)
38
 -
 　
39
 Sensor power (+5V)
 Throttle Position Sensor (TPS) 1,2
40
 Sensor power (+5V)
 Accelerator Position Sensor (APS) 1
41
 Sensor power (+5V)
 Manifold Absolute Pressure Sensor (MAPS)
Fuel Tank Pressure Sensor (FTPS)
42
 Sensor power (+5V)
 Camshaft Position Sensor (CMPS) [Bank 1 / Intake]
Camshaft Position Sensor (CMPS) [Bank 1 / Exhaust]
43
 A/C switch input
 Heater & A/C control module
44
 A/C pressure Switch
 Heater & A/C control module
45
 A/C Pressure Transducer (APT) signal input
 A/C Pressure Transducer (APT)
46
 Vehicle speed signal input
 Vehicle Speed Sensor
47
 -
48
 -
 　
49
 -
 　
50
 -
51
 -
 　
52
 VS-/IP- (Common Ground for VS, IP)
 Heated Oxygen Sensor  [Bank 1/Sensor 1]
53
 Rc/Rp (Pump Cell Voltage)
 Heated Oxygen Sensor  [Bank 1/Sensor 1]
54
 -
 　
55
 Sensor ground
 Boost Pressure Sensor (BPS)
56
 -
 -
57
 Boost Pressure Sensor (BPS) signal input
 Boost Pressure Sensor (BPS)
58
 Rail Pressure Sensor (RPS) signal input
 Rail Pressure Sensor (RPS)
59
 -
60
 Start signal input
 PDM module
61
 LIN communication signal input
62
 -
 　
63
 CAN [Low]
 Other control module, Data Link Connector (DLC), Multi-Purpose Check Connector
64
 Sensor ground
 Camshaft Position Sensor (CMPS) [Bank 1 / Exhaust]
65
 Camshaft Position Sensor (CMPS) [Bank 1 / Exhaust] signal input
 Camshaft Position Sensor (CMPS) [Bank 1 / Exhaust]
66
 -
 　
67
 Crankshaft Position Sensor (CKPS) [B] signal input
 Crankshaft Position Sensor (CKPS)
68
 -
 　
69
 -
 　
70
 RCV control Solenoid Valve control output
 RCV control solenoid valve
71
 -
 　
72
 Purge Control Solenoid Valve (PCSV) control output
 Purge Control Solenoid Valve (PCSV)
73
 -
 　
74
 VS+ (NERNST Cell Voltage)
 Heated Oxygen Sensor  [Bank 1/Sensor 1]
75
 Rc (Compensative Resistance)
 Heated Oxygen Sensor  [Bank 1/Sensor 1]
76
 Sensor ground
 Rail Pressure Sensor (RPS)
77
 Sensor ground
 A/C Pressure Transducer (APT)
78
 Sensor ground
 Manifold Absolute Pressure Sensor (MAPS)
79
 Intake Temperature Sensor (IATS) signal input
 Intake Temperature Sensor (IATS)
80
 Manifold Absolute Pressure Sensor (MAPS) signal input
 Manifold Absolute Pressure Sensor (MAPS)
81
 -
 　
82
 -
 　
83
 Immobilizer communication line
 Smart Key Control Module [With Button Engine Start System]
Immobilizer Control Module [Without Button Engine Start System]
84
 -
 　
85
 CAN [High]
 Other control module, Data Link Connector (DLC), Multi-Purpose Check Connector
86
 Sensor ground
 Camshaft Position Sensor (CMPS) [Bank 1 / Intake]
87
 Camshaft Position Sensor (CMPS) [Bank 1 / Intake] signal input
 Camshaft Position Sensor (CMPS) [Bank 1 / Intake]
88
 -
89
 Crankshaft Position Sensor (CKPS) [A] signal input
 Crankshaft Position Sensor (CKPS)
90
 Canister Close Valve (CCV) control output  (NON-Smart key type)
 Canister Close Valve (CCV)
Fuel pump relay control output (Smart key type)
 Fuel pump relay
91
 -
 　
92
 Waste Gate Solenoid Valve (WGV) control output
 Waste Gate Solenoid Valve (WGV)
93
 Main relay control output
 Main relay
94
 Start relay (Low) control output
 Start relay

ECM Terminal Input/Output Signal (M/T)
Connector [EGGM-AG]
Pin No.
 Description
 Condition
 Type
 Level
1
 Injector (Cylinder #3) [High] control output
 Relay ON/OFF
 DC voltage
 71V
2
 Injector (Cylinder #4) [High] control output
 Relay ON/OFF
 DC voltage
 71V
3
 Injector (Cylinder #2) [Low] control output
 Relay OFF
 DC voltage
 71V
Relay ON
 Max. 1.0V
4
 -
 　
 　
 　
5
 Heated Oxygen Sensor  (HO2S) [Bank 1/Sensor 1] heater control output
 Relay OFF
 DC voltage
 Battery voltage
Relay ON
 Max. 1.65V
6
 -
 　
 　
 　
7
 -
 　
 　
 　
8
 -
 　
 　
 　
9
 -
 　
 　
 　
10
 -
 　
 　
 　
11
 -
 　
 　
 　
12
 -
 　
 　
 　
13
 -
 　
 　
 　
14
 -




15
 CVVT Oil Control Valve (OCV) [Bank 1/Exhaust] control output
 Idle
 Pulse
 High: Battery voltage
Low: Max. 1.65V
16
 Injector (Cylinder #2) [High] control output
 Relay ON/OFF
 DC voltage
 71V
17
 Injector (Cylinder #1) [High] control output
 Relay ON/OFF
 DC voltage
 71V
18
 Injector (Cylinder #3) [Low] control output
 Relay OFF
 DC voltage
 71V
Relay ON
 Max. 1.0V
19
 -
 　
 　
 　
20
 Heated Oxygen Sensor  (HO2S) [Bank 1/Sensor2] heater control output
 Relay OFF
 DC voltage
 Battery voltage
Relay ON
 Max. 1.65V
21
 -
 　
 　
 　
22
 -
 　
 　
 　
23
 Engine Coolant Temperature Sensor (ECTS) signal input
 Idle
 Analog
 0.270 ~ 4.77V
24
 Sensor ground
 Idle
 DC voltage
 Max. 50mV
25
 -
 　
 　
 　
26
 Fuel Tank Pressure Sensor (FTPS) signal input
 Idle
 Analog
 0.3343 ~ 0.4667V
27
 Canister Close Valve (CCV) control output (Smart key type)
 Active
 DC voltage
 Battery voltage
Inactive
 Max. 1.76V
Fuel pump relay control output (NON-Smart key type)
 Relay OFF
 DC voltage
 Battery voltage
Relay ON
 Max. 1.44V
28
 -
 　
 　
 　
29
 A/C compressor relay control output
 Relay OFF
 DC voltage
 Battery voltage
Relay ON
 Max. 1.0V
30
 -
 　
 　
 　
31
 Ignition coil (Cylinder #3) control output
 Idle
 Pulse
 1st voltage: 370 ~ 430V
ON voltage: Max. 2.2V
32
 Ignition coil (Cylinder #1) control output
 Idle
 Pulse
 1st voltage: 370 ~ 430V
ON voltage: Max. 2.2V
33
 Injector (Cylinder #1) [Low] control output
 Relay OFF
 DC voltage
 71V
Relay ON
 Max. 1.0V
34
 Fuel Pressure Control Valve (FPCV) [High] control output
 Relay ON/OFF
 DC voltage
 16V
35
 ETC motor [-] control output
 Idle
 Pulse
 High: Battery voltage
Low: Max. 1.0V
36
 -
 　
 　
 　
37
 Knock Sensor (KS) signal input
 Knocking
 Variable
 　
Normal
 Frequency
 　
38
 Sensor ground
 Knocking
 Variable
 　
Normal
 Frequency
 　
39
 Blower switch Max. signal input
 　
 　
 　
40
 Brake Light switch signal input
 ON
 DC voltage
 Battery voltage
OFF
 Max. 2.25V
41
 -
 　
 　
 　
42
 -
 　
 　
 　
43
 -
 　
 　
 　
44
 -
 　
 　
 　
45
 CVVT Oil Control Valve (OCV) [Bank 1/Intake] control output
 Idle
 Pulse
 High: Battery voltage
Low: Max. 1.65V
46
 Ignition coil (Cylinder #4) control output
 Idle
 Pulse
 1st voltage: 370 ~ 430V
ON voltage: Max. 2.2V
47
 Ignition coil (Cylinder #2) control output
 Idle
 Pulse
 1st voltage: 370 ~ 430V
ON voltage: Max. 2.2V
48
 Injector (Cylinder #4) [Low] control output
 Relay OFF
 DC voltage
 71V
Relay ON
 Max. 1.0V
49
 Fuel Pressure Control Valve (FPCV) [Low] control output
 Relay OFF
 DC voltage
 16V
Relay ON
 Max. 1.0V
50
 ETC motor [+] control output
 Idle
 Pulse
 High: Battery voltage
Low: Max. 1.0V
51
 -
 　
 　
 　
52
 -
 　
 　
 　
53
 Brake Test switch signal input
 ON
 DC voltage
 Battery voltage
OFF
 Max. 2.25V
54
 -
 　
 　
 　
55
 Clutch switch signal input
 　
 　
 　
56
 Electric load signal input [Defrost]
 ON
 DC voltage
 Battery voltage
OFF
 Max. 2.25V
57
 Alternator COM signal output
 Idle
 Pulse
 High: Battery voltage
Low: Max. 0.6V
58
 Engine speed signal output


59
 Cooling fan relay [PWM] control output
 Relay OFF
 DC voltage
 Battery voltage
Relay ON
 Max. 1.76V
60
 -





Connector [EGGM-K]
Pin No.
 Description
 Condition
 Type
 Level
1
 ECM ground
 Idle
 DC voltage
 Max. 50mV
2
 ECM ground
 Idle
 DC voltage
 Max. 50mV
3
 ECM ground
 Idle
 DC voltage
 Max. 50mV
4
 Battery power (B+)
 IG OFF
 DC voltage
 Max. 1.0V
IG ON
 Battery voltage
5
 Battery power (B+)
 IG OFF
 DC voltage
 Max. 1.0V
IG ON
 Battery voltage
6
 Battery power (B+)
 IG OFF
 DC voltage
 Max. 1.0V
IG ON
 Battery voltage
7
 Battery power (B+)
 IG OFF
 DC voltage
 Max. 1.0V
IG ON
 Battery voltage
8
 Sensor ground
 Idle
 DC voltage
 Max. 50mV
9
 Accelerator Position Sensor (APS) 1 signal input
 Idle
 Analog
 0.674 ~ 4.379 V
10
 Sensor ground
 Idle
 DC voltage
 Max. 50mV
11
  -
 　
 　
 　
12
 Sensor ground
 Idle
 DC voltage
 Max. 50mV
13
  -
 　
 　
 　
14
 Throttle Position Sensor (TPS) 1 signal input
 Idle
 Analog
 0.33 ~ 4.72 V
15
  -
 　
 　
 　
16
  -
 　
 　
 　
17
 Fuel Level signal input
 Idle
 Analog
 0.193 ~ 4.0V
18
 Sensor power (+5V)
 IG OFF
 DC voltage
 Max. 0.5V
IG ON
 4.9 ~ 5.1V
19
  -
 　
 　
 　
20
 Sensor power (+5V)
 IG OFF
 DC voltage
 Max. 0.5V
IG ON
 4.9 ~ 5.1V
21
  -
 　
 　
 　
22
 Wiper switch signal input


23
 -
 　
 　
 　
24
 Alternator PWM signal output [FR]
 Idle
 Pulse
 High: Battery voltage
Low: Max. 1.5V
25
  -
 　
 　
 　
26
  -
 　
 　
 　
27
 -
 　
 　
 　
28
  -
 　
 　
 　
29
 Ignition switch signal input
 IG OFF
 DC voltage
 Max. 1.0V
IG ON
 Battery voltage
30
 Heated Oxygen Sensor  (HO2S) [Bank 1 / Sensor 2] signal input
 Engine
 Analog
 Rich: 0.6 ~ 1.0V
Running
 Lean: Max. 0.4V
31
 Accelerator Position Sensor (APS) 2 signal input
 Idle
 Analog
 0.261 ~ 2.204 V
32
 Sensor ground
 Idle
 DC voltage
 Max. 50mV
33
 Sensor ground
 Idle
 DC voltage
 Max. 50mV
34
  -
 　
 　
 　
35
 Sensor ground
 Idle
 DC voltage
 Max. 50mV
36
 Throttle Position Sensor (TPS) 2 signal input
 Idle
 Analog
 0.55 ~ 4.37 V
37
 Ambient Temperature Sensor (ATS) signal input
 　
 　
 　
38
 　
 　
 　
 　
39
 Sensor power (+5V)
 IG OFF
 DC voltage
 Max. 0.5V
IG ON
 4.9 ~ 5.1V
40
 Sensor power (+5V)
 IG OFF
 DC voltage
 Max. 0.5V
IG ON
 4.9 ~ 5.1V
41
 Sensor power (+5V)
 IG OFF
 DC voltage
 Max. 0.5V
IG ON
 4.9 ~ 5.1V
42
 Sensor power (+5V)
 IG OFF
 DC voltage
 Max. 0.5V
IG ON
 4.9 ~ 5.1V
43
 A/C switch input
 　
 　
 　
44
 A/C pressure switch
 　
 　
 　
45
 A/C Pressure Transducer (APT) signal input
 A/C ON
 Analog
 0.348 ~ 4.63 V
46
 Vehicle speed signal input
 Idle
 Pulse
 High: Min. 5.4V
Low: Max. 2.25V
47
 -
 　
 　
 　
48
  -
 　
 　
 　
49
  -
 　
 　
 　
50
 -
 　
 　
 　
51
  -
 　
 　
 　
52
 VS-/IP- (Common Ground for VS, IP)
 Idle
 DC voltage
 Max. 50mV
53
 Rc/Rp (Pump Cell Voltage)
 Idle
 Analog
 0 ~ 5.1V
54
  -
 　
 　
 　
55
 Sensor ground
 Idle
 DC voltage
 Max. 50mV
56
 -
 　
 　
 　
57
 Boost Pressure Sensor (BPS) signal input
 　
 　
 　
58
 Rail Pressure Sensor (RPS) signal input
 Idle
 Analog
 0.43 ~ 3.46V
59
 -
 　
 　
 　
60
 Start signal input
 ON
 DC voltage
 Battery voltage
OFF
 Max. 2V
61
 LIN communication signal input


62
 -
 　
 　
 　
63
 CAN [Low]
 RECESSIVE
 Pulse
 2.0 ~ 3.0V
DOMINANT
 0.5 ~ 2.25V
64
 Sensor ground
 Idle
 DC voltage
 Max. 50mV
65
 Camshaft Position Sensor (CMPS) [Bank 1 / Exhaust] signal input
 Idle
 Pulse
 High: min. 4.8V
Low: Max. 0.6V
66
  -
 　
 　
 　
67
 Crankshaft Position Sensor (CKPS) [B] signal input
 Idle
 Pulse
 Vp_p: Min. 1.0V
68
  -
 　
 　
 　
69
  -
 　
 　
 　
70
 RCV control solenoid valve control output
 　
 　
 　
71
  -
 　
 　
 　
72
 Purge Control Solenoid Valve (PCSV) control output
 Relay OFF
 DC voltage
 Battery voltage
Relay ON
 Max. 1.76V
73
  -
 　
 　
 　
74
 VS+ (NERNST Cell Voltage)
 Idle
 Analog
 0 ~ 5.1V
75
 Rc (Compensative Resistance)
 Idle
 Analog
 0 ~ 5.1V
76
 Sensor ground
 Idle
 DC voltage
 -
77
 Sensor ground
 Idle
 DC voltage
 Max. 50mV
78
 Sensor ground
 Idle
 DC voltage
 Max. 50mV
79
 Intake Temperature Sensor (IATS) signal input
 Idle
 Analog
 0.209 ~ 4.756V
80
 Manifold Absolute Pressure Sensor (MAPS) signal input
 Idle
 Analog
 0.6683 ~ 4.346V
81
  -
 　
 　
 　
82
  -
 　
 　
 　
83
 Immobilizer communication line
 When transmitting
 Pulse
 High: Min. 8.4V(at 14V)
Low: Max. 6.44V(at 14V)
84
  -
 　
 　
 　
85
 CAN [High]
 RECESSIVE
 Pulse
 2.0 ~ 3.0V
DOMINANT
 2.75 ~ 4.5V
86
 Sensor ground
 Idle
 DC voltage
 Max. 50mV
87
 Camshaft Position Sensor (CMPS) [Bank 1 / Intake] signal input
 Idle
 Pulse
 High: min. 4.8V
Low: Max. 0.6V
88
 -
 　
 　
 　
89
 Crankshaft Position Sensor (CKPS) [A] signal input
 Idle
 Pulse
 Vp_p: Min. 1.0V
90
 Canister Close Valve (CCV) control output (NON-Smart key type)
 Active
 DC voltage
 Battery voltage
Inactive
 Max. 1.76V
Fuel pump relay control output (Smart key type)
 Relay OFF
 DC voltage
 Battery voltage
Relay ON
 Max. 1.44V
91
  -
 　
 　
 　
92
  Waste Gate Solenoid Valve (WGV) control output
 　
 　
 　
93
 Main relay control output
 Relay OFF
 DC voltage
 Battery voltage
Relay ON
 Max. 1.7V
94
 Start relay control output
 Relay OFF
 DC voltage
 Battery voltage
Relay ON
 Max. 2.64V

ECM Terminal And Input/Output signal [A/T]

ECM Terminal Function (A/T)
Connector [EGGA-A]
Pin No.
 Description
 Connected to
1
 Injector (Cylinder #1) [High] control output
 Injector (Cylinder #1)
2
 Injector (Cylinder #4) [High] control output
 Injector (Cylinder #4)
3
 Injector (Cylinder #2) [High] control output
 Injector (Cylinder #2)
4
 Injector (Cylinder #3) [High] control output
 Injector (Cylinder #3)
5
 -
 　
6
 -
 　
7
 Purge Control Solenoid Valve (PCSV) control output
 Purge Control Solenoid Valve (PCSV)
8
 -
9
 -
 　
10
 -
11
 Sensor power (+5V)
 Manifold Absolute Pressure Sensor (MAPS)
Fuel Tank Pressure Sensor (FTPS)
12
 Throttle Position Sensor (TPS) 1 signal input
 Throttle Position Sensor (TPS) 1
13
 Sensor ground
 Engine Coolant Temperature Sensor (ECTS)
14
 -
 　
15
 Sensor power (+5V)
 Accelerator Position Sensor (APS) 2
16
 -
 　
17
 Sensor ground
 Ambient Temperature Sensor (ATS)
18
 Sensor power (+5V)
 Throttle Position Sensor (TPS) 1,2
19
 Sensor power (+5V)
 Accelerator Position Sensor (APS) 1
20
 -
21
 Sensor ground
 Boost Pressure Sensor (BPS)
22
 -
 　
23
 -
 　
24
 Heated Oxygen Sensor [Bank 1/Sensor 1] heater control output
 Heated Oxygen Sensor [Bank 1/Sensor 1]
25
 Heated Oxygen Sensor [Bank 1/Sensor 2] heater control output
 Heated Oxygen Sensor [Bank 1/Sensor 2]
26
 -
 　
27
 -
 　
28
 -
 　
29
 -
 　
30
 A/C pressure switch signal input
 A/C pressure switch
31
 A/C switch signal input
 A/C switch
32
 Sensor ground
 Throttle Position Sensor (TPS) 1,2
33
 Boost Pressure Sensor (BPS) signal input
 Boost Pressure Sensor (BPS)
34
 Throttle Position Sensor (TPS) 2 signal input
 Throttle Position Sensor (TPS) 2
35
 -
 　
36
 -
 　
37
 -
 　
38
 -
 　
39
 -
 　
40
 -
 　
41
 Sensor ground
 Heated Oxygen Sensor [Bank 1/Sensor 2]
42
 -
 　
43
 -
 　
44
 -
 　
45
 -
 　
46
 -
 　
47
 -
 　
48
 -
 　
49
 -
 　
50
 -
 　
51
 Alternator PWM signal output [FR]
 Alternator
52
 -
 　
53
 Brake switch signal input [FR]
 Brake switch
54
 Accelerator Position Sensor (APS) 1 signal input
 Accelerator Position Sensor (APS) 1
55
 Blower switch Max. signal input
 Heater control module
56
 Accelerator Position Sensor (APS) 2 signal input
 Accelerator Position Sensor (APS) 2
57
 -
 　
58
 -
 　
59
 -
 　
60
 Sensor ground
 Knock Sensor (KS)
61
 Knock Sensor (KS) signal input
 Knock Sensor (KS)
62
 Sensor ground
 Accelerator Position Sensor (APS) 1
63
 Sensor ground
 Accelerator Position Sensor (APS) 2
64
 Injector (Cylinder #1) [Low] control output
 Injector (Cylinder #1)
65
 Injector (Cylinder #4) [Low] control output
 Injector (Cylinder #4)
66
 Injector (Cylinder #2) [Low] control output
 Injector (Cylinder #2)
67
 Injector (Cylinder #3) [Low] control output
 Injector (Cylinder #3)
68
 -
 　
69
 -
 　
70
 -
 　
71
 -
 　
72
 -
 　
73
 -
 　
74
 -
 　
75
 -
 　
76
 -
 　
77
 Fuel Tank Pressure Sensor (FTPS) signal input
 Fuel Tank Pressure Sensor (FTPS)
78
 Fuel Level Sender (FLS) signal input
 Fuel Level Sender (FLS)
79
 -
 -
80
 Ambient Temperature Sensor (ATS) signal input
 Ambient Temperature Sensor (ATS)
81
 -
 　
82
 Engine Coolant Temperature Sensor (ECTS) signal input
 Engine Coolant Temperature Sensor (ECTS)
83
 VS-/IP- (Common Ground for VS, IP)
 Heated Oxygen Sensor [Bank 1/Sensor 1]
84
 VS+ (NERNST Cell Voltage)
 Heated Oxygen Sensor [Bank 1/Sensor 1]
85
 Fuel Pressure Control Valve (FPCV) [Low] control output
 Fuel Pressure Control Valve (FPCV)
86
 Fuel Pressure Control Valve (FPCV) [High] control output
 Fuel Pressure Control Valve (FPCV)
87
 -
 　
88
 -
 　
89
 -
 　
90
 -
 　
91
 -
 　
92
 -
 　
93
 -
 　
94
 -
 　
95
 -
 　
96
 -
 　
97
 -
 　
98
 -
 　
99
 -
 　
100
 -
 　
101
 -
 　
102
 -
 　
103
 Heated Oxygen Sensor [Bank 1/Sensor 2] signal input
 Heated Oxygen Sensor [Bank 1/Sensor 2]
104
 Rc/Rp (Pump Cell Voltage)
 Heated Oxygen Sensor [Bank 1/Sensor 1]
105
 Rc (Compensative Resistance)
 Heated Oxygen Sensor [Bank 1/Sensor 1]

Connector [EGGA-K]
Pin No.
 Description
 Connected to
1
 ECM ground
 Chassis ground
2
 ECM ground
 Chassis ground
3
 Battery power (B+)
 Ignition switch
4
 ECM ground
 Chassis ground
5
 Battery power (B+)
 Ignition switch
6
 Battery power (B+)
 Main relay
7
 Sensor ground
 Camshaft Position Sensor (CMPS) [Bank 1 / Exhaust]
8
 Sensor ground
 Manifold Absolute Pressure Sensor (MAPS)
9
 -
 　
10
 Sensor ground
 Rail Pressure Sensor (RPS)
11
 -
 　
12
 -
 　
13
 Sensor power (+5V)
 Camshaft Position Sensor (CMPS) [Bank 1 / Intake]
Camshaft Position Sensor (CMPS) [Bank 1 / Exhaust]
14
 -
 　
15
 Sensor power (+5V)
 Rail Pressure Sensor (RPS)
A/C Pressure Transducer (APT)
16
 Alternator PWM signal output [COM]
 Alternator
17
 -
 　
18
 -
 　
19
 -
 　
20
 Cooling fan relay [PWM] control output
 Cooling fan relay
21
 -
 　
22
 ETC motor [-] control output
 ETC motor
23
 ETC motor [+] control output
 ETC motor
24
 -
25
 Sensor ground
 A/C Pressure Transducer (APT)
26
 Manifold Absolute Pressure Sensor (MAPS) signal input
 Manifold Absolute Pressure Sensor (MAPS)
27
 Rail Pressure Sensor (RPS) signal input
 Rail Pressure Sensor (RPS)
28
 Intake Air Temperature Sensor (IATS) signal input
 Intake Air Temperature Sensor (IATS)
29
 Electric load signal input [Defrost]
 Alternator
30
 -
31
 -
32
 -
 　
33
 -
 　
34
 -
 　
35
 -
36
 Cooling fan relay [High] control output
 Cooling fan relay
37
 Canister Close Valve (CCV) control output (NON-Smart key type)
 Canister Close Valve (CCV)
Fuel pump relay control output (Smart key type)
 Fuel pump relay
38
 -
 　
39
 CVVT Oil Control Valve (OCV) [Bank 1/Exhaust] control output
 CVVT Oil Control Valve (OCV) [Bank 1/Exhaust]
40
 Ignition coil (Cylinder #2) control output
 Ignition coil (Cylinder #2)
41
 -
 　
42
 Sensor ground
 Fuel Tank Pressure Sensor (FTPS)
43
 -
44
 A/C Pressure Transducer (APT) signal input
 A/C Pressure Transducer (APT)
45
 -
 　
46
 Brake Light switch signal input
 Brake switch
47
 Camshaft Position Sensor (CMPS) [Bank 1 / Exhaust] signal input
 Camshaft Position Sensor (CMPS) [Bank 1 / Exhaust]
48
 -
 　
49
 Wiper switch signal input
 Wiper switch
50
 Main relay control output
 Main relay
51
 Fuel pump relay control output (NON-Smart key type)
 Fuel pump relay
Canister Close Valve (CCV) control output (Smart key type)
 Canister Close Valve (CCV)
52
 -
 　
53
 -
 　
54
 -
 -
55
 -
 　
56
 CVVT Oil Control Valve (OCV) [Bank 1/Intake] control output
 CVVT Oil Control Valve (OCV) [Bank 1/Intake]
57
 Ignition coil (Cylinder #1) control output
 Ignition coil (Cylinder #1)
58
 -
 　
59
 -
 　
60
 CAN [High]
 Other control module, Data Link Connector (DLC), Multi-Purpose Check Connector
61
 Immobilizer communication line
 Smart Key Control Module [With Button Engine Start System]
Immobilizer Control Module [Without Button Engine Start System]
62
 LIN communication signal input
 Battery sensor
63
 Engine rpm signal
 Cluster
64
 Vehicle speed signal input
 Vehicle Speed Sensor
65
 -
 　
66
 Camshaft Position Sensor (CMPS) [Bank 1 / Intake] signal input
 Camshaft Position Sensor (CMPS) [Bank 1 / Intake]
67
 Start signal input
 PDM module
68
 Ignition switch signal input
 Ignition switch
69
 -
 　
70
 -
 　
71
 Start relay control output
 Start relay
72
 -
 　
73
 -
 　
74
 Ignition coil (Cylinder #4) control output
 Ignition coil (Cylinder #4)
75
 Battery power (B+)
 Main relay
76
 -
 　
77
 CAN [Low]
 Other control module, Data Link Connector (DLC), Multi-Purpose Check Connector
78
 Sensor ground
 Crankshaft Position Sensor (CKPS)
79
 Crankshaft Position Sensor (CKPS) [A] signal input
 Crankshaft Position Sensor (CKPS)
80
 Sensor ground
 Camshaft Position Sensor (CMPS) [Bank 1 / Intake]
81
 -
82
 -
83
 A/C compressor relay control output
 A/C compressor relay
84
 RCV control solenoid valve control output
 RCV control solenoid valve
85
 -
86
 -
 　
87
 -
 　
88
 -
89
 Waste Gate Solenoid Valve (WGV) control output
 Waste Gate Solenoid Valve (WGV)
90
 -
 　
91
 Ignition coil (Cylinder #3) control output
 Ignition coil (Cylinder #3)

ECM Terminal Input/Output Signal (A/T)
Connector [EGGA-A]
Pin No.
 Description
 Condition
 Type
 Level
1
 Injector (Cylinder #1) [High] control output
 Relay ON/OFF
 DC voltage
 71V
2
 Injector (Cylinder #4) [High] control output
 Relay ON/OFF
 DC voltage
 71V
3
 Injector (Cylinder #2) [High] control output
 Relay ON/OFF
 DC voltage
 71V
4
 Injector (Cylinder #3) [High] control output
 Relay ON/OFF
 DC voltage
 71V
5
  -
 　
 　
 　
6
  -
 　
 　
 　
7
 Purge Control Solenoid Valve (PCSV) control output
 Relay OFF
 DC voltage
 Battery voltage
Relay ON
 Max. 1.76V
8
 -




9
  -
 　
 　
 　
10
 -




11
 Sensor power (+5V)
 IG OFF
 DC voltage
 Max. 0.5V
IG ON
 4.9 ~ 5.1V
12
 Throttle Position Sensor (TPS) 1 signal input
 Idle
 Analog
 0.33 ~ 4.72 V
13
 Sensor ground
 Idle
 DC voltage
 Max. 50mV
14
  -
 　
 　
 　
15
 Sensor power (+5V)
 IG OFF
 DC voltage
 Max. 0.5V
IG ON
 4.9 ~ 5.1V
16
  -
 　
 　
 　
17
 Sensor ground
 Idle
 DC voltage
 Max. 50mV
18
 Sensor power (+5V)
 IG OFF
 DC voltage
 Max. 0.5V
IG ON
 4.9 ~ 5.1V
19
 Sensor power (+5V)
 IG OFF
 DC voltage
 Max. 0.5V
IG ON
 4.9 ~ 5.1V
20
 -


21
 Sensor ground
 Idle
 DC voltage
 Max. 50mV
22
  -
 　
 　
 　
23
  -
 　
 　
 　
24
 Heated Oxygen Sensor  (HO2S) [Bank 1/Sensor 1] heater control output
 Relay OFF
 DC voltage
 Battery voltage
Relay ON
 Max. 1.65V
25
 Heated Oxygen Sensor  (HO2S) [Bank 1/Sensor 2] heater control output
 Relay OFF
 DC voltage
 Battery voltage
Relay ON
 Max. 1.65V
26
  -
 　
 　
 　
27
  -
 　
 　
 　
28
  -
 　
 　
 　
29
  -
 　
 　
 　
30
 A/C pressure switch signal input
 ON
 DC voltage
 Battery voltage
OFF
 Max. 2V
31
 A/C switch signal input
 ON
 DC voltage
 Battery voltage
OFF
 Max. 2V
32
 Sensor ground
 Idle
 DC voltage
 Max. 50mV
33
 Boost Pressure Sensor (BPS) signal input
 　
 　
 　
34
 Throttle Position Sensor (TPS) 2 signal input
 Idle
 Analog
 0.55 ~ 4.37 V
35
  -
 　
 　
 　
36
  -
 　
 　
 　
37
  -
 　
 　
 　
38
  -
 　
 　
 　
39
  -
 　
 　
 　
40
  -
 　
 　
 　
41
 Sensor ground
 Idle
 DC voltage
 Max. 50mV
42
  -
 　
 　
 　
43
  -
 　
 　
 　
44
  -
 　
 　
 　
45
  -
 　
 　
 　
46
  -
 　
 　
 　
47
  -
 　
 　
 　
48
  -
 　
 　
 　
49
  -
 　
 　
 　
50
  -
 　
 　
 　
51
 Alternator PWM signal output [FR]
 Idle
 Pulse
 High: Battery voltage
Low: Max. 1.5V
52
  -
 　
 　
 　
53
 Brake switch signal input
 ON
 DC voltage
 Battery voltage
OFF
 Max. 2.25V
54
 Accelerator Position Sensor (APS) 1 signal input
 Idle
 Analog
 0.674 ~ 4.379 V
55
 Blower switch Max. signal input


56
 Accelerator Position Sensor (APS) 2 signal input
 Idle
 Analog
 0.261 ~ 2.204 V
57
  -
 　
 　
 　
58
  -
 　
 　
 　
59
  -
 　
 　
 　
60
 Sensor ground
 Knocking
 Variable
 　
Normal
 Frequency
 　
61
 Knock Sensor (KS) signal input
 Knocking
 Variable
 　
Normal
 Frequency
 　
62
 Sensor ground
 Idle
 DC voltage
 Max. 50mV
63
 Sensor ground
 Idle
 DC voltage
 Max. 50mV
64
 Injector (Cylinder #1) [Low] control output
 Relay OFF
 DC voltage
 71V
Relay ON
 Max. 1.0V
65
 Injector (Cylinder #4) [Low] control output
 Relay OFF
 DC voltage
 71V
Relay ON
 Max. 1.0V
66
 Injector (Cylinder #2) [Low] control output
 Relay OFF
 DC voltage
 71V
Relay ON
 Max. 1.0V
67
 Injector (Cylinder #3) [Low] control output
 Relay OFF
 DC voltage
 71V
Relay ON
 Max. 1.0V
68
  -
 　
 　
 　
69
  -
 　
 　
 　
70
  -
 　
 　
 　
71
  -
 　
 　
 　
72
  -
 　
 　
 　
73
  -
 　
 　
 　
74
  -
 　
 　
 　
75
  -
 　
 　
 　
76
  -
 　
 　
 　
77
 Fuel Tank Pressure Sensor (FTPS) signal input
 Idle
 Analog
 0.3343 ~ 0.4667V
78
 Fuel Level signal input
 Idle
 Analog
 0.193 ~ 4.0V
79
 -
 　
 　
 　
80
 Ambient Temperature Sensor (ATS) signal input
 　
 　
 　
81
  -
 　
 　
 　
82
 Engine Coolant Temperature Sensor (ECTS) signal input
 Idle
 Analog
 0.270 ~ 4.77V
83
 VS-/IP- (Common Ground for VS, IP)
 Idle
 DC voltage
 Max. 50mV
84
 VS+ (NERNST Cell Voltage)
 Idle
 Analog
 0 ~ 5.1V
85
 Fuel Pressure Control Valve (FPCV) [Low] control output
 Relay OFF
 DC voltage
 16V
Relay ON
 Max. 1.0V
86
 Fuel Pressure Control Valve (FPCV) [High] control output
 Relay ON/OFF
 DC voltage
 16V
87
  -
 　
 　
 　
88
  -
 　
 　
 　
89
  -
 　
 　
 　
90
  -
 　
 　
 　
91
  -
 　
 　
 　
92
  -
 　
 　
 　
93
  -
 　
 　
 　
94
  -
 　
 　
 　
95
  -
 　
 　
 　
96
  -
 　
 　
 　
97
  -
 　
 　
 　
98
  -
 　
 　
 　
99
  -
 　
 　
 　
100
  -
 　
 　
 　
101
  -
 　
 　
 　
102
  -
 　
 　
 　
103
 Heated Oxygen Sensor  (HO2S) [Bank 1 / Sensor 2] signal input
 Engine
 Analog
 Rich: 0.6 ~ 1.0V
Running
 Lean: Max. 0.4V
104
 Rc/Rp (Pump Cell Voltage)
 Idle
 Analog
 0 ~ 5.1V
105
 Rc (Compensative Resistance)
 Idle
 Analog
 0 ~ 5.1V

Connector [EGGA-K]
Pin No.
 Description
 Condition
 Type
 Level
1
 ECM ground
 Idle
 DC voltage
 Max. 50mV
2
 ECM ground
 Idle
 DC voltage
 Max. 50mV
3
 Battery power (B+)
 IG OFF
 DC voltage
 Max. 1.0V
IG ON
 Battery voltage
4
 ECM ground
 Idle
 DC voltage
 Max. 50mV
5
 Battery power (B+)
 IG OFF
 DC voltage
 Max. 1.0V
IG ON
 Battery voltage
6
 Battery power (B+)
 IG OFF
 DC voltage
 Max. 1.0V
IG ON
 Battery voltage
7
 Sensor ground
 Idle
 DC voltage
 Max. 50mV
8
 Sensor ground
 Idle
 DC voltage
 Max. 50mV
9
  -
 　
 　
 　
10
 Sensor ground
 Idle
 DC voltage
 Max. 50mV
11
  -
 　
 　
 　
12
  -
 　
 　
 　
13
 Sensor power (+5V)
 IG OFF
 DC voltage
 Max. 0.5V
IG ON
 4.9 ~ 5.1V
14
  -
 　
 　
 　
15
 Sensor power (+5V)
 IG OFF
 DC voltage
 Max. 0.5V
IG ON
 4.9 ~ 5.1V
16
 Alternator PWM signal output [COM]
 Idle
 Pulse
 High: Battery voltage
Low: Max. 0.6V
17
  -
 　
 　
 　
18
  -
 　
 　
 　
19
  -
 　
 　
 　
20
 Cooling fan relay [PWM] control output
 Relay OFF
 DC voltage
 Battery voltage
Relay ON
 Max. 1.76V
21
  -
 　
 　
 　
22
 ETC motor [-] control output
 Idle
 Pulse
 High: Battery voltage
Low: Max. 1.0V
23
 ETC motor [+] control output
 Idle
 Pulse
 High: Battery voltage
Low: Max. 1.0V
24
 -
 　
 　
 　
25
 Sensor ground
 Idle
 DC voltage
 Max. 50mV
26
 Manifold Absolute Pressure Sensor (MAPS) signal input
 Idle
 Analog
 0.6683 ~ 4.346V
27
 Rail Pressure Sensor (RPS) signal input
 Idle
 Analog
 0.43 ~ 3.46V
28
 Intake Temperature Sensor (IATS) signal input
 Idle
 Analog
 0.209 ~ 4.756V
29
 Electric load signal input [Defrost]
 ON
 DC voltage
 Battery voltage
OFF
 Max. 2.25V
30
 -




31
 -
 　
 　
 　
32
  -
 　
 　
 　
33
  -
 　
 　
 　
34
  -
 　
 　
 　
35
 -
 　
 　
 　
36
 Cooling fan relay [High] control output
 Relay OFF
 DC voltage
 Battery voltage
Relay ON
 Max. 1.76V
37
 Canister Close Valve (CCV) control output (NON-Smart key type)
 Active
 DC voltage
 Battery voltage
Inactive
 Max. 1.76V
Fuel pump relay control output (Smart key type)
 Relay OFF
 DC voltage
 Battery voltage
Relay ON
 Max. 1.44V
38
  -
 　
 　
 　
39
 CVVT Oil Control Valve (OCV) [Bank 1/Exhaust] control output
 Idle
 Pulse
 High: Battery voltage
Low: Max. 1.65V
40
 Ignition coil (Cylinder #2) control output
 Idle
 Pulse
 1st voltage: 370 ~ 430V
ON voltage: Max. 2.2V
41
  -
 　
 　
 　
42
 Sensor ground
 Idle
 DC voltage
 Max. 50mV
43
  -


44
 A/C Pressure Transducer (APT) signal input
 A/C ON
 Analog
 0.348 ~ 4.63 V
45
  -
 　
 　
 　
46
 Brake Light switch signal input
 ON
 DC voltage
 Battery voltage
OFF
 Max. 2.25V
47
 Camshaft Position Sensor (CMPS) [Bank 1 / Exhaust] signal input
 Idle
 Pulse
 High: min. 4.8V
Low: Max. 0.6V
48
 -
 　
 　
 　
49
 Wiper switch signal input
 ON
 DC voltage
 Battery voltage
OFF
 Max. 2V
50
 Main relay control output
 Relay OFF
 DC voltage
 Battery voltage
Relay ON
 Max. 1.7V
51
 Canister Close Valve (CCV) control output (Smart key type)
 Active
 DC voltage
 Battery voltage
Inactive
 Max. 1.76V
Fuel pump relay control output (NON-Smart key type)
 Relay OFF
 DC voltage
 Battery voltage
Relay ON
 Max. 1.44V
52
  -
 　
 　
 　
53
  -
 　
 　
 　
54
 -
 　
 　
 　
55
  -
 　
 　
 　
56
 CVVT Oil Control Valve (OCV) [Bank 1/Intake] control output
 Idle
 Pulse
 High: Battery voltage
Low: Max. 1.65V
57
 Ignition coil (Cylinder #1) control output
 Idle
 Pulse
 1st voltage: 370 ~ 430V
ON voltage: Max. 2.2V
58
  -
 　
 　
 　
59
 -
 　
 　
 　
60
 CAN [High]
 RECESSIVE
 Pulse
 2.0 ~ 3.0V
DOMINANT
 2.75 ~ 4.5V
61
 Immobilizer communication line
 When transmitting
 Pulse
 High: Min. 8.4V(at 14V)
Low: Max. 6.44V(at 14V)
62
 LIN communication signal input
 RECESSIVE
 Pulse
 max 5.6V (at 14V)
DOMINANT
 min 8.4V (at 14V)
63
 Engine rpm signal


64
 Vehicle speed signal input
 Idle
 Pulse
 High: Min. 5.4V
Low: Max. 2.25V
65
  -
 　
 　
 　
66
 Camshaft Position Sensor (CMPS) [Bank 1 / Intake] signal input
 Idle
 Pulse
 High: min. 4.8V
Low: Max. 0.6V
67
 Start signal input
 ON
 DC voltage
 Battery voltage
OFF
 Max. 2V
68
 Ignition switch signal input
 IG OFF
 DC voltage
 Max. 1.0V
IG ON
 Battery voltage
69
  -
 　
 　
 　
70
  -
 　
 　
 　
　
 　
71
 Start relay control output
 Relay OFF
 DC voltage
 Battery voltage
Relay ON
 Max. 2.64V
72
  -
 　
 　
 　
73
  -
 　
 　
 　
74
 Ignition coil (Cylinder #4) control output
 Idle
 Pulse
 1st voltage: 370 ~ 430V
ON voltage: Max. 2.2V
75
 Battery power (B+)
 IG OFF
 DC voltage
 Max. 1.0V
IG ON
 Battery voltage
76
 -
 　
 　
 　
77
 CAN [Low]
 RECESSIVE
 Pulse
 2.0 ~ 3.0V
DOMINANT
 0.5 ~ 2.25V
78
 Sensor ground
 Idle
 DC voltage
 Max. 50mV
79
 Crankshaft Position Sensor (CKPS) [A] signal input
 Idle
 Pulse
 Vp_p: Min. 1.0V
80
 Sensor ground
 Idle
 DC voltage
 Max. 50mV
81
 -


82
 -


83
 A/C compressor relay control output
 Relay OFF
 DC voltage
 Battery voltage
Relay ON
 Max. 1.0V
84
 RCV control solenoid valve control output
 　
 　
 　
85
 -




86
  -
 　
 　
 　
87
  -
 　
 　
 　
88
 -
 　
 　
 　
89
 Waste Gate Solenoid Valve (WGV) control output
 　
 　
 　
90
  -
 　
 　
 　
91
 Ignition coil (Cylinder #3) control output
 Idle
 Pulse
 1st voltage: 370 ~ 430V
ON voltage: Max. 2.2V

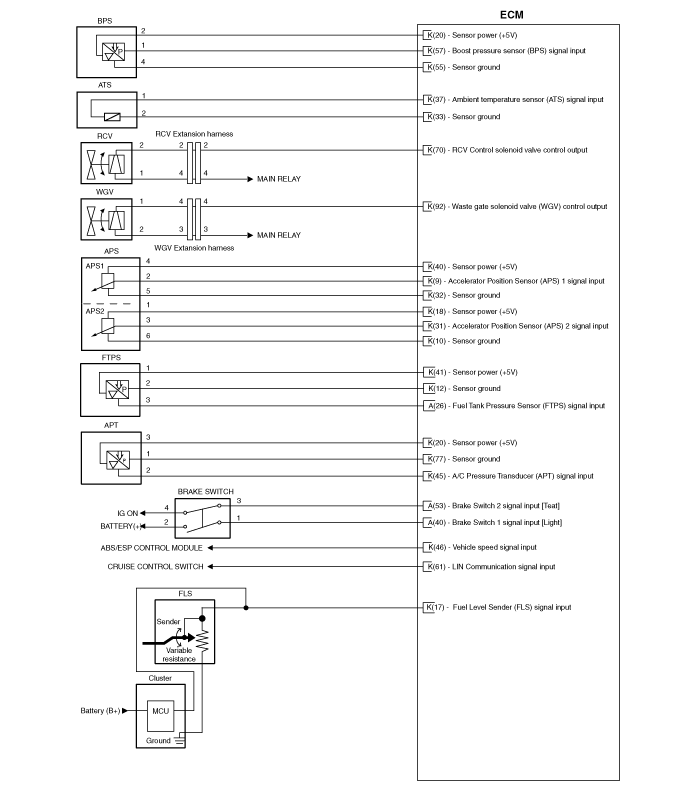

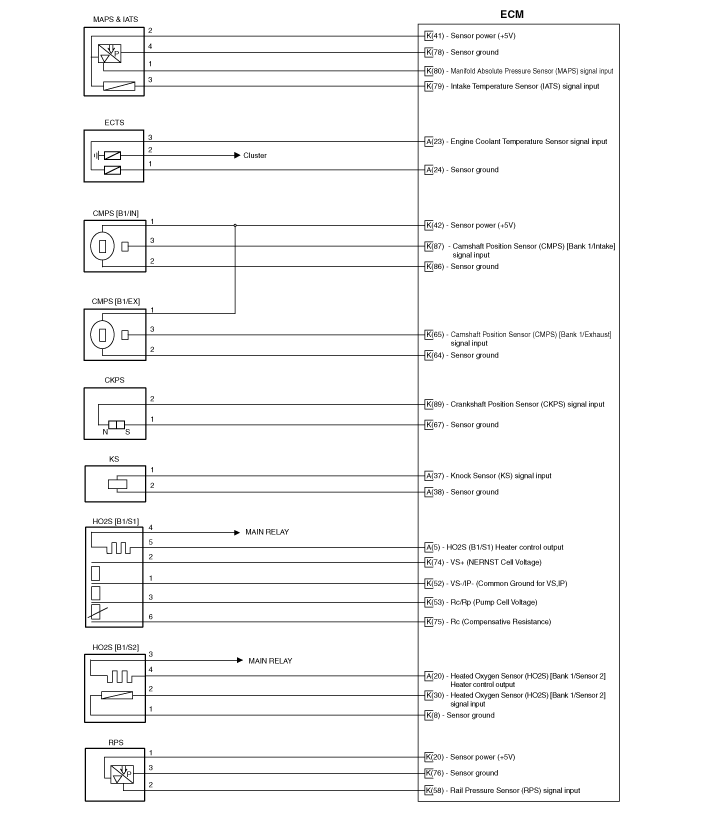

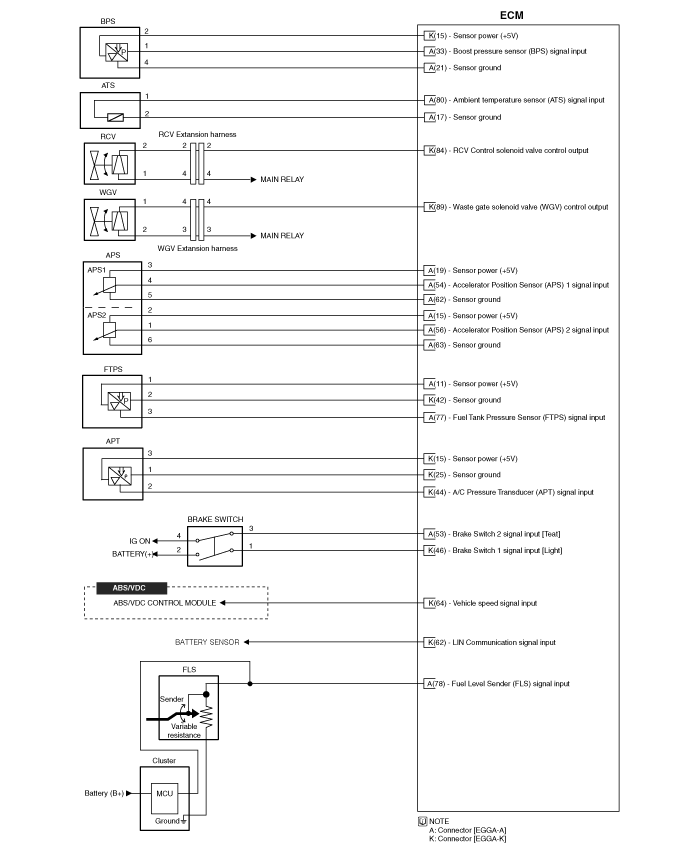

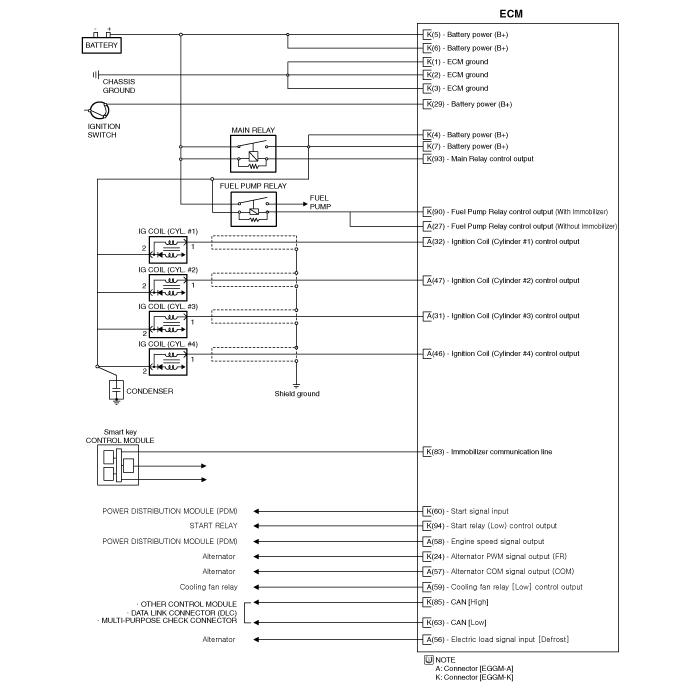

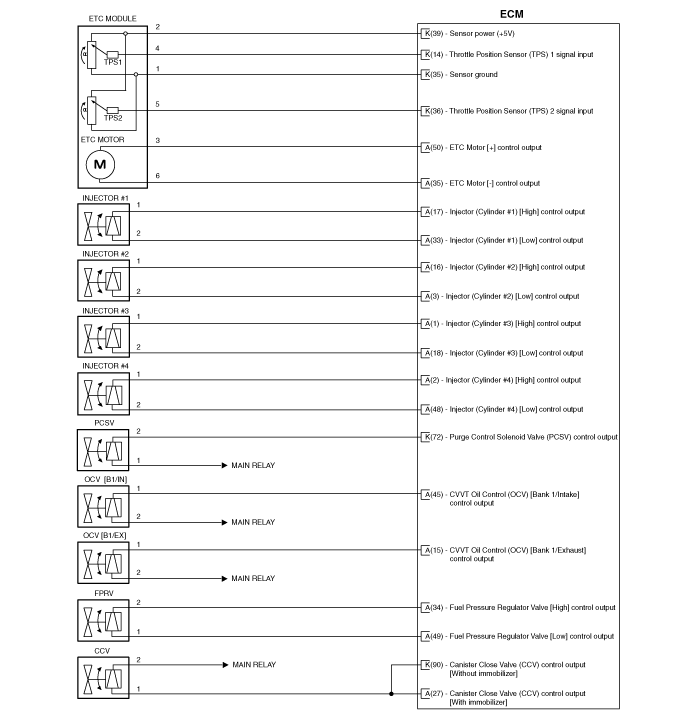

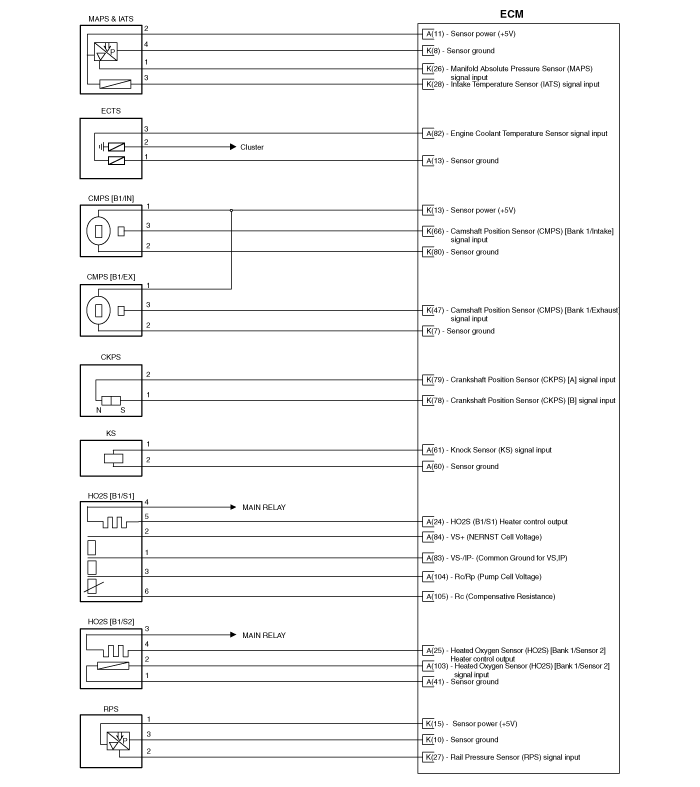

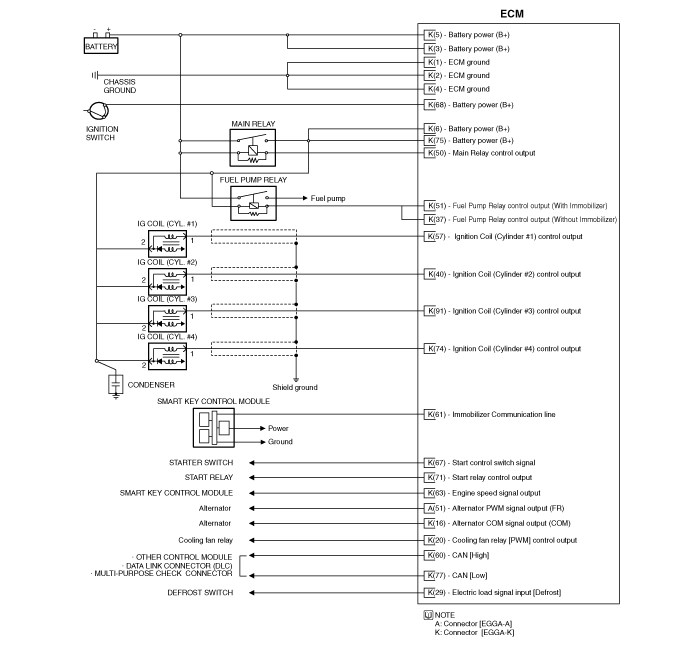

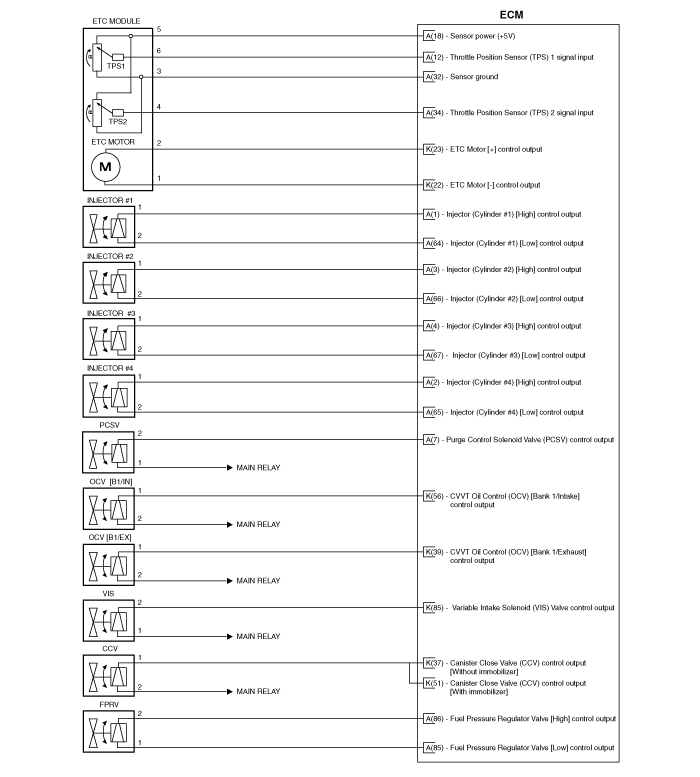

Circuit Diagram
(M/T)

(A/T)
