Component Parts And Function

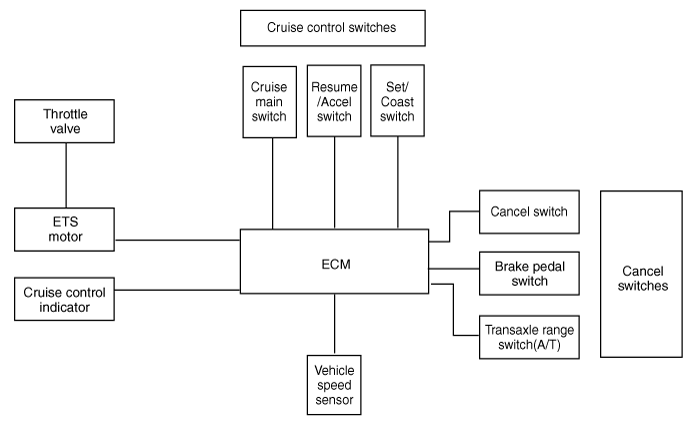

Outline
Component part
|
Function
|
Vehicle-speed sensor
|
Converts
vehicle speed to pulse.
|
ECM
|
Receives
signals from sensor and control switches.
|
Cruise
control indicator
|
Illuminate
when CRUISE main switch is ON (Built into cluster)
|
Cruise
Control switches
|
ON/OFF
switch
|
Switch for
automatic speed control power supply.
|
Resume/Accel
switch
|
Controls automatic speed control functions by
Resume/Accel switch (Set/Coast switch)
|
Set/Coast
switch
|
Cancel
switches
|
Cancel
switch
|
Sends
cancel signals to ECM.
|
Brake-pedal
switch
|
Transaxle
range switch (A/T)
|
ETS
motor
|
Regulates the
throttle valve to the set opening by
ECM.
|
* ETS : Electronic
Throttle System
