Components

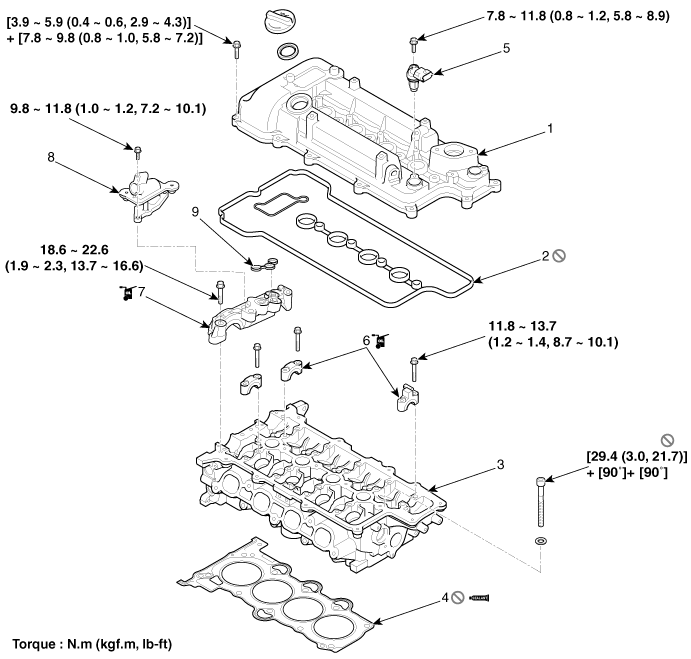

1. Cylinder head cover 2. Cylinder head cover gasket 3. Cylinder head assembly 4. Cylinder head gasket 5. Camshaft position sensor

6. Camshaft bearing cap 7. Camshaft front bearing cap 8. OCV (Oil Control Valve) adapter 9. O-ring

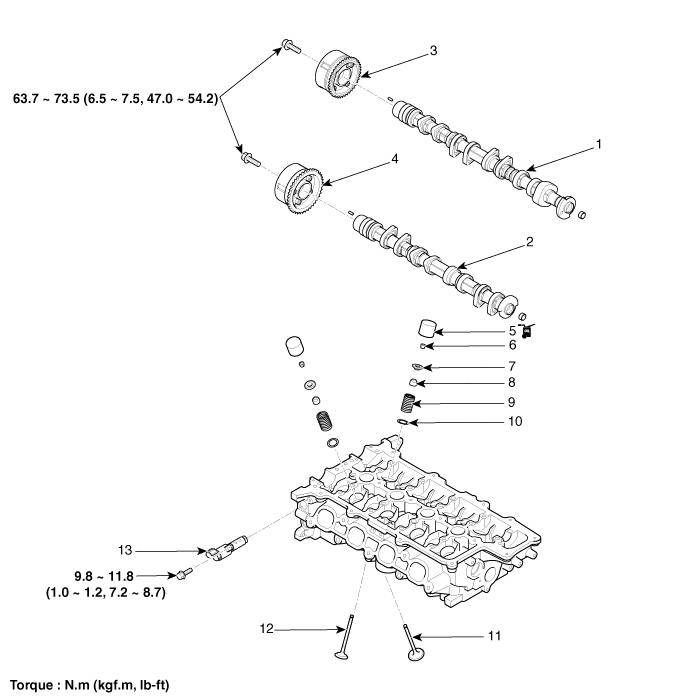

1. Exhaust camshaft 2. Intake camshaft 3. Exhaust CVVT assembly 4. Intake CVVT assembly 5. Mechanical Lash Adjuster (MLA) 6. Retainer lock 7. Retainer

8. Valve stem seal 9. Valve spring 10. Valve spring seat 11. Intake valve 12. Exhaust valve 13. Oil Control Valve (OCV)
