CORNER JUNCTION REMOVAL [PANEL REPLACEMENT]
CORNER JUNCTION REMOVAL [PANEL REPLACEMENT]
SM2333627
id098008611400
Symbol Mark
am3zzb00000385
|
Removal Procedure
1.Using a belt sander, grind the arc welds in the 4 locations in area A shown in the figure from the interior.
2.Drill the spot welds in the 22 locations in area B shown in the figure from the interior.

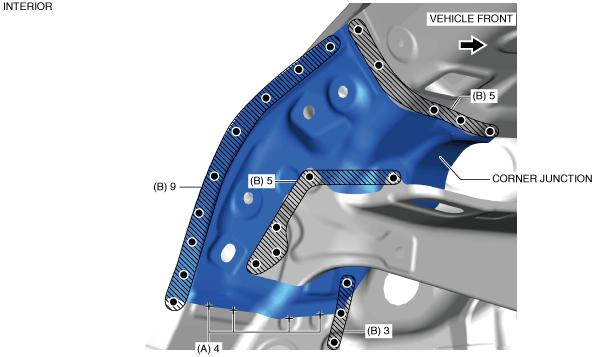

am3zzb00000410
|
3.Remove the corner junction.
