COWL SIDE REINFORCEMENT (FRONT) COMPONENT INSTALLATION [PANEL REPLACEMENT]
COWL SIDE REINFORCEMENT (FRONT) COMPONENT INSTALLATION [PANEL REPLACEMENT]
SM2333672
id098008950100
Symbol Mark
am3zzb00000548
|
Installation Procedure
1.When installing new parts, measure and adjust the body as necessary to conform with standard dimensions.
2.Before installing the new part, drill holes for plug welding in the 7 location in area A and the 4 locations in area C shown in the figure.
3.After temporarily installing new parts, make sure the related parts fit properly.
4.Plug welds in the 7 locations in area A shown in the figure.

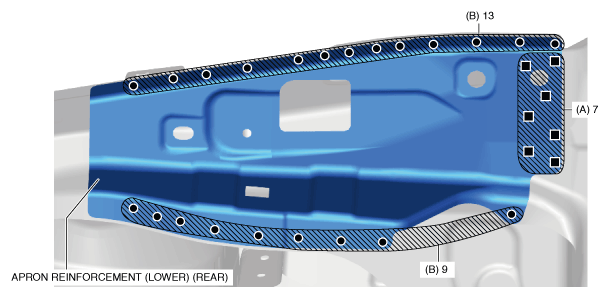

5.Spot welds in the 22 locations in area B shown in the figure and install the apron reinforcement (lower) (rear).
am3zzb00000483
|
6.Plug welds in the 4 locations in area C shown in the figure.

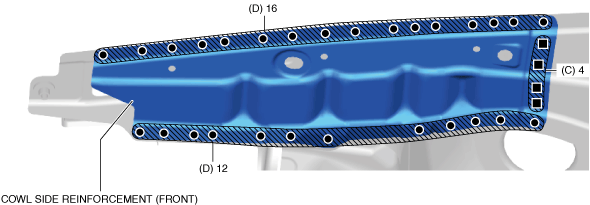

7.Spot welds in the 28 locations in area D shown in the figure and install the cowl side reinforcement (front).
