Installation Procedure

4SD

1.When installing new parts, measure and adjust the body as necessary to conform with standard dimensions.

2.Drill holes for the plug welding before installing the new parts.

3.After temporarily installing new parts, make sure the related parts fit properly.

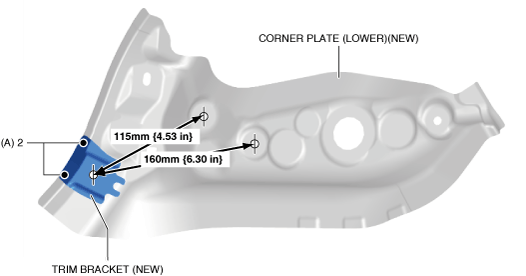

4.Before installing a corner plate (lower) (new) to the vehicle body, spot welds in the 2 locations in area A shown in the figure and install the trim bracket (new).

am3zzb00000523

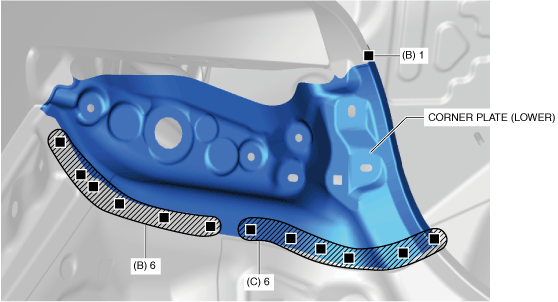

5.Plug welds in the 7 locations in area B shown in the figure.

6.Plug welds in the 6 locations in area C shown in the figure and install the corner plate (lower).

am3zzb00000524

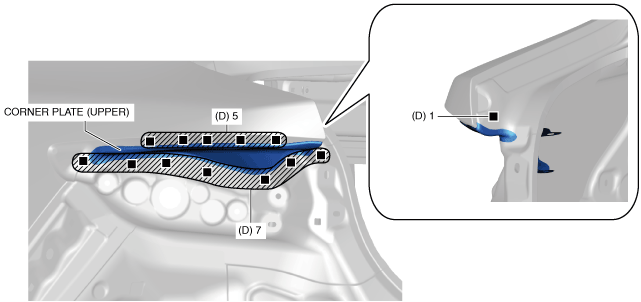

7.Plug welds in the 13 locations in area D shown in the figure and install the corner plate (upper).

am3zzb00000525

5HB

1.When installing new parts, measure and adjust the body as necessary to conform with standard dimensions.

2.Drill holes for the plug welding before installing the new parts.

3.After temporarily installing new parts, make sure the related parts fit properly.

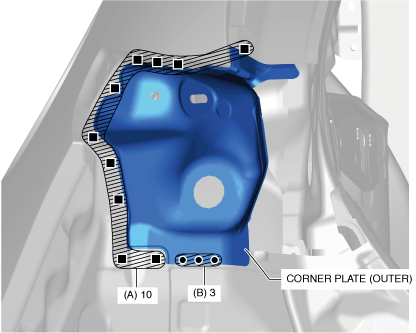

4.Plug welds in the 10 locations in area A shown in the figure.

5.Spot welds in the 3 locations in area B shown in the figure and install the corner plate (outer).

am3zzb00000583

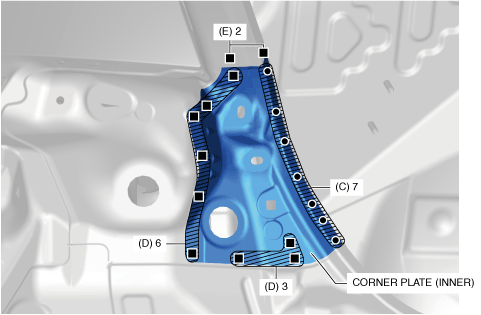

6.Spot welds in the 7 locations in area C shown in the figure.

7.Plug welds in the 9 locations in area D shown in the figure.

8.Plug welds in the 2 locations in area E shown in the figure and install the corner plate (inner).

am3zzb00000584
