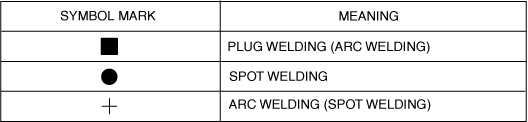

Symbol Mark

am3zzb00000586

Installation Procedure

1.When installing new parts, measure and adjust the body as necessary to conform with standard dimensions.

2.Drill holes for the plug welding before installing the new parts.

3.After temporarily installing new parts, make sure the related parts fit properly.

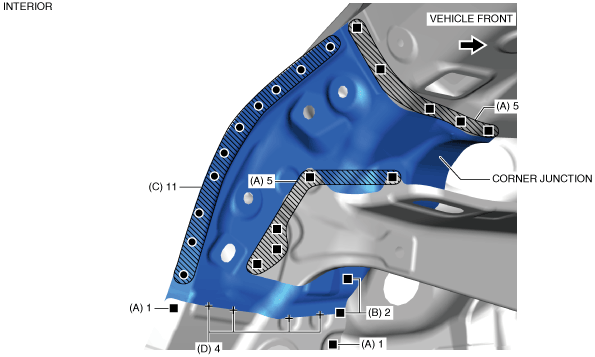

4.Plug welds in the 12 locations in area A shown in the figure from the interior.

5.Plug welds in the 2 locations in area B shown in the figure from the interior.

6.Spot welds in the 11 locations in area C shown in the figure from the interior.

7.Arc spot welds in the 4 locations in area D shown in the figure from the interior and install the corner junction.
