REAR BODY STRAIGHT-LINE DIMENSIONS [DIMENSIONS]
REAR BODY STRAIGHT-LINE DIMENSIONS [DIMENSIONS]
SM2333694
id098010990800
4SD

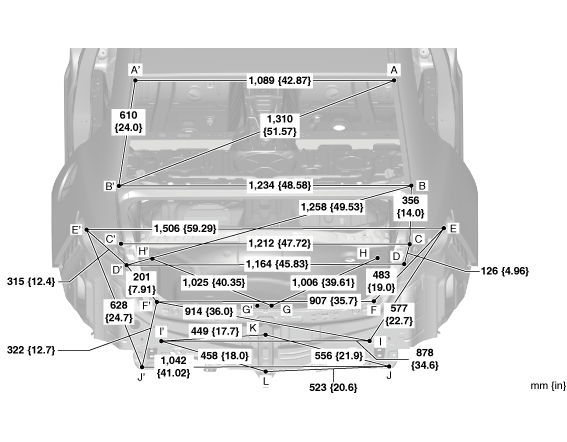

am3zzb00000624
|

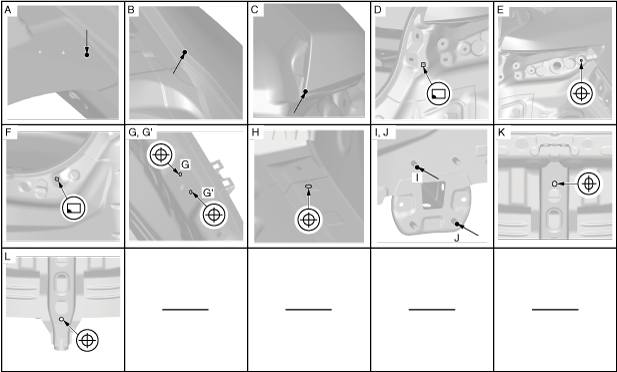

am3zzb00000625
|
|
Point symbol |
Designation |
Hole diameter or bolt or nut size (mm {IN}) |
|---|---|---|
|
A
|
Roof panel projection location
|
—
|
|
B
|
Cabin side frame (outer) (rear fender panel) projection location
|
—
|
|
C
|
Cabin side frame (outer) (rear fender panel) projection location
|
—
|
|
D
|
Rear combination light grommet installation square hole
|
9 x 9
{0.35 x 0.35}
|
|
E
|
Rear combination light installation hole
|
φ8 {0.31}
|
|
F
|
Rear bumper grommet installation square hole
|
9 x 9
{0.35 x 0.35}
|
|
G
|
Trunk lid striker installation hole
|
φ8 {0.31}
|
|
H
|
Rear side frame (upper) datum hole
|
φ12 {0.47}
|
|
I
|
Rear bumper reinforcement installation bolt
|
M10
|
|
J
|
Rear bumper reinforcement installation bolt
|
M10
|
|
K
|
Rear end panel center reinforcement datum hole (upper) (with rear end panel center reinforcement)
|
10 x 14
{0.39 x 0.55}
|
|
L
|
Rear end panel center reinforcement datum hole (lower) (with rear end panel center reinforcement)
|
φ10 {0.39}
|
5HB

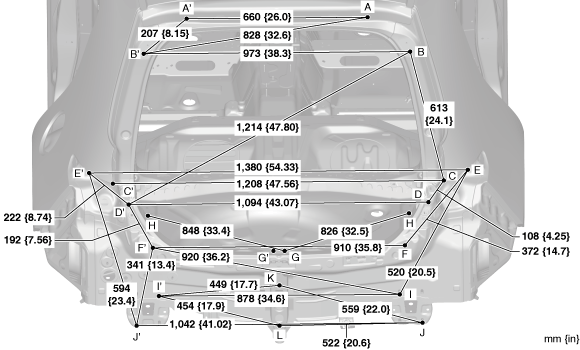

am3zzb00000634
|

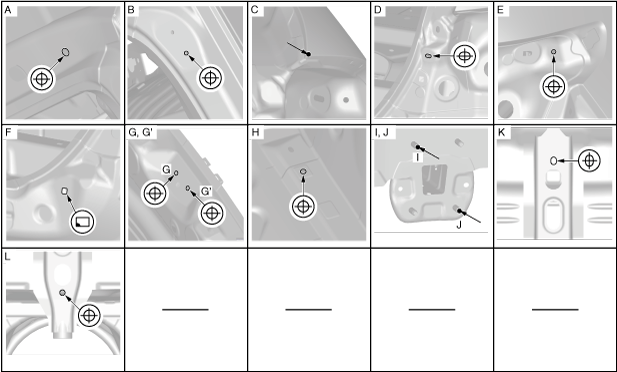

am3zzb00000635
|
|
Point symbol |
Designation |
Hole diameter or bolt or nut size (mm {IN}) |
|---|---|---|
|
A
|
Liftgate hinge installation hole
|
φ14 {0.55}
|
|
B
|
Liftgate stay damper installation hole
|
φ6 {0.24}
|
|
C
|
Cabin side frame (outer) (rear fender panel) projection location
|
—
|
|
D
|
Corner plate datum hole
|
12 x 16
{0.47 x 0.63}
|
|
E
|
Rear combination light installation hole
|
φ8 {0.31}
|
|
F
|
Rear bumper grommet installation square hole
|
9 x 9
{0.35 x 0.35}
|
|
G
|
Liftgate striker installation nut
|
φ8 {0.31}
|
|
H
|
Rear side frame (upper) datum hole
|
φ12 {0.47}
|
|
I
|
Rear bumper reinforcement installation bolt
|
M10
|
|
J
|
Rear bumper reinforcement installation bolt
|
M10
|
|
K
|
Rear end panel center reinforcement datum hole (upper) (with rear end panel center reinforcement)
|
10 x 14
{0.39 x 0.55}
|
|
L
|
Rear end panel center reinforcement datum hole (lower) (with rear end panel center reinforcement)
|
φ10 {0.39}
|
