POWER WINDOW REGULATOR
POWER WINDOW REGULATOR
SM2334194
id091200012500
Purpose
• The power window regulator moves the carrier plate up and down to open/close the door glass using the rotation force transmitted from the power window motor.
Function
• The power window regulator transmits the rotation force from the power window motor to the inner wire and moves the carrier plate up and down.
Construction
• The power window regulator consists of the following parts:
-
― Drum
-
― Regulator guide
-
― Carrier plate
-
― Inner wire
• The inner wire is assembled to the inner side of the regulator guide and wrapped to the drum.
• The carrier plate is fixed to the inner wire.

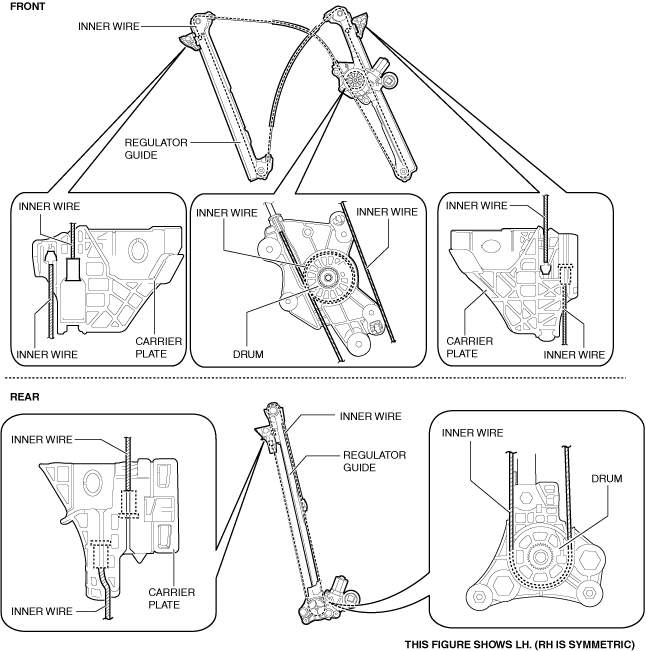

am3zzn00006947
|
Operation
1.When the drum of the power window regulator receives the rotation force from the power window motor, it rotates in the same rotation direction as the power window motor.
2.When the drum rotates, the inner wire is pulled in the direction the drum rotates.

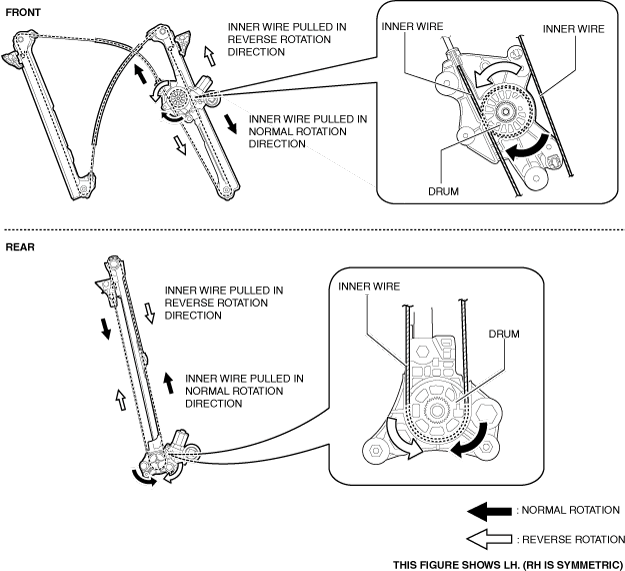

am3zzn00006948
|
3.The carrier plate moves up and down according to the rotational direction of the inner wire.

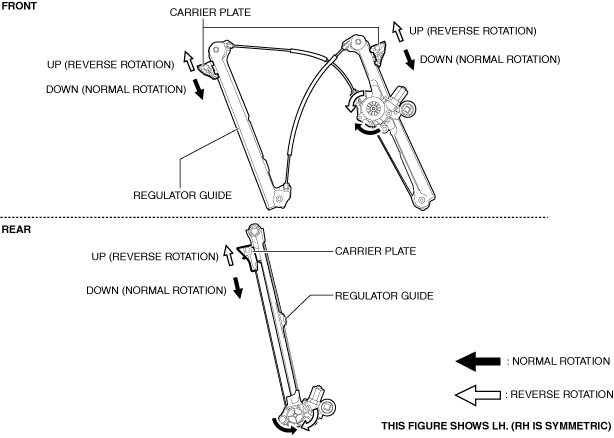

am3zzn00006949
|
