Caution

• Do not use the front and rear tiedown eyelets for towing the vehicle. They have been designed only for securing the vehicle to a transport vessel during shipping. Using the eyelets for any other purpose could result in the vehicle being damaged.

1.Remove the tiedown eyelet and the lug wrench from the luggage compartment.

2.Wrap a flathead screwdriver or similar tool with a soft cloth to prevent damage to a painted bumper, and open the cap located on the front or rear bumper.

Front

4SD

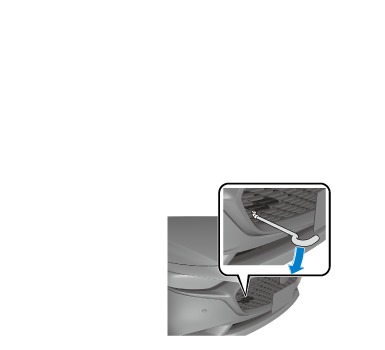

am3zzw00026119

5HB

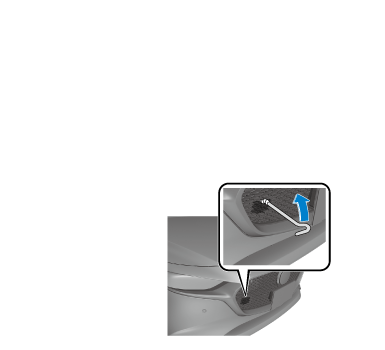

am3zzw00026120

Rear

4SD

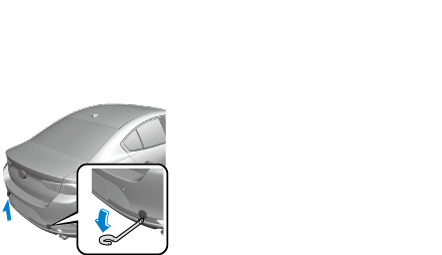

am3zzw00026121

5HB

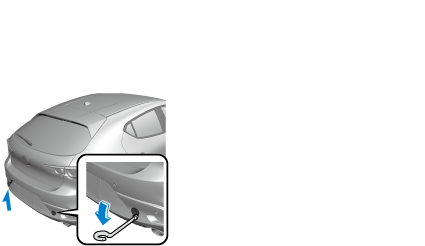

am3zzw00026122

Caution

• Do not use excessive force as it may damage the cap or scratch the painted bumper surface.

Note

• Remove the cap completely and store it so as not to lose it.

3.Securely install the tiedown eyelet using the lug wrench.

Front

4SD

am3zzw00026123

5HB

am3zzw00026124

Rear

4SD

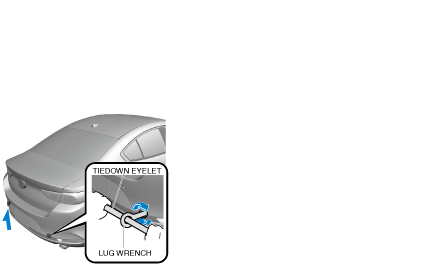

am3zzw00026125

5HB

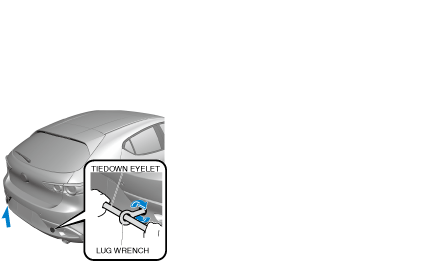

am3zzw00026126

4.Hook the tying rope to the tiedown eyelet.

Caution

• If the tiedown eyelet is not securely tightened, it may loosen or disengage from the bumper when tying the vehicle. Make sure that the tiedown eyelet is securely tightened to the bumper.
