POWER WINDOW SUBSWITCH REMOVAL/INSTALLATION

POWER WINDOW SUBSWITCH REMOVAL/INSTALLATION

SM2336369


id091200002200



Front

1.Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(US)].)

2.Affix the protective tape to the position shown in the figure to prevent scratches and damage.

am3zzw00028833

3.Using a remover tool, remove the tab shown in the figure.

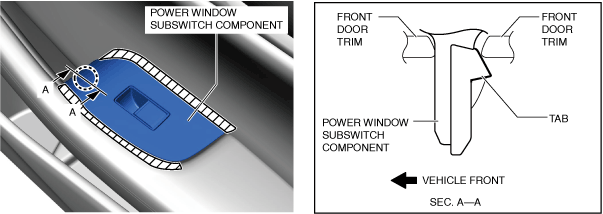

am3zzw00028834

4.Using a remover tool, remove the tabs shown in the figure.

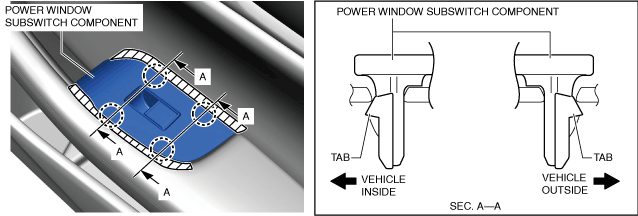

am3zzw00028835

5.Move the power window subswitch component in the direction of the arrow and detach the guide.

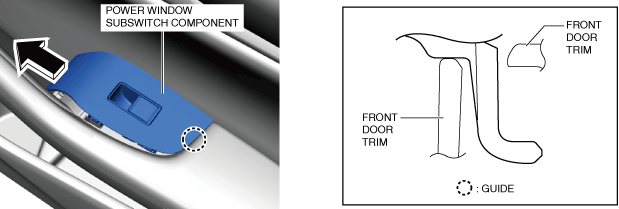

am3zzw00024507

6.Disconnect the connector.

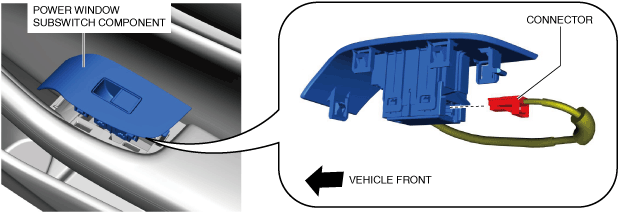

am3zzw00024508

7.Remove the power window subswitch component from the front door trim.

8.Using a tape-wrapped flathead screwdriver, move the power window subswitch cover end in the direction of arrow (1) shown in the figure, and detach the tab while moving the power window subswitch in the direction of arrow (2).

am3zzw00024509

9.Detach the tabs in the same manner as Step 8.

am3zzw00024510

10.Remove the power window subswitch from the power window subswitch cover.

11.Install in the reverse order of removal.



Rear

1.Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(US)].)

2.Affix the protective tape to the position shown in the figure to prevent scratches and damage.

am3zzw00028836

3.Using a remover tool, remove the tab shown in the figure.

am3zzw00028837

4.Using a remover tool, remove the tabs shown in the figure.

am3zzw00028838

5.Move the power window subswitch component in the direction of the arrow and detach the guide.

am3zzw00024512

6.Disconnect the connector.

am3zzw00024513

7.Remove the power window subswitch component from the rear door trim.

8.Using a tape-wrapped flathead screwdriver, move the power window subswitch cover end in the direction of arrow (1) shown in the figure, and detach the tab while moving the power window subswitch in the direction of arrow (2).

am3zzw00024514

9.Detach the tabs in the same manner as Step 8.

am3zzw00024515

10.Remove the power window subswitch from the power window subswitch cover.

11.Install in the reverse order of removal.
