REAR SEAT CUSHION REMOVAL/INSTALLATION

REAR SEAT CUSHION REMOVAL/INSTALLATION

SM2336412


id091300912600

Caution
• When performing the procedure with a rear seat removed from the vehicle, perform the procedure on a clean cloth so as not to damage or soil the seat.

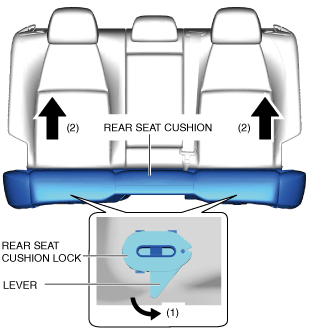

1.With the rear seat cushion lock lever moved in the direction of arrow (1) shown in the figure, lift up the rear seat cushion in the direction of arrows (2).

am3zzw00024031

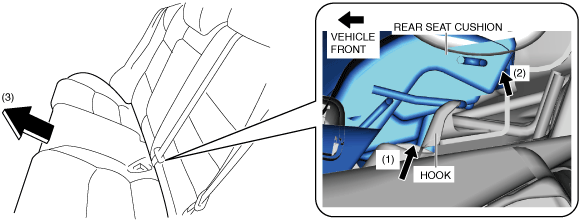

2.With the rear seat cushion lifted, insert your hand into the gap between the rear seat cushion and the rear seat back.

3.Remove the rear seat cushion end in the order of arrows (1) and (2) shown in the figure.

4.Move the rear seat cushion in the direction of arrow (3) shown in the figure and remove it.

am3zzw00036706

5.Install in the reverse order of removal. (See Rear Seat Cushion Installation Note.)



Rear Seat Cushion Installation Note

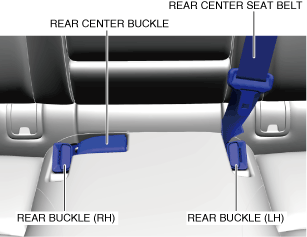

• After installing the rear seat cushion, place the rear buckles at the positions shown in the figure.

am3zzw00036705
