id091600447800

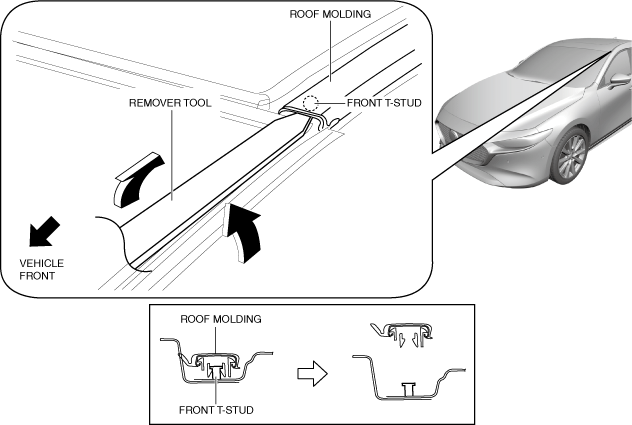

1.Insert a remover tool into the position shown in the figure.

am3zzw00026336

2.Move the remover tool in the direction of the arrows shown in the figure and detach the roof molding from the front T-stud.

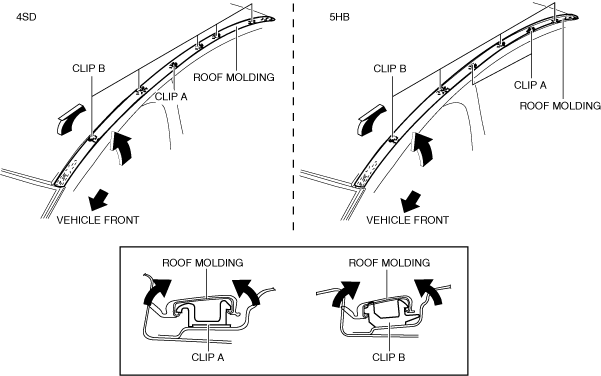

3.Rotate the roof molding in the direction of the arrows shown in the figure and remove it starting from the clips at the front of the vehicle.

am3zzw00026337

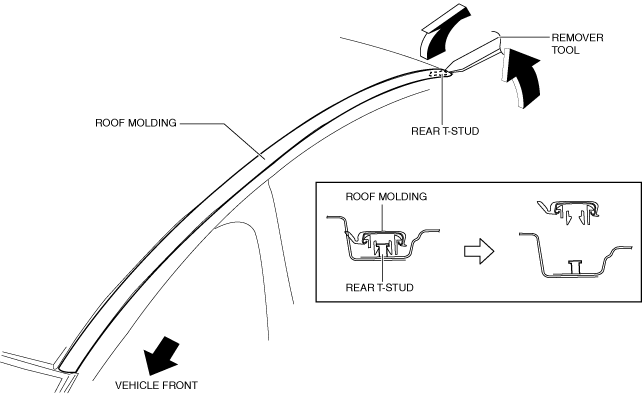

4.Insert a remover tool in the position shown in the figure.

am3zzw00029921

5.Move the remover tool in the direction of the arrows shown in the figure, detach the roof molding from the rear T-stud, and remove the roof molding.

Note

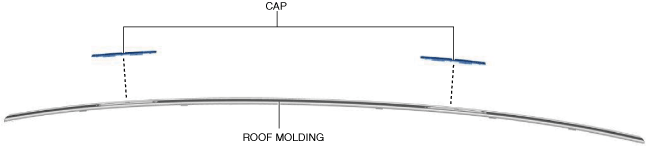

• When replacing the roof molding, remove the caps. (with cap)

am3zzw00026339
