EXTERIOR TRIM LOCATION INDEX
EXTERIOR TRIM LOCATION INDEX
SM2336491
id091600800100

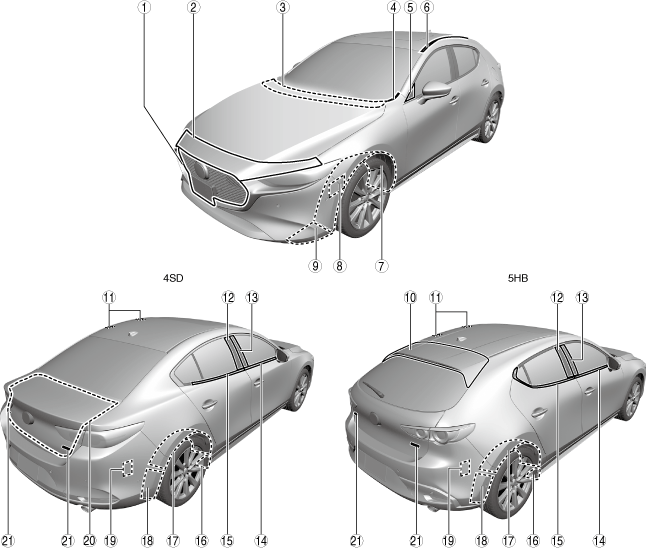

am3zzw00029926
|
|
1
|
Radiator grille
|
|
2
|
Upper face
|
|
3
|
Cowl grille
|
|
4
|
Front fender molding
|
|
5
|
Sail garnish
|
|
6
|
Roof molding
(See ROOF MOLDING REMOVAL.)
(See ROOF MOLDING INSTALLATION.)
|
|
7
|
Front mudguard
|
|
8
|
Front splash shield
|
|
9
|
Front deflector
|
|
10
|
Rear spoiler (5HB)
(See REAR SPOILER REMOVAL.)
(See REAR SPOILER INSTALLATION.)
|
|
11
|
Roof carrier bracket (with roof carrier bracket)
|
|
12
|
Rear door garnish
|
|
13
|
Front door garnish
|
|
14
|
Front beltline molding
|
|
15
|
Rear beltline molding
|
|
16
|
Rear deflector
|
|
17
|
Rear mudguard
|
|
18
|
Rear splash shield
|
|
19
|
Extractor chamber
|
|
20
|
Ornament
(See ORNAMENT INSTALLATION.)
|
am3zzw00029927
|
|
1
|
Front under cover No.1
|
|
2
|
Front under cover No.2
|
|
3
|
Side step molding
(See SIDE STEP MOLDING REMOVAL.)
|
|
4
|
Floor under cover No.1
|
|
5
|
Floor under cover No.2
|
|
6
|
Rear under cover (4SD)
|
