Windshield Washer Hose A

1.Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(US)].)

2.Remove the front mudguard (RH). (See MUDGUARD REMOVAL/INSTALLATION.)

3.Remove the front fender insulator No.1. (See FRONT FENDER INSULATOR No.1 REMOVAL/INSTALLATION.)

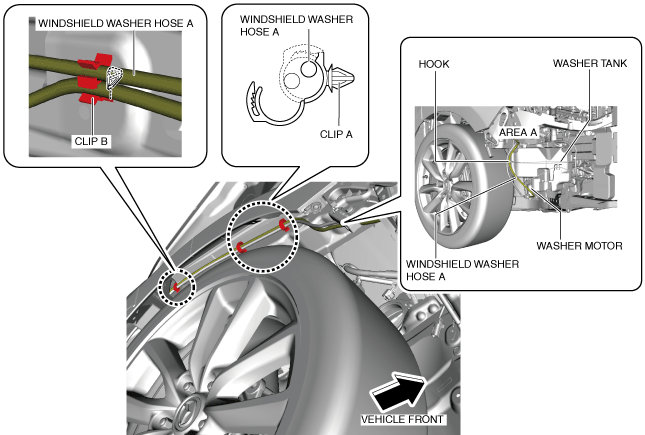

4.Disconnect the windshield washer hose A from the washer motor.

am3zzw00032121

5.Remove the windshield washer hose A from the washer tank hook. (See Windshield washer hose A installation note.)

6.Pull out the windshield washer hose A from area A of the washer tank.

7.Remove the windshield washer hose A from the clips A and B.

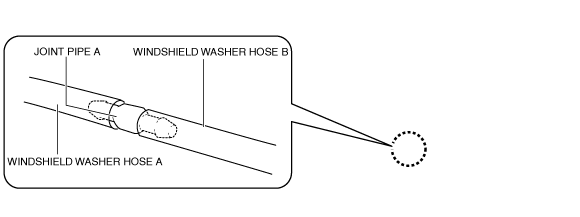

8.Disconnect the windshield washer hose A from the joint pipe A.

am3zzw00027050

9.Remove the windshield washer hose A.

10.Install in the reverse order of removal.

Windshield washer hose A installation note

• When installing windshield washer hose A to the washer tank hook, align the hook with the upper part of the gray mark and install.

am3zzw00027132

Windshield Washer Hose B

1.Disconnect the windshield washer hose B from the joint pipe A.

am3zzw00027050

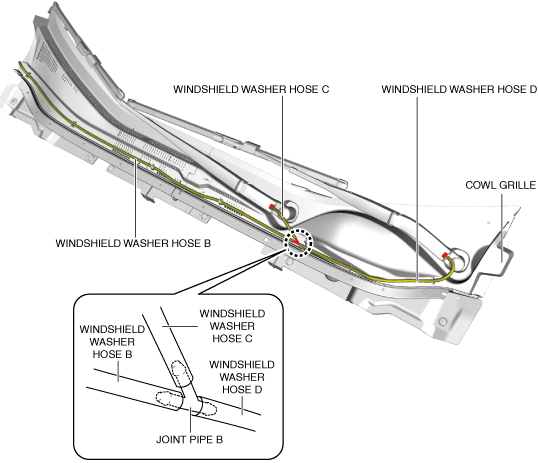

2.Disconnect the windshield washer hose B from the joint pipe B.

am3zzw00032122

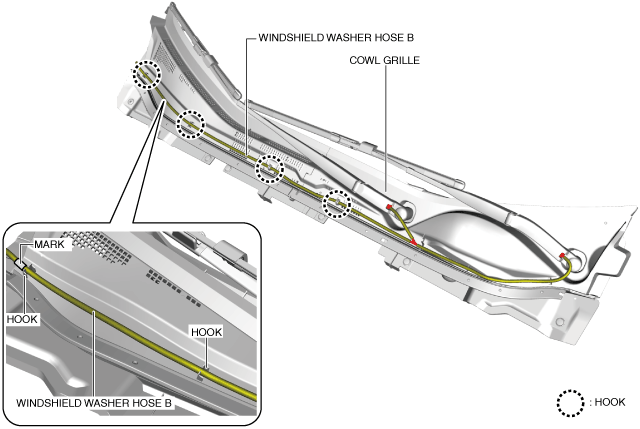

3.Remove the windshield washer hose B from the hooks.

am3zzw00035106

4.Install in the reverse order of removal.

Windshield Washer Hose C and D

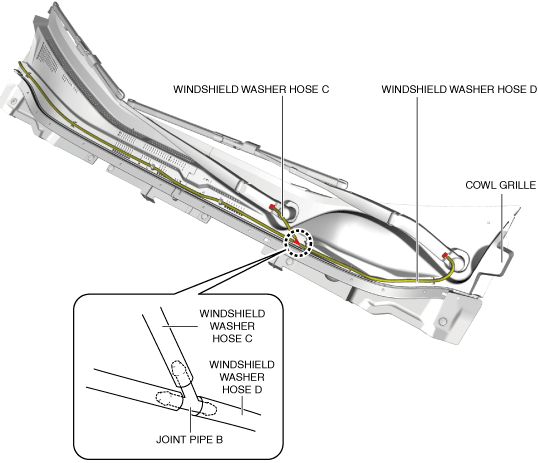

1.Disconnect the windshield washer hose C and D from the joint pipe B.

am3zzw00032123

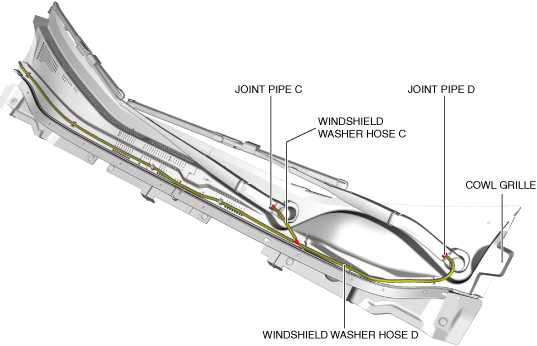

2.Disconnect the windshield washer hose C and D from the joint pipe C and D.

am3zzw00032124

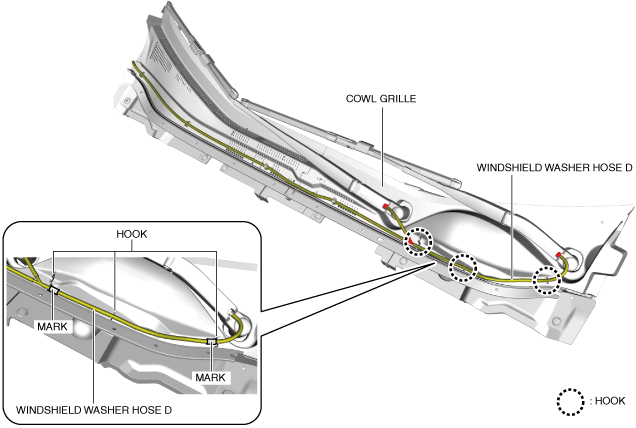

3.Remove the windshield washer hose D from the hooks.

am3zzw00035107

4.Install in the reverse order of removal.
