TWEETER REMOVAL/INSTALLATION
TWEETER REMOVAL/INSTALLATION
SM2336665
id092000808000
1.Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(US)].)
2.Remove the inner garnish. (See INNER GARNISH REMOVAL/INSTALLATION.)

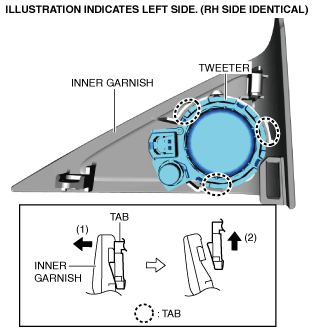

3.Move the inner garnish in the order of arrows (1) and (2) shown in the figure and detach the tabs from the inner garnish.
am3zzw00029179
|

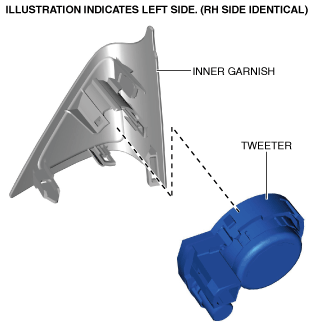

4.Remove the tweeter from the inner garnish.
am3zzw00024101
|
5.Install in the reverse order of removal.
