1.Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(US)].)

2.Remove the following parts:

(1)Front door speaker grille (See SPEAKER GRILLE REMOVAL/INSTALLATION.)

(2)Inner garnish (See INNER GARNISH REMOVAL/INSTALLATION.)

(3)Power window main switch (to remove from driver’s side) (See POWER WINDOW MAIN SWITCH REMOVAL/INSTALLATION.)

(4)Power window subswitch (to remove from passenger’s side) (See POWER WINDOW SUBSWITCH REMOVAL/INSTALLATION.)

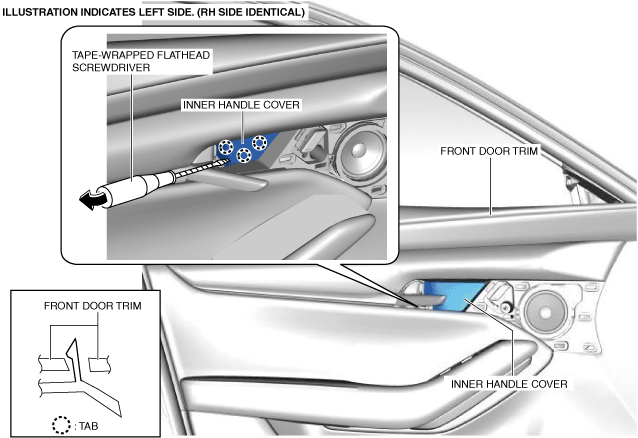

3.Insert a tape-wrapped flathead screwdriver into the position shown in the figure, move it in the direction of the arrow and remove the inner handle cover while detaching the tabs.

am3zzw00021843

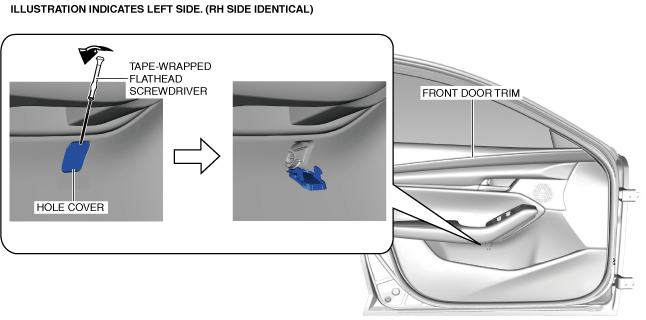

4.Insert a tape-wrapped flathead screwdriver into the position shown in the figure, move it in the direction of the arrow and remove the hole cover.

am3zzw00024063

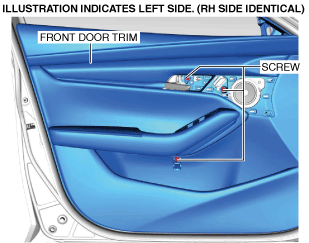

5.Remove the screws.

am3zzw00021844

6.Hold each shaded area and pull the front door trim in the order of arrows (1), (2), (3), and (4), and detach the clips and pin.

am3zzw00027673

7.Lift up the front door trim in the direction of the arrow shown in the figure being careful not to open the lower end of the front door trim excessively, and remove the front door trim from the clip.

am3zzw00021846

8.Remove the front door trim.

9.Disconnect the door lock switch connector.

am3zzw00027674

10.While pressing the tabs of the clip in the directions of arrows (1) shown in the figure, pull the clip in the direction of arrow (2) to remove the clip from the front door.

am3zzw00021847

11.Install the clip removed in Step 10 to the front door trim.

am3zzw00021848

12.Install in the reverse order of removal.
