DRIVE SELECTION SWITCH REMOVAL/INSTALLATION
DRIVE SELECTION SWITCH REMOVAL/INSTALLATION
SM2334883
id012100100200
1.Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(US)].)
2.Remove the selector lever knob. (See SELECTOR LEVER COMPONENT REMOVAL/INSTALLATION.)
3.Remove the shift panel. (See SHIFT PANEL REMOVAL/INSTALLATION.)
4.Remove in the order indicated in the table.
5.Install in the reverse order of removal.

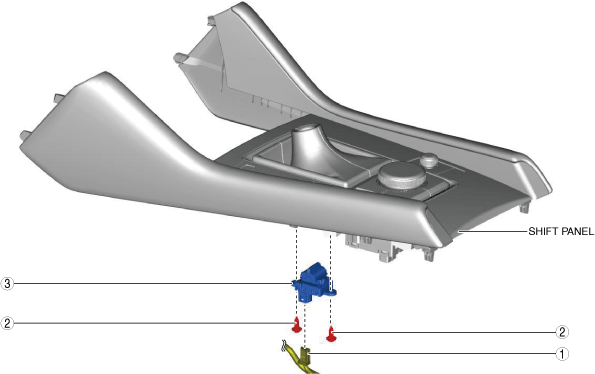

am3zzw00021629
|
|
1
|
Drive selection switch connector
|
|
2
|
Screw
|
|
3
|
Drive selection switch
|
