1.Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(US)].)

2.Remove the following parts:

1. Outer mirror glass. (See OUTER MIRROR GLASS REMOVAL.) (See OUTER MIRROR GLASS INSTALLATION.)

2. Upper outer mirror garnish. (See OUTER MIRROR GARNISH REMOVAL/INSTALLATION [(US)].)

3. Lower outer mirror garnish. (See OUTER MIRROR GARNISH REMOVAL/INSTALLATION [(US)].)

4. Side camera. (See SIDE CAMERA REMOVAL/INSTALLATION.)

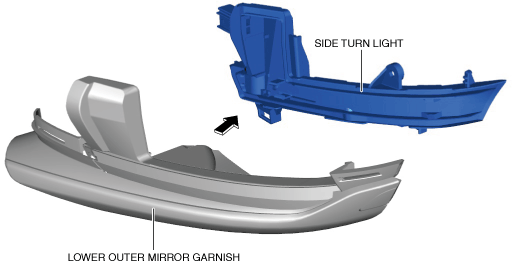

3.Pull the side turn light in the direction of the arrow shown in the figure and remove the side turn light.

am3zzw00032515

4.Install in the reverse order of removal.

5.Perform the 360°view monitor system aiming. (With 360° view monitor system) (See 360°VIEW MONITOR SYSTEM AIMING.)
