1.Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(US)].)

2.Remove the following parts:

(1)Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)

(2)C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION.)

(3)Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION.)

(4)Rear seat back (See REAR SEAT BACK REMOVAL/INSTALLATION.)

(5)Tire house trim (See TIRE HOUSE TRIM REMOVAL/INSTALLATION.)

3.Remove the fasteners.

am3zzw00031666

4.Move the rear package trim in the direction of the arrows shown in the figure, detach the clips and pin from the body panel.

am3zzw00021861

5.Pull up the rear package trim in the direction of arrow (1) shown in the figure while remove the hooks, pull the rear package trim in the direction of arrow (2), and remove it.

am3zzw00021862

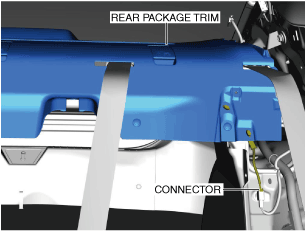

6.Disconnect the connector.

am3zzw00021863

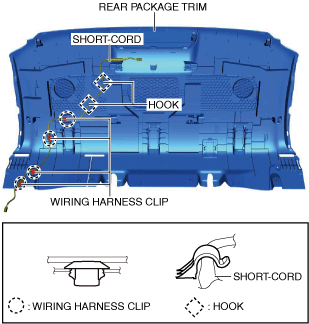

7.Remove the wiring harness clips.

am3zzw00021864

8.Remove the short-cord from the hooks.

9.Install in the reverse order of removal.

Note

• When replacing the rear package trim, remove the high-mount brake light. (See HIGH-MOUNT BRAKE LIGHT REMOVAL/INSTALLATION.)
