With Passenger-side Knee Air Bag Module

1.Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(US)].)

2.Remove the following parts:

(1)Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION.)

(2)Passenger-side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

(3)Passenger-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

(4)Passenger-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

(5)Passenger-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION [(US)].)

3.Disconnect the connectors.

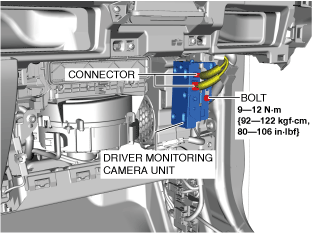

am3zzw00022261

4.Remove the bolt.

5.Remove the driver monitoring camera unit.

6.Remove the screws.

am3zzw00022262

7.Remove the bracket.

8.Remove the driver monitoring camera unit.

9.Install in the reverse order of removal.

Without Passenger-side Knee Air Bag Module

1.Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(US)].)

2.Remove the glove compartment. (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)

3.Disconnect the connectors.

am3zzw00027948

4.Remove the bolt.

5.Remove the driver monitoring camera unit.

6.Remove the screws.

am3zzw00022262

7.Remove the bracket.

8.Remove the driver monitoring camera unit.

9.Install in the reverse order of removal.
