PARKING ASSIST UNIT (OPTICAL) REMOVAL/INSTALLATION [(US)]
PARKING ASSIST UNIT (OPTICAL) REMOVAL/INSTALLATION [(US)]
SM2566428
id0920008413x1
1.Remove the front seat under cover. (with power seat) (See FRONT SEAT REMOVAL/INSTALLATION [(US)].)
2.Slide the front seat (LH) rearward.

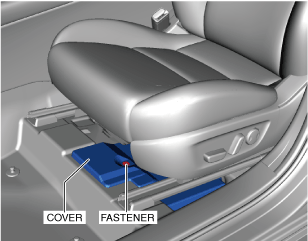

3.Remove the fastener.
am3zzw00031129
|
4.Slide the front seat (LH) forward.

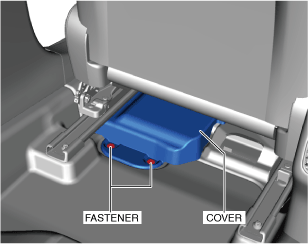

5.Remove the fasteners.
am3zzw00022249
|
6.Remove the cover.
7.Slide the front seat (LH) rearward.

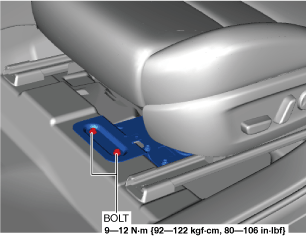

8.Remove the bolts.
am3zzw00022270
|
9.Slide the front seat (LH) forward.
10.Remove the bolt.
am3zzw00031130
|
11.Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(US)].)

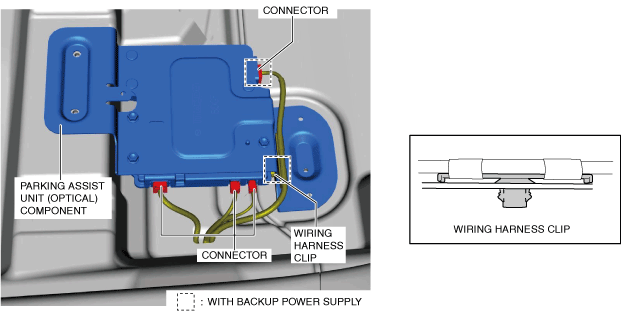

12.Disconnect the connectors.
am3zzw00031131
|
13.Remove the parking assist unit (optical) component.

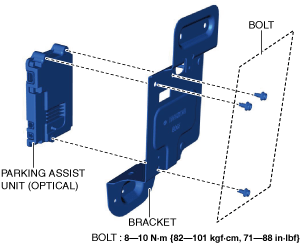

14.Remove the bolts.
am3zzw00031132
|
15.Remove the bracket.
16.Remove the parking assist unit (optical).
17.Install in the reverse order of removal.
