AUDIO AMPLIFIER REMOVAL/INSTALLATION
AUDIO AMPLIFIER REMOVAL/INSTALLATION
SM2336656
id092000801100
1.Remove the front seat under cover. (with power seat) (See FRONT SEAT REMOVAL/INSTALLATION [(US)].)
2.Slide the seat rearward (RH).
3.Remove the fastener.
am3zzw00024076
|
4.Slide the seat forward (RH).
5.Remove the fastener.
am3zzw00024077
|
6.Remove the cover.
7.Remove the bolt.
am3zzw00024078
|
8.Slide the seat rearward (RH).
9.Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(US)].)
10.Remove the bolts.
am3zzw00024079
|

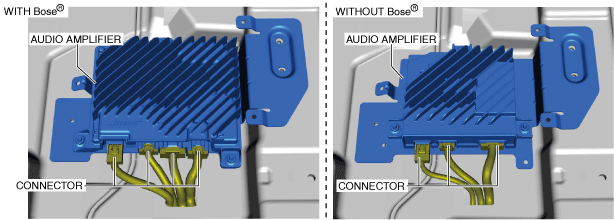

11.Disconnect the connectors.
am3zzw00024080
|
12.When removing the bracket, perform the following procedure:
- (1)Remove the nuts.
-
am3zzw00024081
- (2)Remove the bracket.
13.Install in the reverse order of removal.
