DEFLECTOR REMOVAL/INSTALLATION
DEFLECTOR REMOVAL/INSTALLATION
SM2336509
id091600900500
Front Deflector
1.Remove the bolts and fastener.
LH
am3zzw00026352
|
RH
am3zzw00026353
|
2.Partially peel back the front under cover No.2.
3.Remove the screw.
am3zzw00026354
|
4.Remove the fasteners and screws.
am3zzw00026355
|
5.Remove the front deflector.
6.Install in the reverse order of removal.

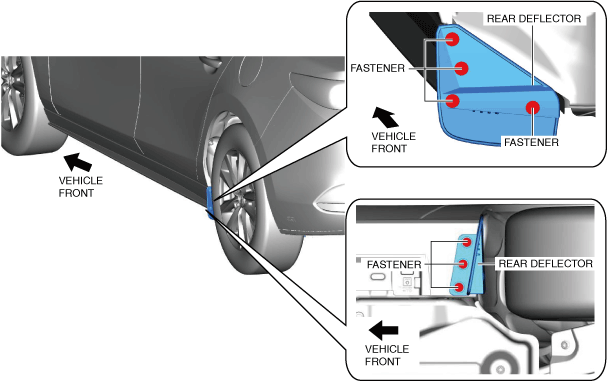

Rear Deflector
1.Remove the fasteners.
am3zzw00026356
|
2.Remove the rear deflector.
3.Install in the reverse order of removal.
