CYLINDER BLOCK DISASSEMBLY (I)
CYLINDER BLOCK DISASSEMBLY (I)
SM2841680
id011000500600
Special Service Tool (SST)
|
49 E011 1A0
Ring gear brake set
|
 |

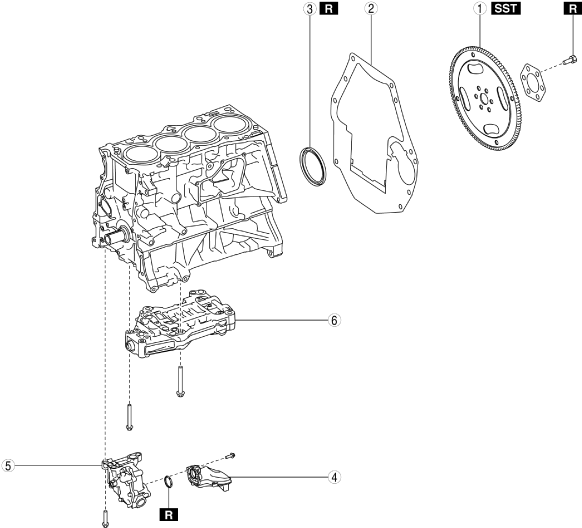

1.Disassemble in the order indicated in the table.
btstze00000005
|
|
1
|
Drive plate
|
|
2
|
End plate
|
|
3
|
Rear oil seal
|
|
4
|
Oil strainer
|
|
5
|
Oil pump
|
|
6
|
Balancer unit
|
Drive Plate Installation Bolt Disassembly Note
1.Hold the crankshaft using the SST.
btstze00000006
|
2.Loosen the bolts uniformly and gradually in the order shown in the figure.
Rear Oil Seal Disassembly Note
1.Cut the rear oil seal lip using a utility knife.
2.Remove the rear oil seal using a flathead screwdriver with the tip protected by a clean cloth to prevent damage to the crankshaft.
btstze00000007
|
