SECONDARY SHAFT COMPONENT DISASSEMBLY
SECONDARY SHAFT COMPONENT DISASSEMBLY
SM2841726
id051500169100

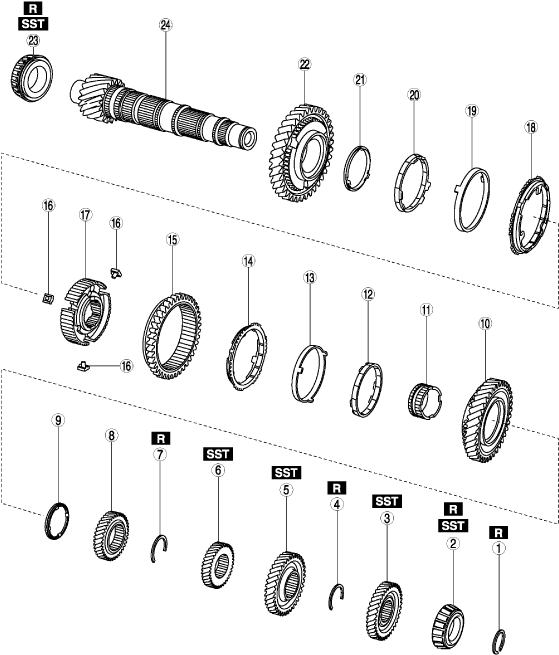

1.Disassemble the secondary shaft component in the order shown in the figure.
bc61um00000037
|
|
1
|
Clip
|
|
2
|
Tapered roller bearing
|
|
3
|
Secondary 4th gear
|
|
4
|
Clip
|
|
5
|
Secondary 3rd gear
|
|
6
|
Secondary 6th gear
|
|
7
|
Clip
|
|
8
|
Secondary 5th gear
|
|
9
|
Friction damper
|
|
10
|
Secondary 2nd gear
|
|
11
|
Gear sleeve
|
|
12
|
Inner cone ring
|
|
13
|
Middle cone ring
|
|
14
|
Synchronizer ring
|
|
15
|
Clutch hub sleeve
|
|
16
|
Synchronizer key
|
|
17
|
Clutch hub
|
|
18
|
Synchronizer ring
|
|
19
|
Middle cone ring
|
|
20
|
Inner cone ring
|
|
21
|
Friction damper
|
|
22
|
Secondary 1st gear
|
|
23
|
Tapered roller bearing
|
|
24
|
Secondary shaft
|
Tapered Roller Bearing (Transaxle Case Side), Secondary 4th Gear Removal Note
1.Set the SSTs and secondary shaft component in a press.
bc61um00000038
|
2.Remove the tapered roller bearing and secondary 4th gear simultaneously using the press.
Secondary 3rd Gear, Secondary 6th Gear Removal Note
1.Set the SST and secondary shaft component in a press as shown in the figure.
bc61um00000039
|
2.Remove the secondary 3rd gear and secondary 6th gear using the press.
Secondary 5th Gear Removal Note
1.Set the secondary shaft component in a press as shown in the figure.
bc61um00000040
|
2.Remove all parts from the secondary 5th gear to the secondary 1st gear simultaneously using the press.

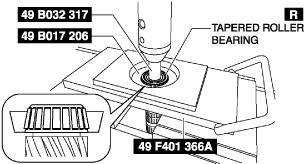

Tapered Roller Bearing (Clutch Housing Side) Removal Note
1.Set the SSTs and secondary shaft component in a press as shown in the figure.
bc61um00000041
|
2.Remove the tapered roller bearing using the press.
